Monitor Buttons
Timing
A summary consisting of the most relevant alarm/error indications is
displayed constantly. By touching the summary, you can launch a display
that contains all alarms/errors.
At the bottom of the status area are the following buttons that give you
access to various monitor information. By touching a button, you can launch
the corresponding information display.
SyncE
IEEE 1588v2
OAM
OH Capture
Frame Capture
Transceiver
6.1.3.2 Physical Details

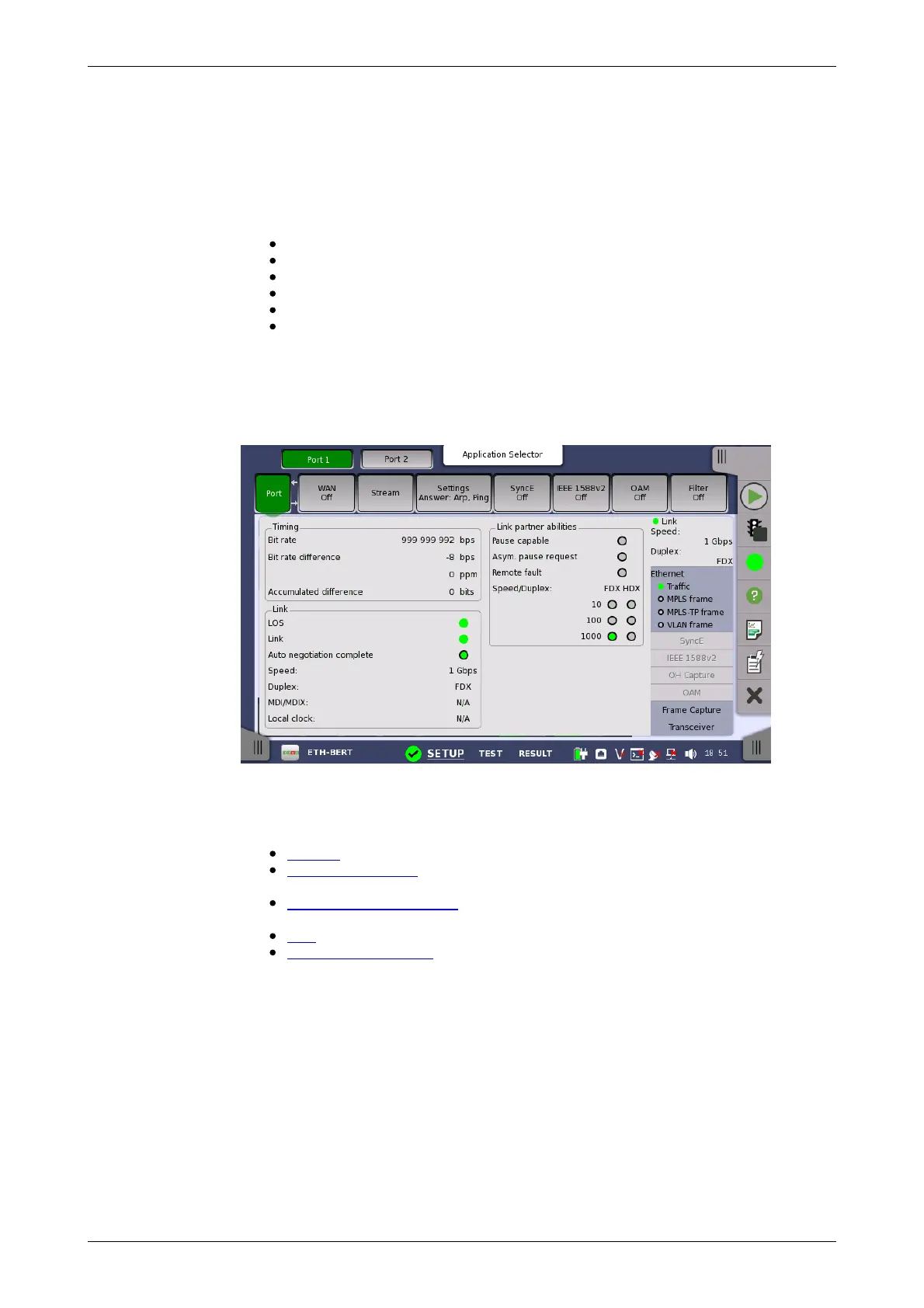

Touching the topmost summary box in the status area of the Ports Setup
screen displays the status shown below.
This screen presents detailed information about the current physical status
of the received signal at the Ethernet interface.
The physical status information consists of the following parameters:
Bit rate, which shows the current bit rate.
Bit rate difference, which shows the difference in bit rate between
received signal and reference source signal.
Accumulated difference, which shows the accumulated bit rate difference
between the received signal and the reference source signal.
Link, which shows the link status of Ethernet.
Link partner abilities, which shows the abilities of the opposite interface
port. (Only available for Electrical)
Bit rate
The currently received bit rate is shown in bits per second (bps).
Bit rate difference
The current difference between the received signal and the reference
source signal is shown in both parts per million (ppm) and bits per second
(bps).
Accumulated difference
The accumulated difference between the received signal and the reference
source signal is shown. The information is presented as number of bits of
difference detected over the accumulation period.
