Test Duration
Threshold
Number of attempts
Used to specify the maximum number of times that Ping packets with each
TTL value are transmitted. If no ICMP type 11 or ping reply is received after
this number of attempts, the test will move on to a higher TTL value.
Max number of hops
Used to specify the maximum number of hops performed in the test. The
test will gradually increment the TTL value until a regular ping reply is
received. If no ping reply is received before this number of hops, the test will
stop.
Ping each hosts
Used to specify the number of times each host is pinged to determine the
RTT. For each hop that responds with ICMP 11 type packets, and for the
desired destination, this number of Ping packets is sent.
Timeout
Used to specify the timeout limit for Ping packets sent by the test.
6.12.3 Test Results
6.12.3.1 Summary

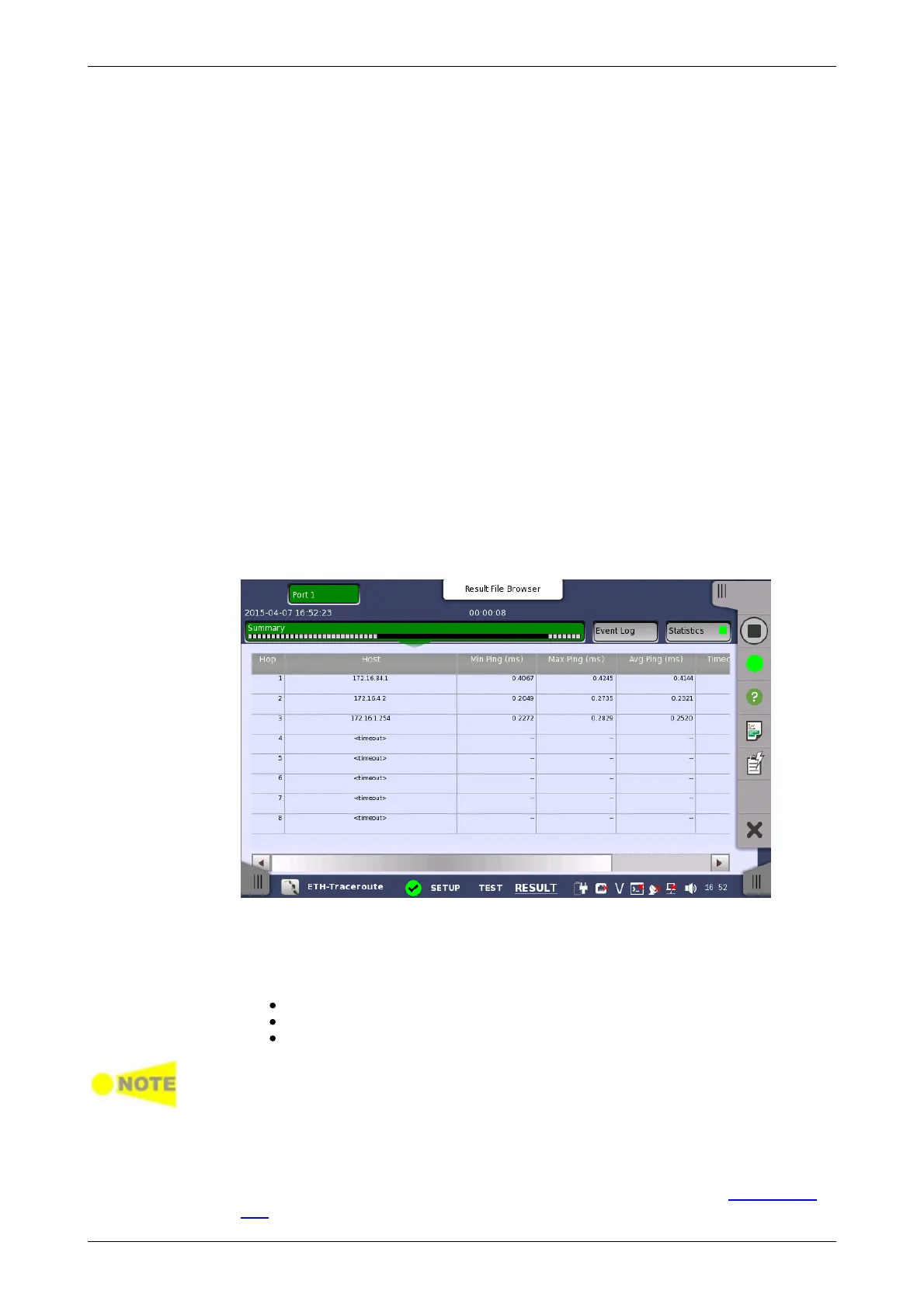

When you go to the test results of the Ethernet Traceroute test, the following
screen is displayed.
This screen shows the status/results of a running Traceroute test, or the
results of the most recently completed test.
Each row in the table represents a hop in the chain of host servers of the
traceroute. For each hop/host the following information is shown:
The IP address of the host
The Min., Max. and Average ping RTTs
The number of ping timeouts during the determination of the RTT
In the results table for a successfully completed test, the last row will represent
the destination of the traceroute.
6.12.3.2 IEEE1588v2 Log
If Ext. log is selected in IEEE1588v2 screen of Ethernet Frame Setup, the
IEEE1588v2 Log button appears in the navigation area. Refer to IEEE1588v2
Log in "BERT" for the operation.
