Frame Setup
The configuration options available in the setup area of the screen are
described below. The status information is described in a separate section.
Touch the button to select the interface.
Off: No signal input interface.
SFP/SFP+: Available bit rate is up to 2.5 Gbit/s for SFP, up to 10 Gbit/s
for SFP+.
Displays the Transceiver information.
7.1.2.2 OTUk Frame Setup

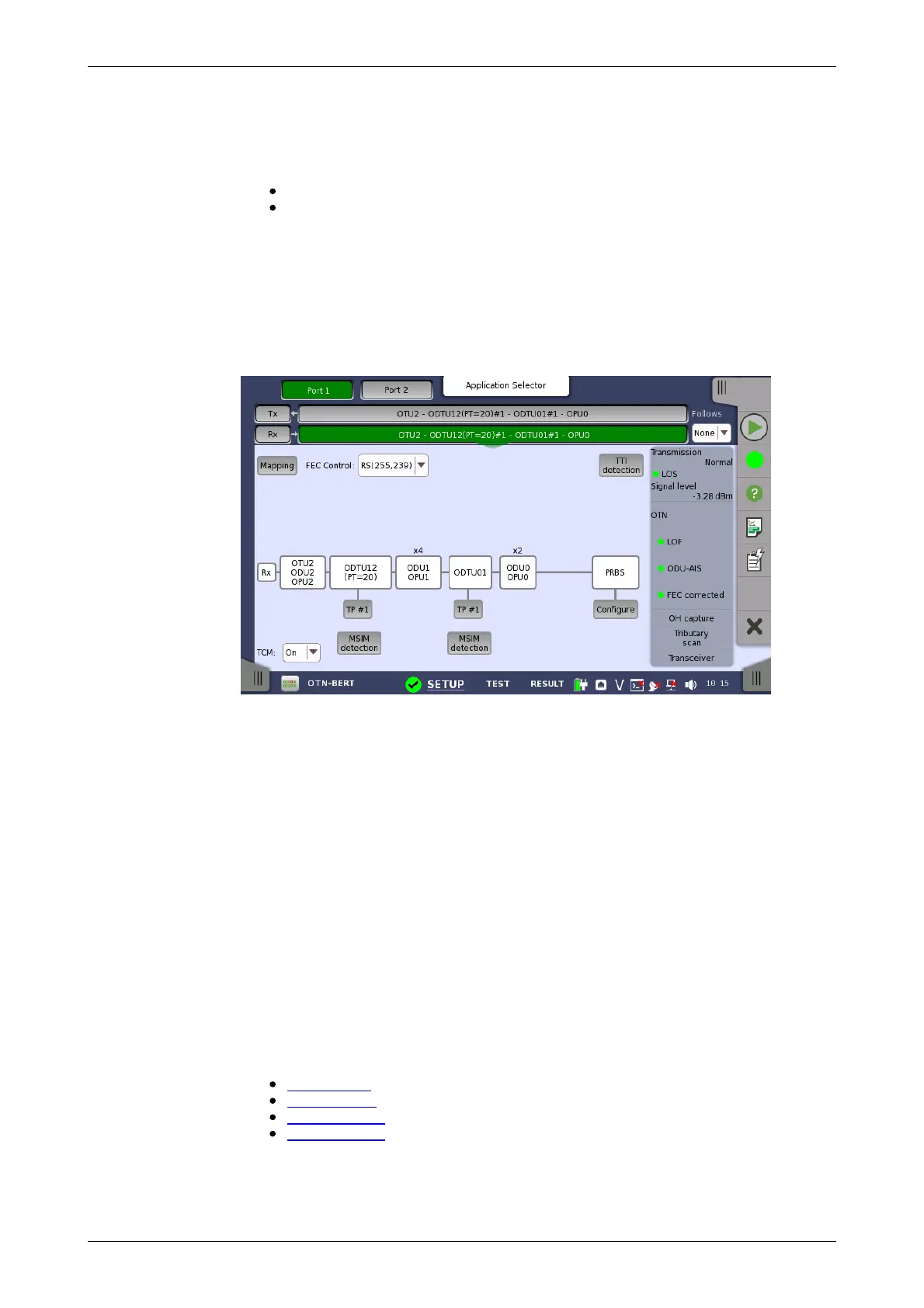

Touching the navigation area button which represents the receiver's OTN
layer will launch the screen shown below.
This screen allows you to configure OTUk frame of the currently selected
receiver. It can also be used to inspect the current status of the selected port
in a separate screen.
To setting up the OTU frame, touch Mapping button at first. Then select the
relevant values for the various containers in the structure shown in the setup
area, either by opening a drop-down menu or by touching a button to launch
an editor dialog box.
Note that the changes you make will be reflected in the text displayed in the
OTUk button in the navigation area.
To make the currently selected receiver follow either the transmitter or Port
1 receiver (i.e. copy its settings), touch the right-most button in the
navigation area and select the relevant value in the drop-down menu. The
receiver settings continue to follow the change of either the transmitter or
Port 1 receiver. The default setting is Tx. Note that the Port 1 receiver cannot
follow the Port 2 receiver.
Mapping
Touch the Mapping button and use the launched Dialog box to define the
OTUk frame mapping. The following settings are available:
Input Signal
Client Signal
Multiplexing 1
Multiplexing 2
See a description of the setting options in the Mapping section under setup
of transmitter.
