6.4.3 Test Results
6.4.3.1 Summary

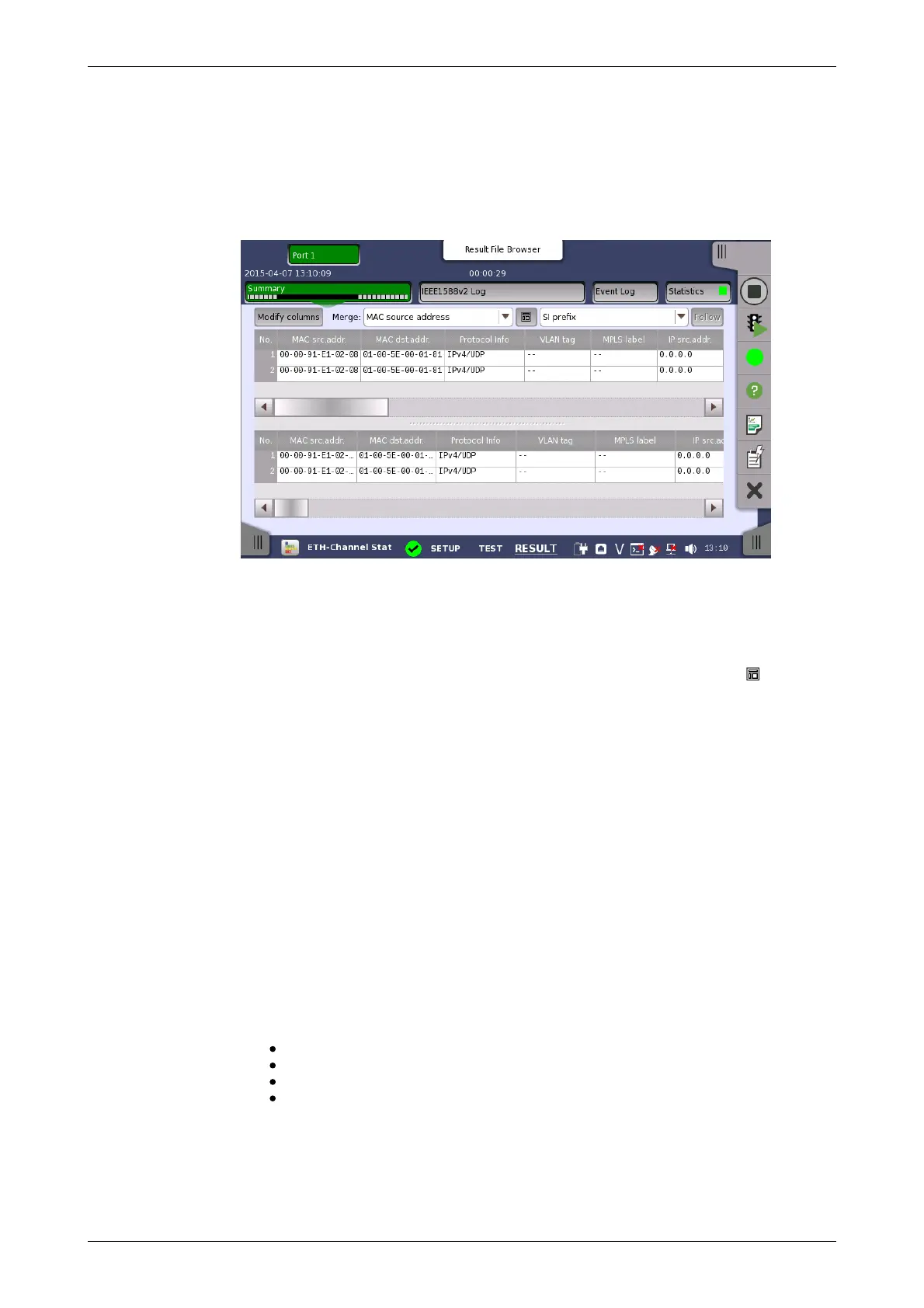

Touching the Summary button in the navigation area will display the screen
shown below.
This screen presents the results of the Channel Statistics test. The screen
contains two lists, one which lists the created channels and another which
shows the results for each channel. Each channel is shown as a row in the
two lists.
The lists can be shown either above each other (with the channels list on
top) or beside each other (with the channels list to the left). Use the button
in the top row of fields and buttons to switch between the two layouts.
To get a better overview of a certain aspect of the received traffic, you can
combine channels using the Merge functionality.
Open the Merge drop-down menu to combine all channels where one
specific definition value (e.g. the source MAC address) is identical. The drop-
down menu contains all currently active definitions.
When the test results are shown in merged mode, definitions that are not
uniquely defined will be hidden, so that only the merge criterion, channel
number, and protocol information will be visible. The protocol information
field, which shows which protocols are detected in a channel, will in merged
mode show all protocols present in the frames contained in the merged
channel.
Unlike the setup of active definitions, the merge setting works on already
collected channels - that is, it does not affect how the system separates
channels, and it will work on both running, stopped and loaded tests.
Select the required notation for the results from the notation drop-down
menu.
Unformatted - e.g. 71892
SI prefix - e.g. 71.892 k (k means "kilo")
Engineering - e.g. 71.892E3
Scientific - e.g. 7.1892E4
To select which columns are shown in the two lists, touch the Modify
columns button. This will launch the Modify shown columns dialog box.
