Rx
Tx

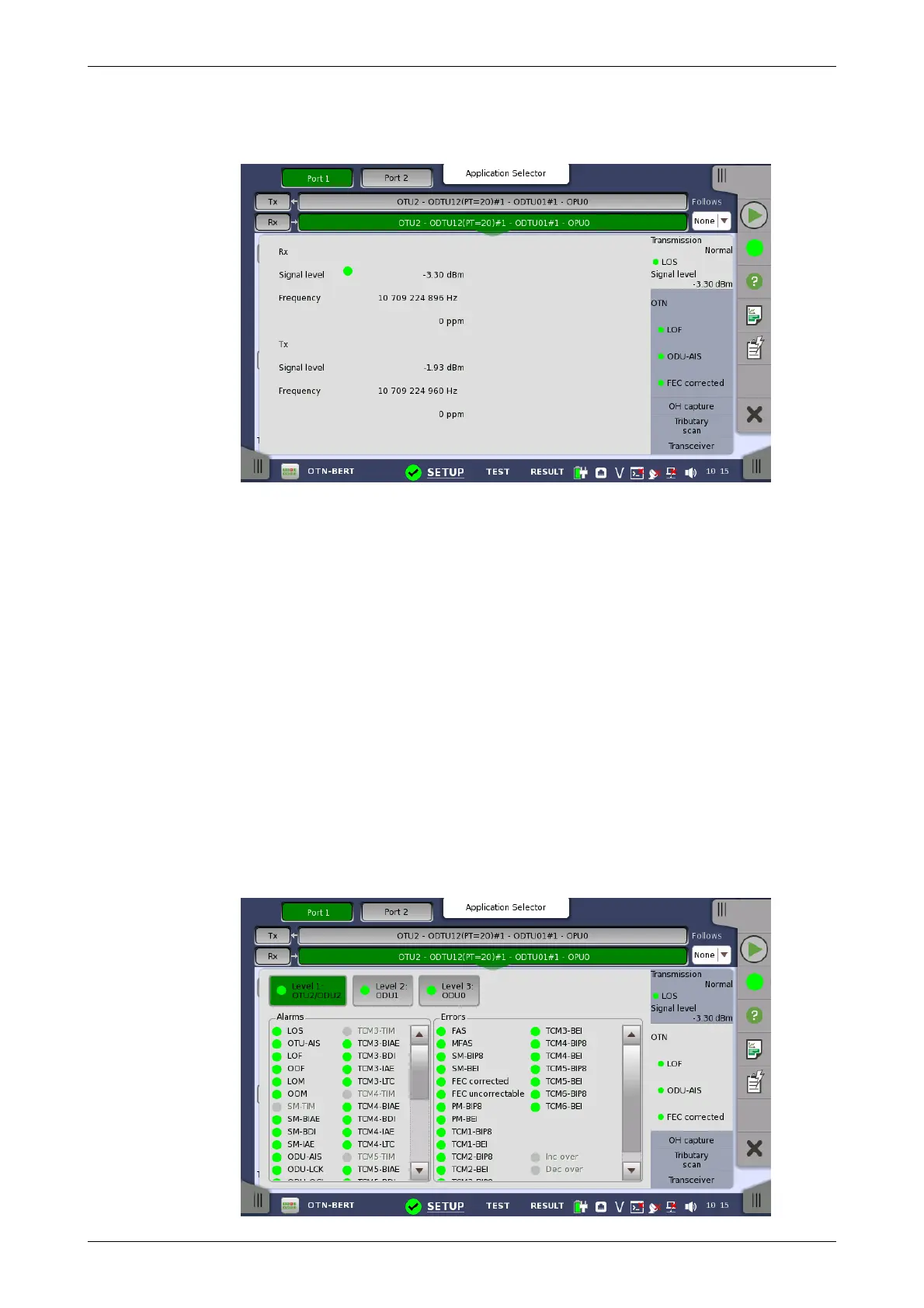

Touching the topmost summary box in the status area of the Ports Setup
screen displays the status shown below.
This screen presents detailed information about the current physical status
of the optical signal.
Signal Level
Shows the input level of an optical signal. A lamp icon indicates the LOS
state.
Frequency
Shows the input signal frequency and the deviation of the input signal from
the nominal bit rate in ppm.
Signal Level
Shows the output level of an optical signal.
Frequency
Shows the output signal frequency and the deviation of the output signal
from the nominal bit rate in ppm.
7.1.3.3 Alarms and Errors
Touching the middle summary box in the status area of the Ports Setup
screen displays the status shown below.
