4.2 Toolbars
Two toolbars are available on the right-hand side of the screen: the desktop
toolbar (called the Instrument toolbar) and the expandable workspace
toolbar (called the Application toolbar).
The Instrument toolbar contains general system functions and
information (e.g. Instrument configuration, Battery time etc.). It is available
directly on the screens related to the desktop, but can also be accessed
on the workspace-related screens as a "sub-toolbar" inside the
application toolbar.
The Application toolbar contains application-related functions and
information (e.g. Start/Stop test, Test progress etc.). It is available on the
screens related to a specific application (i.e. all workspace-related
screens), with the Instrument toolbar as a sub-toolbar.
4.2.1 Instrument Toolbar

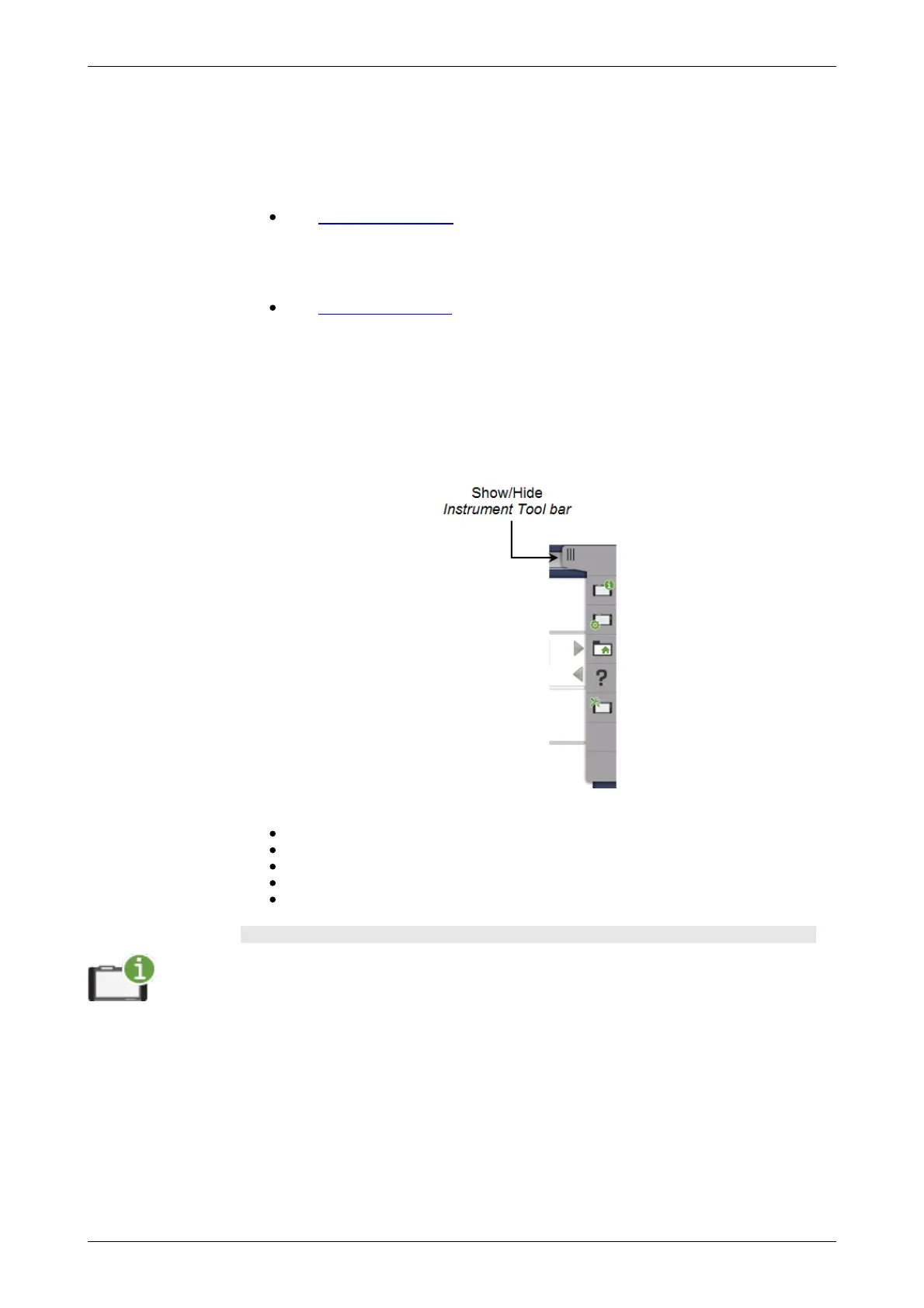

The Instrument toolbar is shown in the figure below. When the toolbar is
hidden, it is represented by its icon tab in the top right-hand corner of the
screen.
The Instrument toolbar contains the following functions/status:
Instrument information
Configuration
File manager
Help
Resource monitoring
Instrument information
The Information icon launches the System Information screen. Touch the
Update About Info button to generate the instrument information.
