3.2 Key Operation
The only physical operator key (the Power button) is described in this
section.

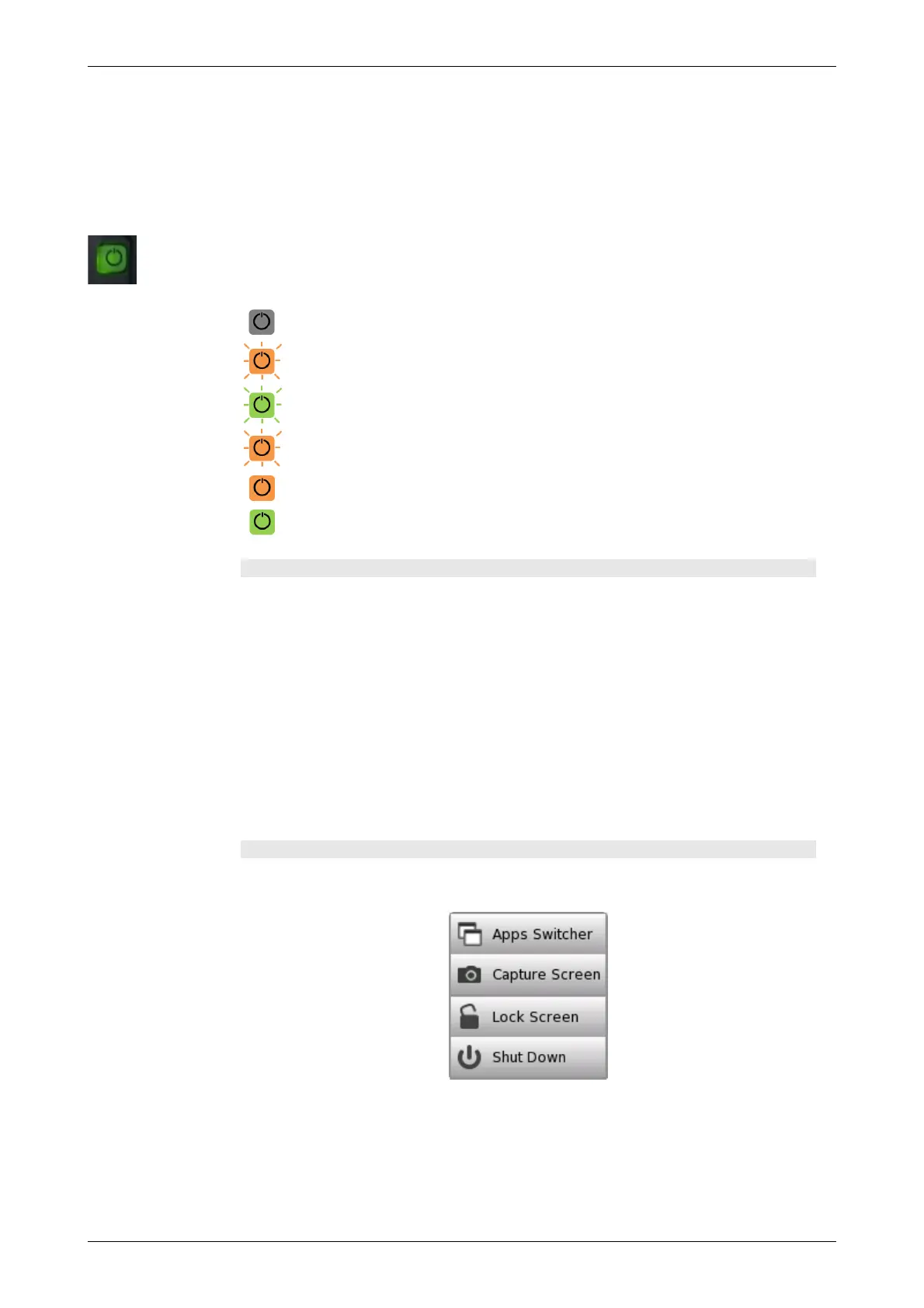

3.2.1 Power Button
The Power button on the front panel of the instrument is used to switch power
ON and OFF. In addition, the menu used for power-off also contains a few extra
options (e.g. to lock the screen).
Gray: Power off
Orange flashing (fast): Booting in case of AC operation
Green flashing: Booting in case of the battery operation
Orange flashing (slow): Charging
Orange: Stand by
Green: Operating
Switching power ON
AC Operation
Connect the mains power adapter to the Network Master. The Network Master
flashes the power button in orange during booting. The power button lights in
orange after booting.
To start your test, press the power button. The power button lights in green.
After a model name is displayed, the Network Master enters Operating status
and shows the Application Selector.
Battery Operation
Press the power button. The Network Master shows a model name and
flashes the power button in green during booting.
Then, the Network Master enters Operating status and shows the Application
Selector.
Switching power OFF
When you press the Power button, a pop-up menu containing Shut Down
will appear.
Touch Shut Down and then confirm by touching Yes in a dialog box.
AC Operation
After you shut the Network Master down, the Network Master goes back to
Stand by or Charging state.
The Network Master stays Stand by or Charging state until you disconnect
the mains power adapter.
