Summary field
List-form
information
Graphical
presentation
Protocol
interpretation

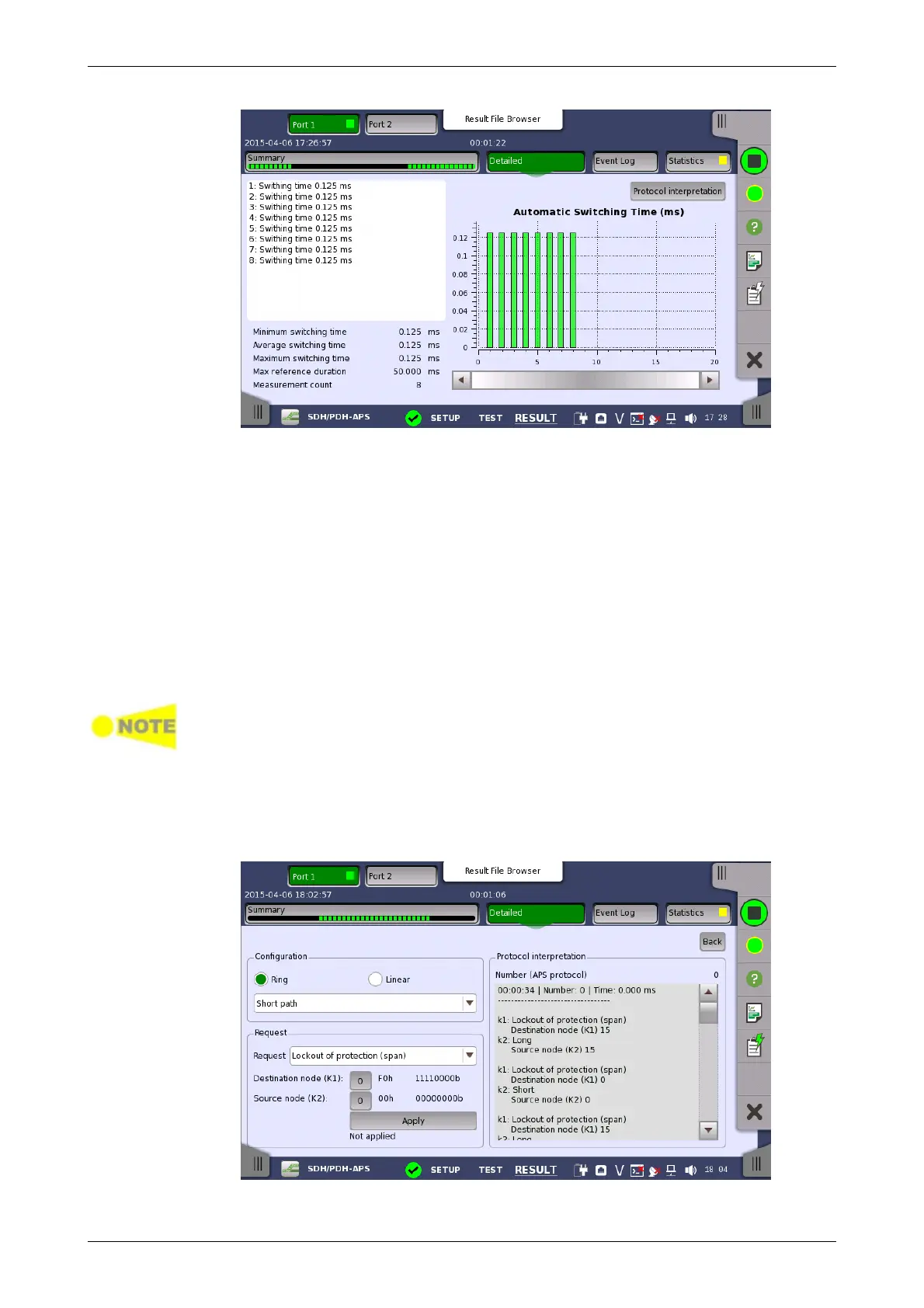

This screen shows the duration of all reference events, both in a list and in a
graphic representation. This screen contains the summary field displayed
below the list.
Consists of the minimum, maximum, and average automatic switching times
in milliseconds, the specified Max. reference duration value, the number of
measurements.
Presents the automatic switching times in list-form.
The graphical presentation consists of a bar diagram of the automatic
switching times. Results may be affected by unexpected alarms/errors.
Shows the screen displaying the Protocol interpretation.
Protection interpolation button appears when SDH or SONET layer is present.
5.8.3.3 Protocol interpretation
Touching the Protocol interpretation button on the Detailed screen will
display the following screen.
