5. Change the Network settings of the PC, so it can access the Network
Master via Ethernet.

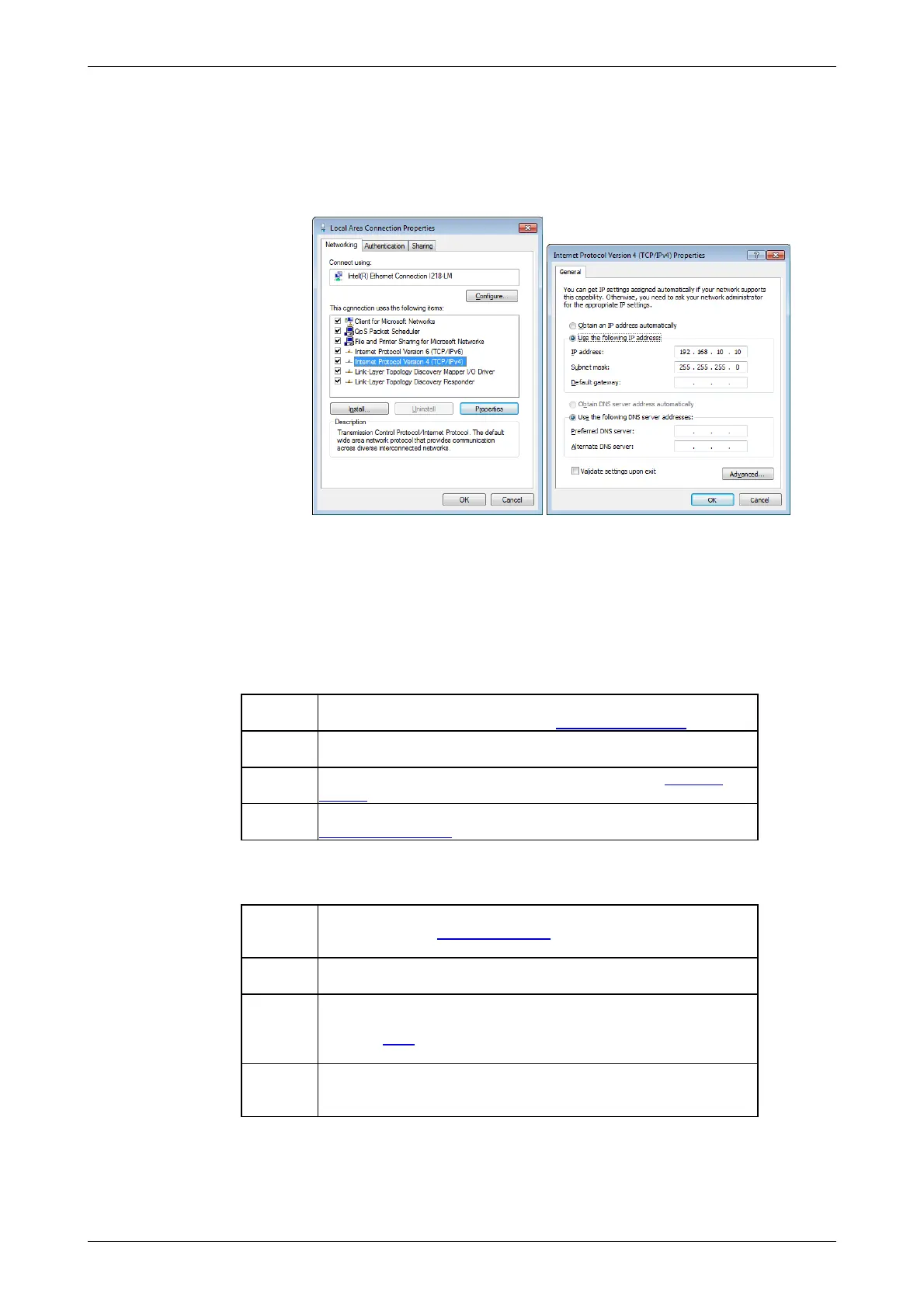

Select Control Panel -> Network and Internet -> Network Connection.
Right-click the interface and click the Properties.
Select the properties of Internet Protocol Version 4 (TCP/IPv4) and click
the Properties button.
6. Execute Ping command on PC to confirm connection to the Network
Master.
3.5.3 Communication Ports
When using the MX100001A Control Software with a Network Master
connected behind a port restrictive firewall, to successfully communicate
with the instrument, it is important to configure the firewall to allow
communication on the following ports:
5555 Framework core communication port, fixed. Used by Control
Software main GUI, including the Remote Upgrade function.
5650 to
5699
Application servers, fixed range. Used by Control Software
Application GUIs.
5898 Unit reset port, fixed. Used by Control Software Remote
Reset function.
58012 Remote wake-up port, fixed. Used by Control Software
Remote Wake Up function.
In addition, the following ports are used for other network functions in the
Network Master:
56001
(default)
SCPI server port, user configurable. Used by remote SCPI
clients. Refer to Remote Control section for details how to
setup.
5900
(default)
VNC (TCP), user configurable. Used by remote VNC clients.
5800
(default)
VNC over HTTP, user configurable. Used by remote VNC
over HTTP tunnel clients.
Refer to VNC section for details how to setup VNC
communication ports.
135, 137,
138, 139,
445
File Sharing, fixed ports.
3.5.4 Starting Control Software
1. Open Anritsu-MX100001A folder from Start menu.
2. Click MX100001A-V*.**-Remote.
