Physical Status
Alarm/Error
Status
Monitor Buttons
The topmost part of the status area gives you access to information about
the current physical status of the selected interface. A summary consisting
of the most relevant status indicators is displayed constantly. By touching
the summary, you can launch a display that contains the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is
displayed constantly. By touching the summary, you can launch a display
that contains all alarms/errors.
At the bottom of the status area are below buttons that give you access to
various monitor information. By touching a button, you can launch the
corresponding information display.
Alignment
CAS
Audio
Traffic
5.4.3.2 Physical Details
Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of
DS1/J1 is 1 544 000 bps.
5.4.3.3 Alarms and Errors

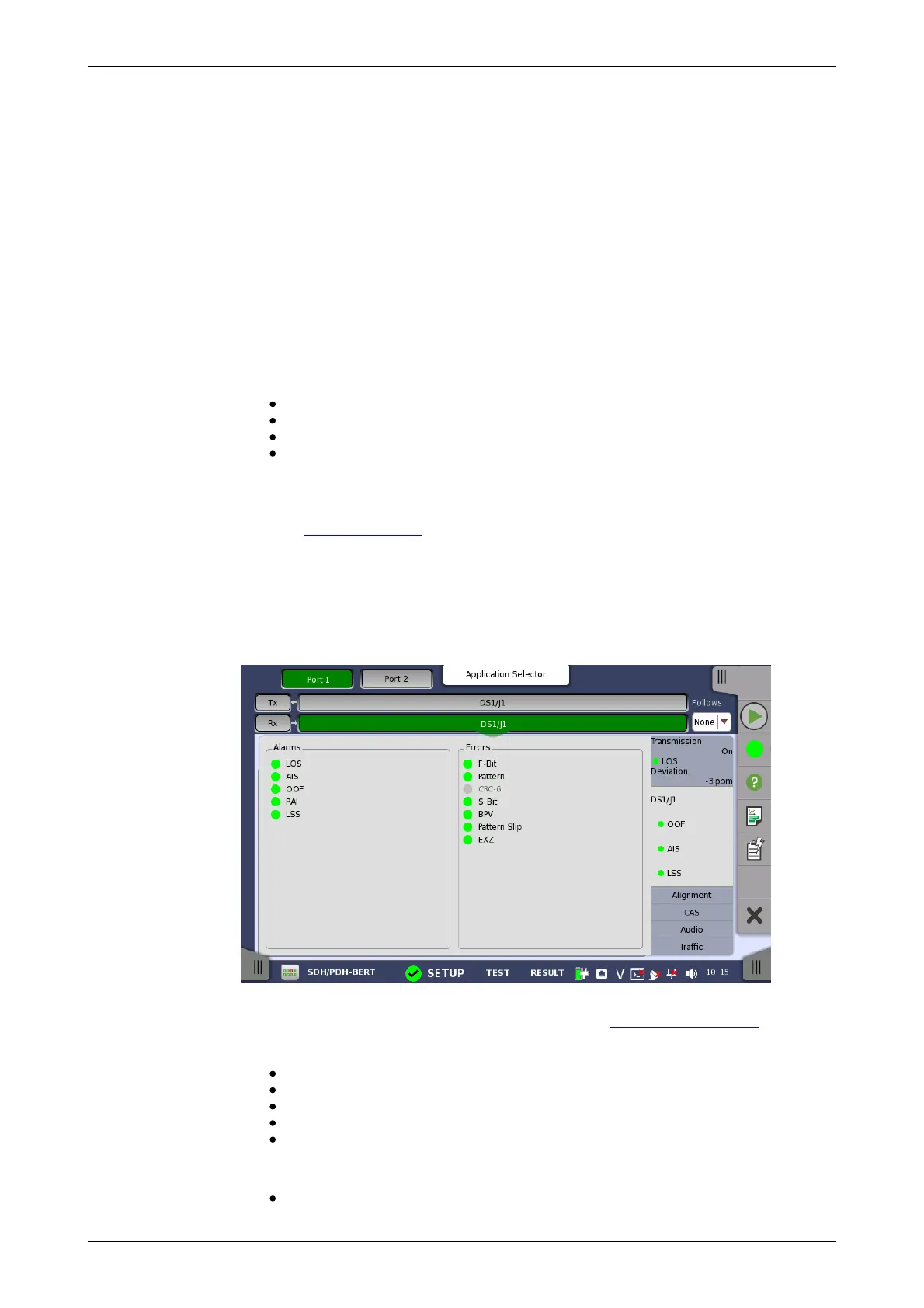

Touching the middle summary box in the status area of the Ports Setup
screen displays the status shown below.
This screen contains detailed alarm and error information related to the
DS1/J1 interface. Status is indicated by the use of colored Lamp icons.
Alarms
LOS: Loss of Signal
AIS: Alarm Indication Signal
OOF: Out of Frame
RAI: Remote Alarm Indication
LSS: Link Status Signal
Errors
F-Bit: F-Bit Error
