802.3ah status
information
6.1.3.7 OAM

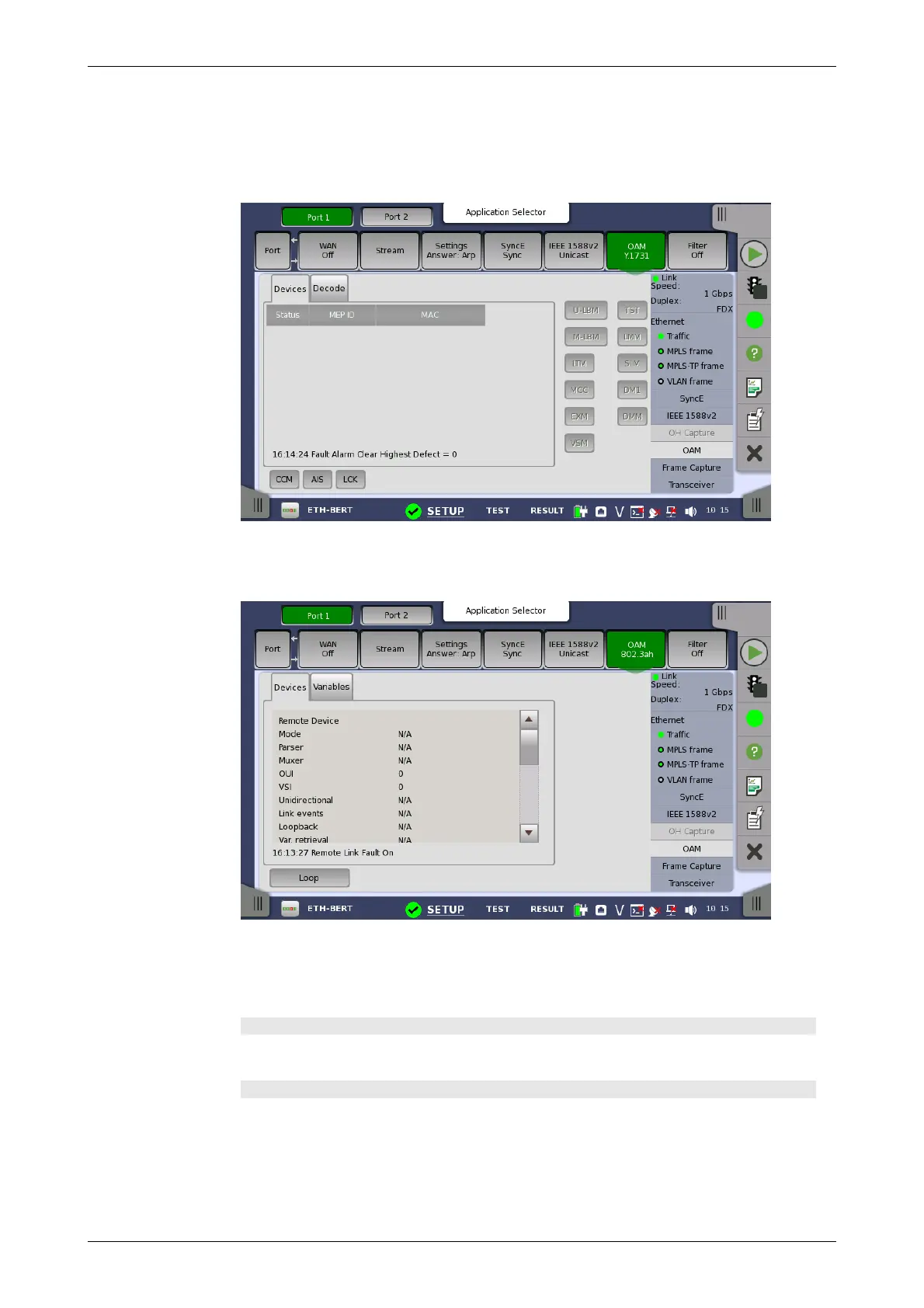

Touching the OAM button in the status area of the Ports Setup screen
displays the status shown below.
This screen presents information about the status of the OAM functions. The
information is split up on a number of tab pages. Note that the layout of the
dialog depends on the currently selected OAM protocol.
Loop button
Touch the Loop button to send the far-end device into loopback mode and
reflect frames.
Devices tab page
Shows the status of the remote and local devices.
Variables tab page
On the Variables tab page you can request various variables. Select the
relevant variable from the drop-down menu and then touch the Request
button.
