Physical Status
Alarm/Error
Status
Capture/Monitor
Status

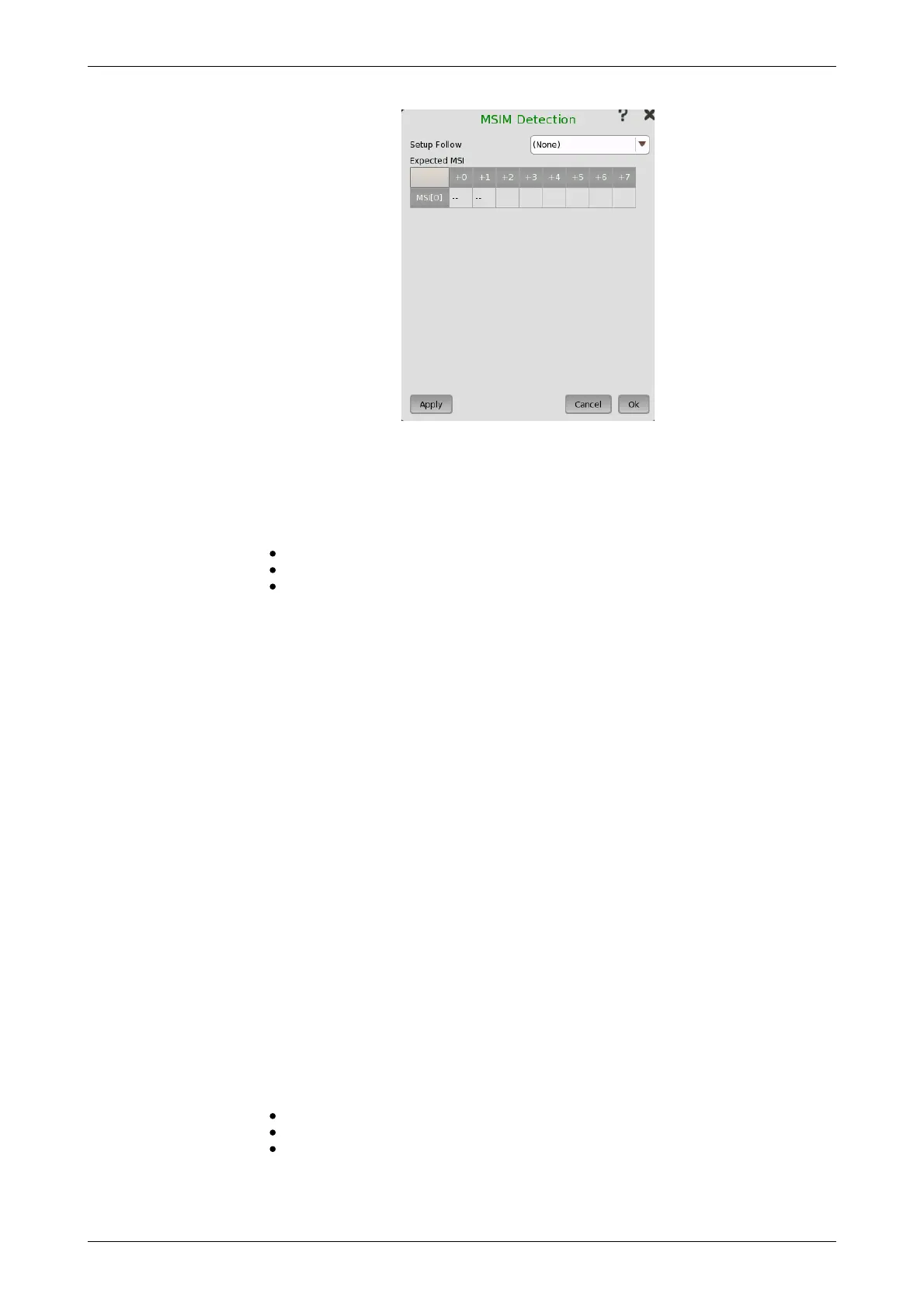

The dialog box is used to set the detection method of MSIM (Multiplex
Structure Identifier Mismatch).
Setup Follow
Select the source of the Expected MSI in the drop-down menu. The expected
MSI is displayed in the dialog box.
(None) : MSIM is not detected.
Tx Data : Expected MSI are copied from OH Preset data.
Received Data: Expected MSI are set from received MSI data.
7.1.3 Status Information
This section describes the status information available for the OTN layer in
the status area of the Ports Setup screen.
7.1.3.1 Status Summary
The status summary displayed for the OTN layer consists of the following
information:
The topmost part of the status area gives you access to information about
the current physical status of the selected interface. A summary consisting
of the most relevant status indicators is displayed constantly. By touching
the summary, you can launch a display that contains the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The status is indicated by the lamp
color. You can choose whether to view only the current alarm and error
status, or to view all alarms and errors in the alarm trap since it was last
reset.
A summary consisting of the most relevant alarm/error indications is
displayed constantly. By touching the summary, you can launch a display
that contains all alarms/errors.
At the bottom of the status area are below buttons that give you access to
various capture/monitor information. By touching a button, you can launch
the corresponding information display.
OH capture
Tributary scan
Transceiver
7.1.3.2 Physical Details
