4.1.3 Layout of the GUI Screens

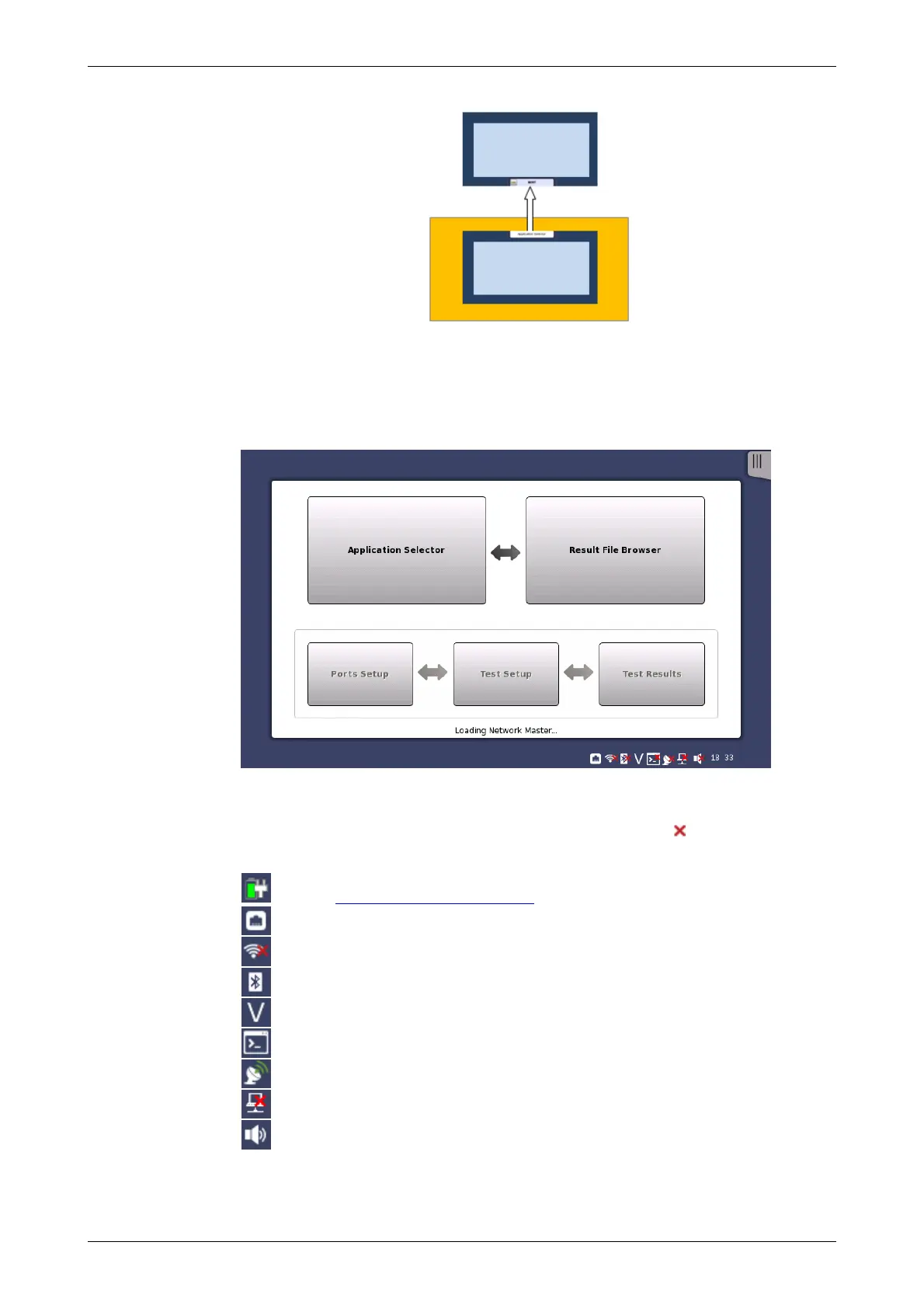

The Network Master starts up with a splash screen that shows the GUI
concept of desktop/workspace and the various screen types. It indicates
both application selector and result file browser as entry points.
There are status icons of the battery and the network connections at bottom
of the screen. This blue area at bottom of screen is the "status bar".
When the network connection is unusable, the red cross ( ) appears on the
icon.
Battery status
Refer to "Battery Status Information".
Link status of Ethernet service interface
WLAN (when the option is installed.)
Bluetooth (when the option is installed.)
VNC (Virtual Network Computing)
Controlled by the remote command
Connection status of GPS receiver
External PC status
Speaker On/Off status
