Physical Status
Interface Status

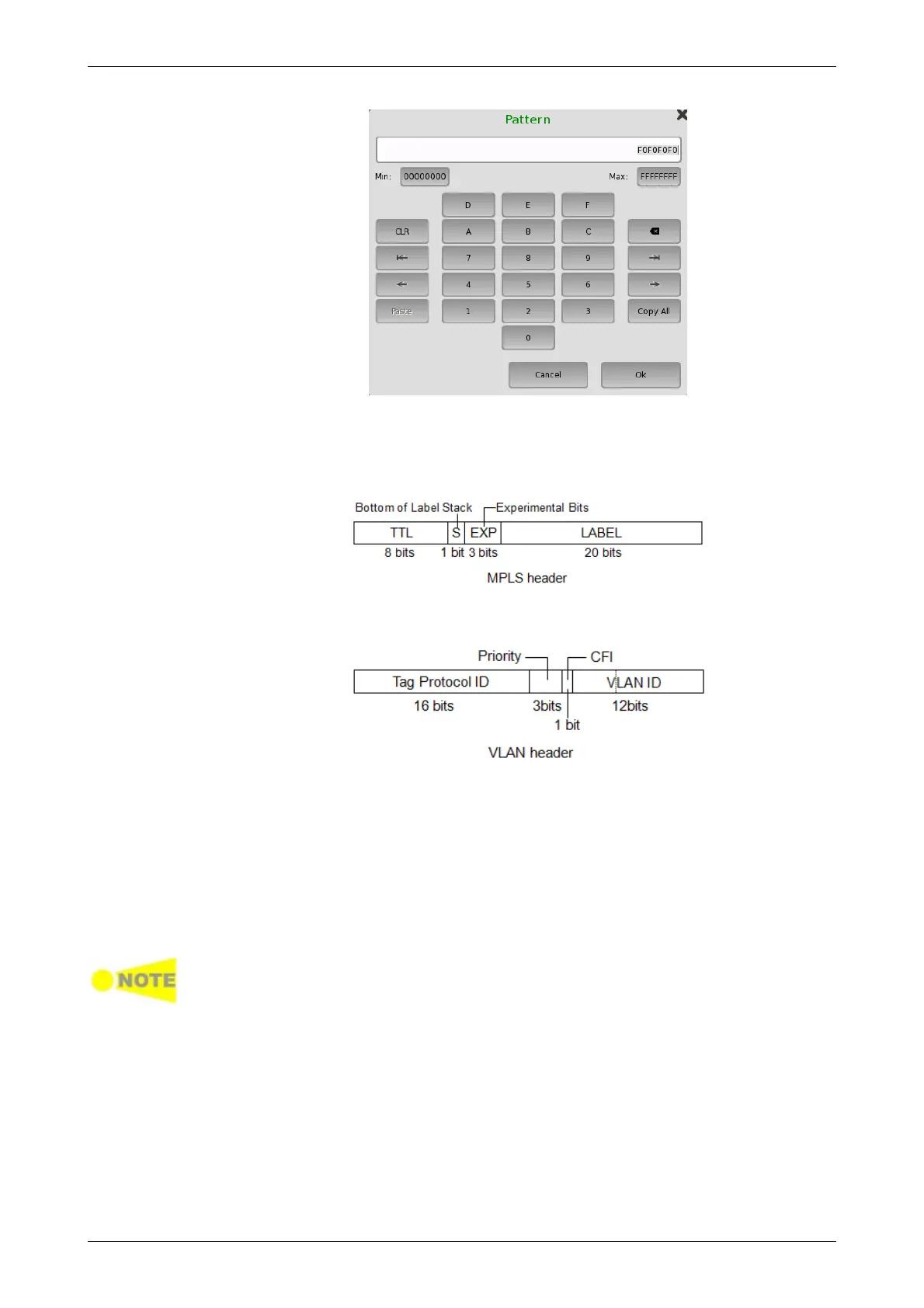

For MPLS/VLAN pattern setting, the dedicated dialog box will launch.
MPLS
Enter the number of MPLS label and TTL (Time To Live). You can select
Bottom of Label Stack or Experimental Bits.
VLAN
Enter the number of VLAN Priority and VLAN ID. You can select CFI Flag.
6.1.3 Status Information
This section describes the status information available in the status area of
the Ethernet ports setup screen.
6.1.3.1 Status Summary
The status summary displayed for the Ethernet interface consists of the
following information:
The actual summary information displayed depends on the type of the Ethernet
interface.
The topmost part of the status area gives you access to information about
the current physical status of the selected interface. A summary consisting
of the most relevant status indicators is displayed constantly. By touching
the summary, you can launch a display that contains the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The status is indicated by the lamp
color. You can choose whether to view only the current alarm and error
status, or to view all alarms and errors in the alarm trap since it was last
reset.
