Graphical
presentation

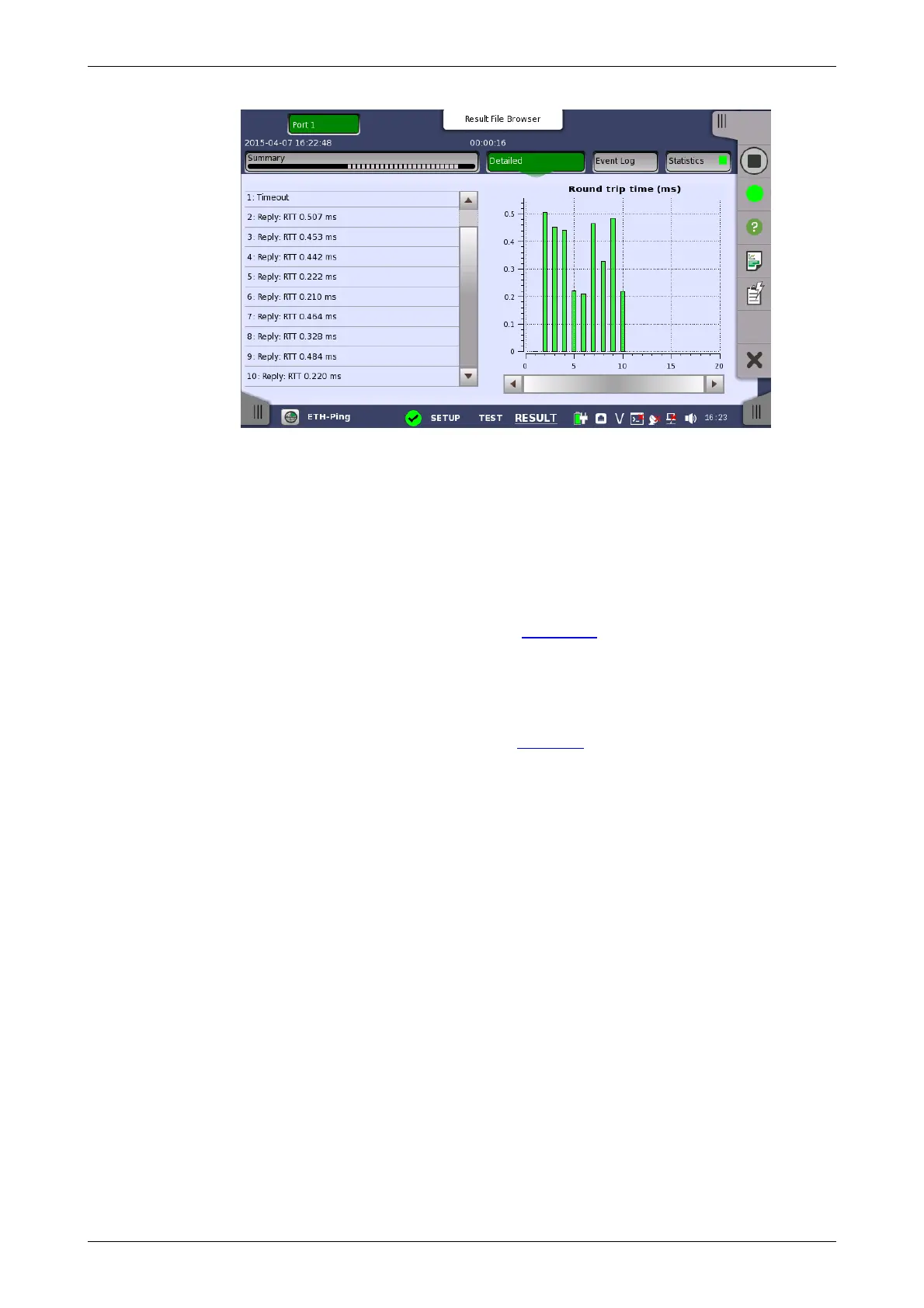

This screen presents the detailed results of an Ethernet Ping test. The results
relate to a specific port and consist of the Round Trip Times of the individual
Ping requests. The data is shown in both list-form and in a graphical
representation.
The graphical presentation consists of a bar diagram of the round trip times.
6.7.3.4 Event Log
Touching the Event Log button in the navigation area displays the screen
providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn
BERT application.
6.7.3.5 Statistics
Touching the Statistics button in the navigation area displays the screen
providing the statistics data. Refer to Statistics of BERT for the operation.
