Ethernet
When you select the check box, you can enable various thresholds. Touch
the Setup button to display the Ethernet threshold setup dialog box.
6.6.3 Test Results
6.6.3.1 Summary
When you go to the test results of the Ethernet Pass Through application, the
following screen is displayed.

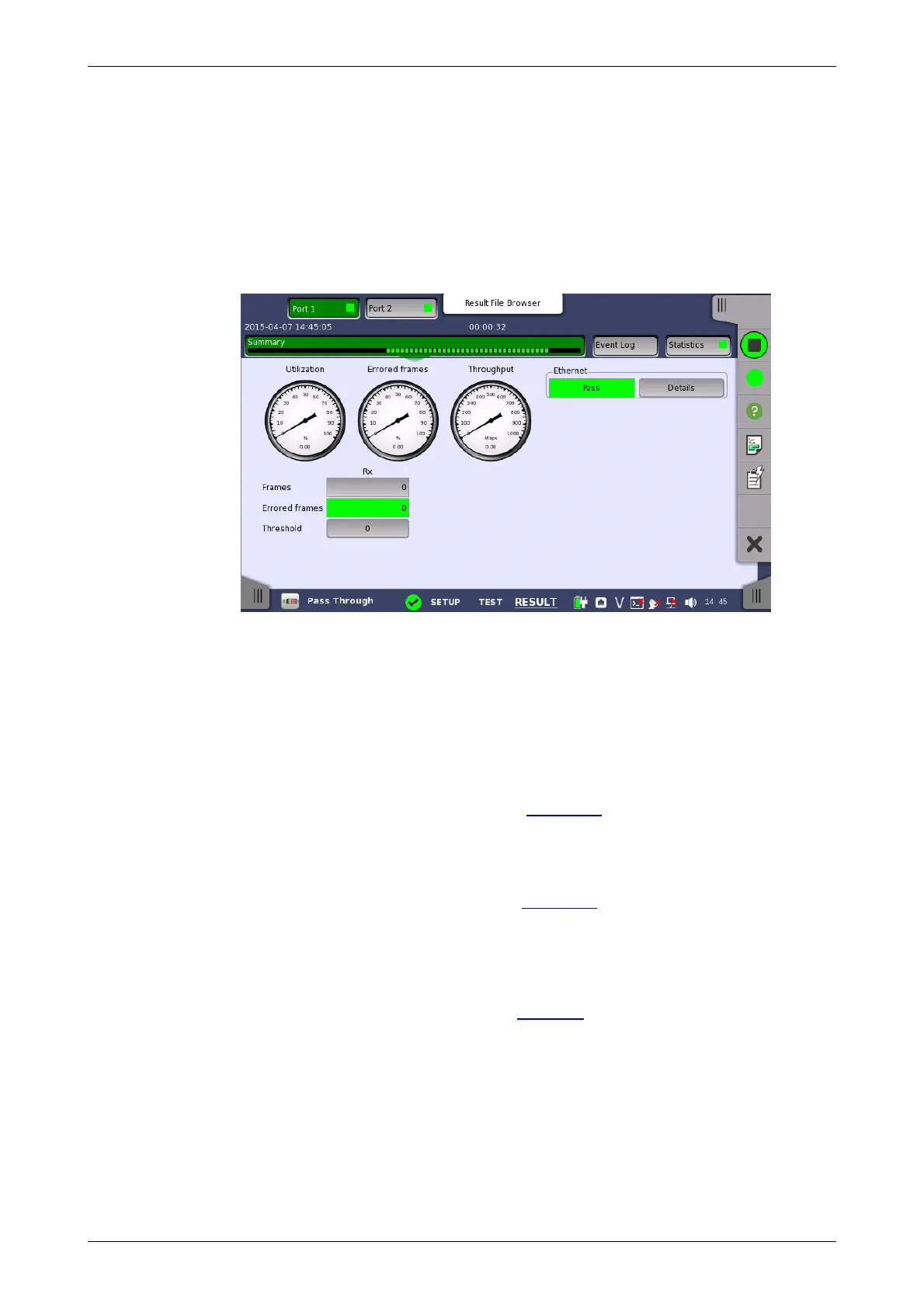

This screen contains a summary of the results of the Ethernet Pass Through
test. The information includes such things as number of errored frames and
number of exceeded thresholds.
The three dials showing utilization/throughput results, pattern errors and
errored frames can be enlarged by touching on them. The black needle
points the measured value in the latest period.
When Ethernet is selected on 'Threshold' of Test Setup screen, the
Ethernet information appears in the upper right-hand corner, shows
pass/fail status summary. Touching the Details button allows you to inspect
the individual pass/fail status. Refer to Summary in BERT section.
6.6.3.2 Event Log
Touching the Event Log button in the navigation area displays the screen
providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn
BERT application.
6.6.3.3 Statistics
Touching the Statistics button in the navigation area displays the screen
providing the statistics data. Refer to Statistics of BERT for the operation.
6.7 Ping
