Test setup
controls
Test monitoring
information

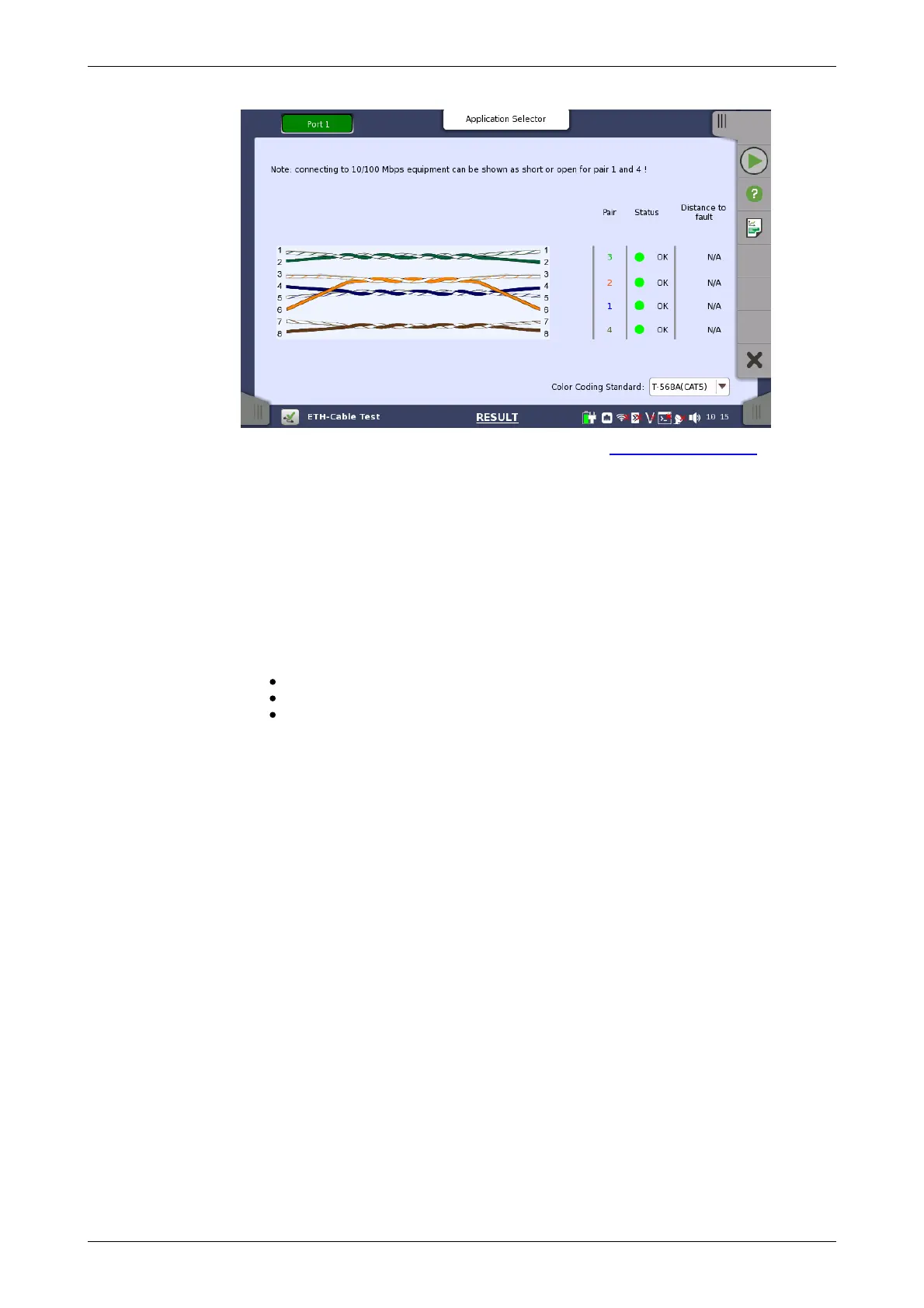

This screen allows you to control and monitor an Ethernet Cable Test.
Color Coding Standard
Allows you to select the color coding used for the graphical representation of
the cables. In the drop-down menu, you can choose between T-568A
(CAT5) and T-568B (CAT5E).
Pair
Lists the individual cable pairs in relation to the pin number and color coding.
Status
Shows the status of the wires inside the cable. The Lamp indicator will be
green if there is no problem and red if there is a problem.
OK indicates a fully functional cable.
Short indicates a short circuited cable.
Open indicates an open circuited cable.
Distance to fault
In case of cable troubles (i.e. an open or a short circuit) the distance to the
problem will be indicated approximately in this field.
6.4 Channel Statistics
