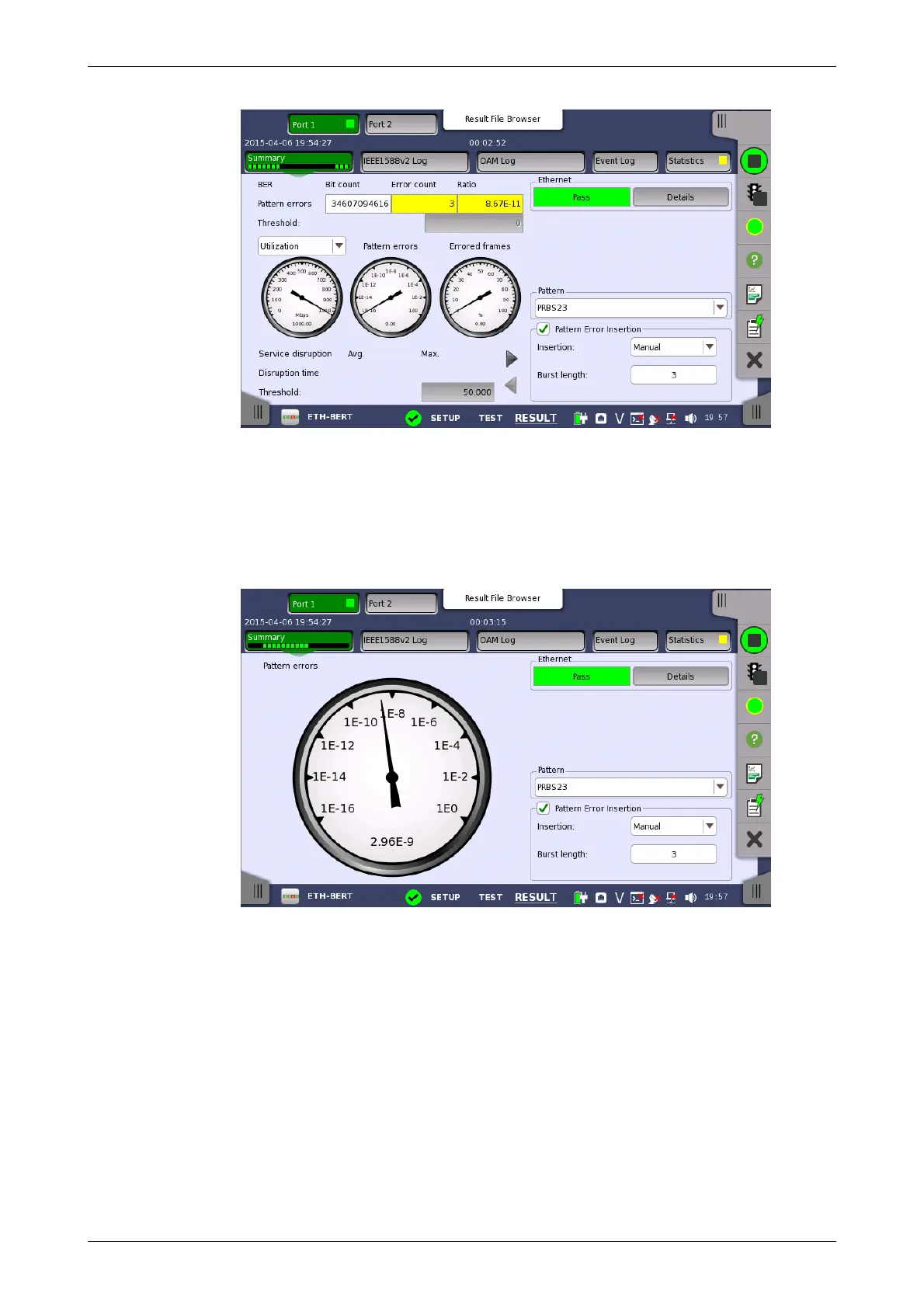

This screen contains a summary of the results of the Ethernet BERT test. The
information includes such things as number of pattern errors, average and
maximum disruption time, and number of exceeded thresholds.
The three dials showing utilization/throughput results, pattern errors and
errored frames can be enlarged by clicking on them. The blue needle points
the average value from starting the test. The black needle points the
measured value in the latest period.
To view throughput information, select Throughput in the drop-down menu
and then expand the dial. Use the drop-down menu above the expanded dial
to select the relevant layer.
When Ethernet is selected on 'Threshold' of the Test Setup screen, the
Ethernet information appears in the upper right-hand corner, shows
pass/fail status summary. Touching the Details button allows you to inspect
the individual pass/fail status.
