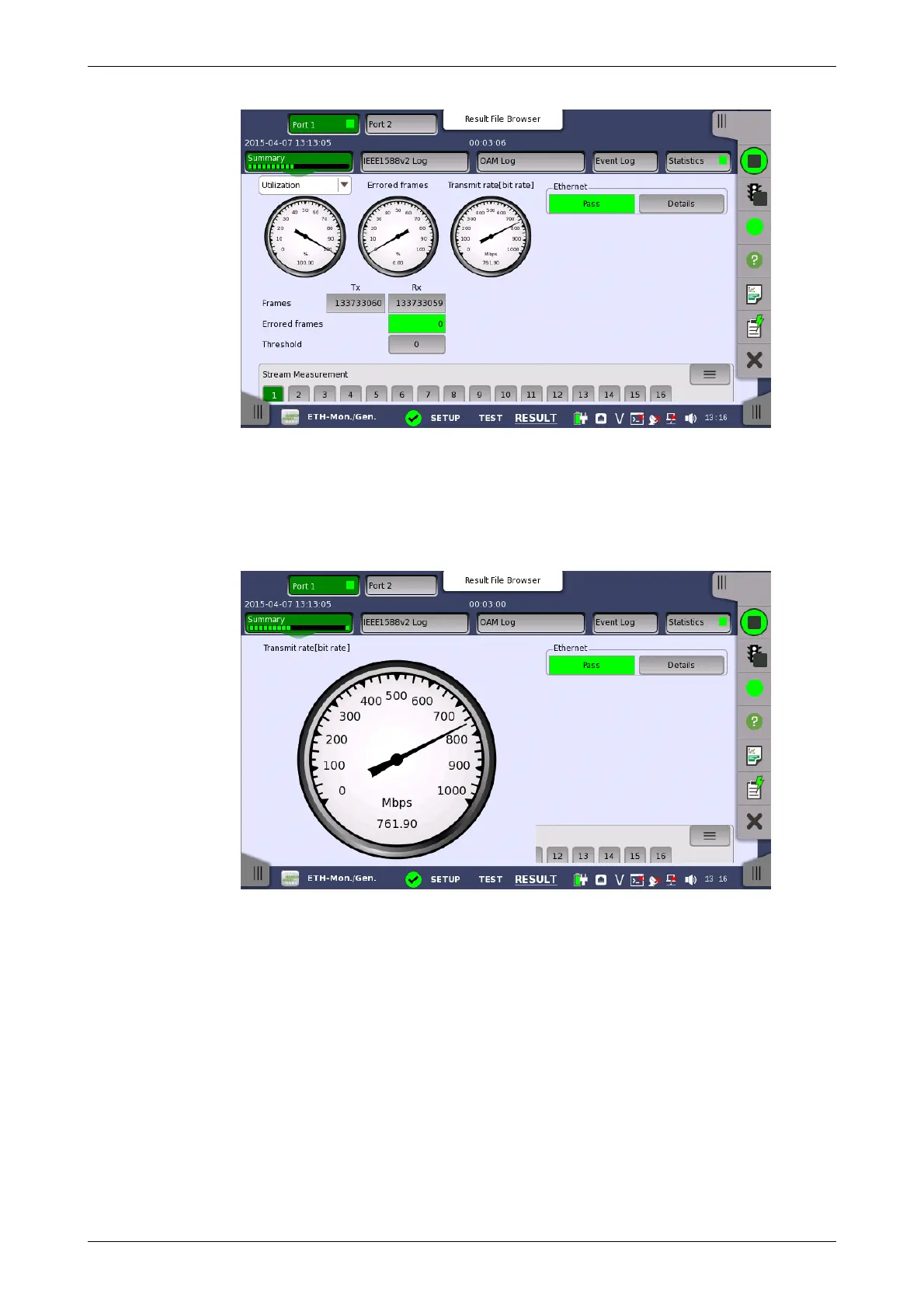

This screen contains a summary of the results of the Ethernet
Monitor/Generate test. The information includes such things as number of
errored frames and number of exceeded thresholds.
The three dials showing utilization/throughput results, pattern errors and
errored frames can be enlarged by touching on them. The black needle
points the measured value in the latest period.
To view throughput information, select Throughput in the drop-down menu
and then expand the dial. Use the drop-down menu above the expanded dial
to select the relevant layer.
When Ethernet is selected on 'Threshold' of the Test Setup screen, the
Ethernet information appears in the upper right-hand corner, shows
pass/fail status summary. Touching the Details button allows you to inspect
the individual pass/fail status.
