General
Site Names
(Short, Long)
Test Directions
Setup
CIR
Test Sequence

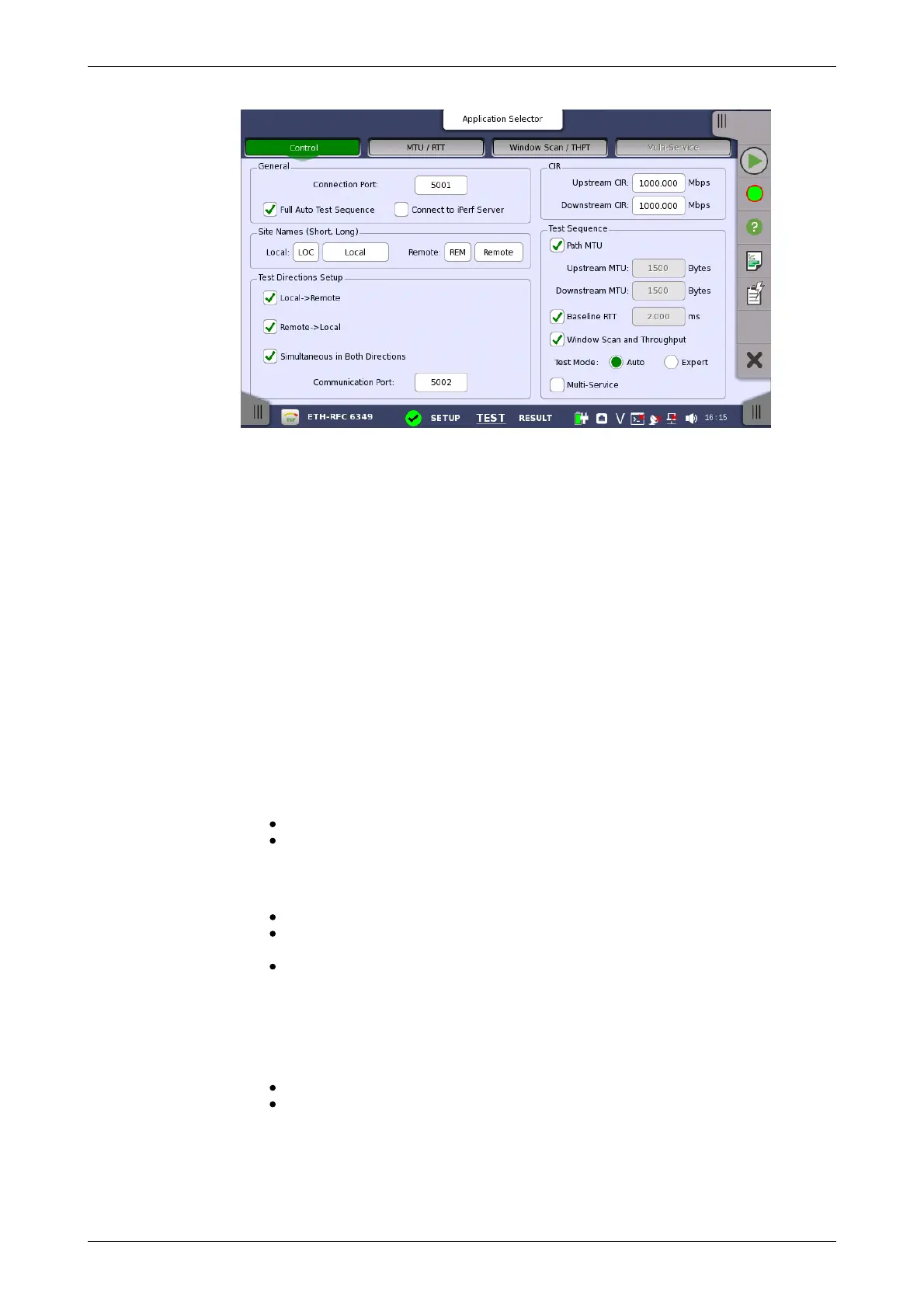

This screen allows you to specify your test mode and select which RFC 6349
tests to carry out.
Connection Port
Touch the fields to set the port number.
Full Auto Test Sequence
If selecting check box, followings are selected:
Local -> Remote, Remote -> Local, Simultaneous in Both
Directions, Path MTU, Baseline RTT, Window Scan and Throughput
The Test Mode will be set to Auto.
Connect to iPerf Server is cleared.
Connect to iPerf Server
If selecting check box, Network Master will connect to the iperf server. "iperf"
is the tool to measure the network throughput.
Followings are cleared:
Remote -> Local, Simultaneous in Both Directions, Full Auto Test
Sequence.
Touch the fields to set the Site Names :
Local: The site name for Network Master side.
Remote: The site name for the opposite instrument.
Select the one or more check boxes, then touch the fields to set the port
number of the communication.
Local -> Remote: Tests the throughput of outgoing stream to Remote.
Remote -> Local: Tests the throughput of incoming stream from
Remote.
Simultaneous in Both Directions: Tests the both throughput of
outgoing and incoming streams.
Communication Port
Touch the fields to set the port number.
Touch the fields to set the committed information rate (CIR).
Upstream CIR: CIR of outgoing stream.
Downstream CIR: CIR of incoming stream.
Select the check boxes of the test defined in RFC 6349, which you wish to
run.
Path MTU
