3rd byte Bit 6-8: STAT
Bits 6-8 show TCM status.
Bits 6-8 TCM status
000 no source TC
001 in use without IAE
010 in use with IAE
011 Reserved
100 Reserved
101 ODUk-LCK
110 ODUk-OCI
111 ODUk-AIS

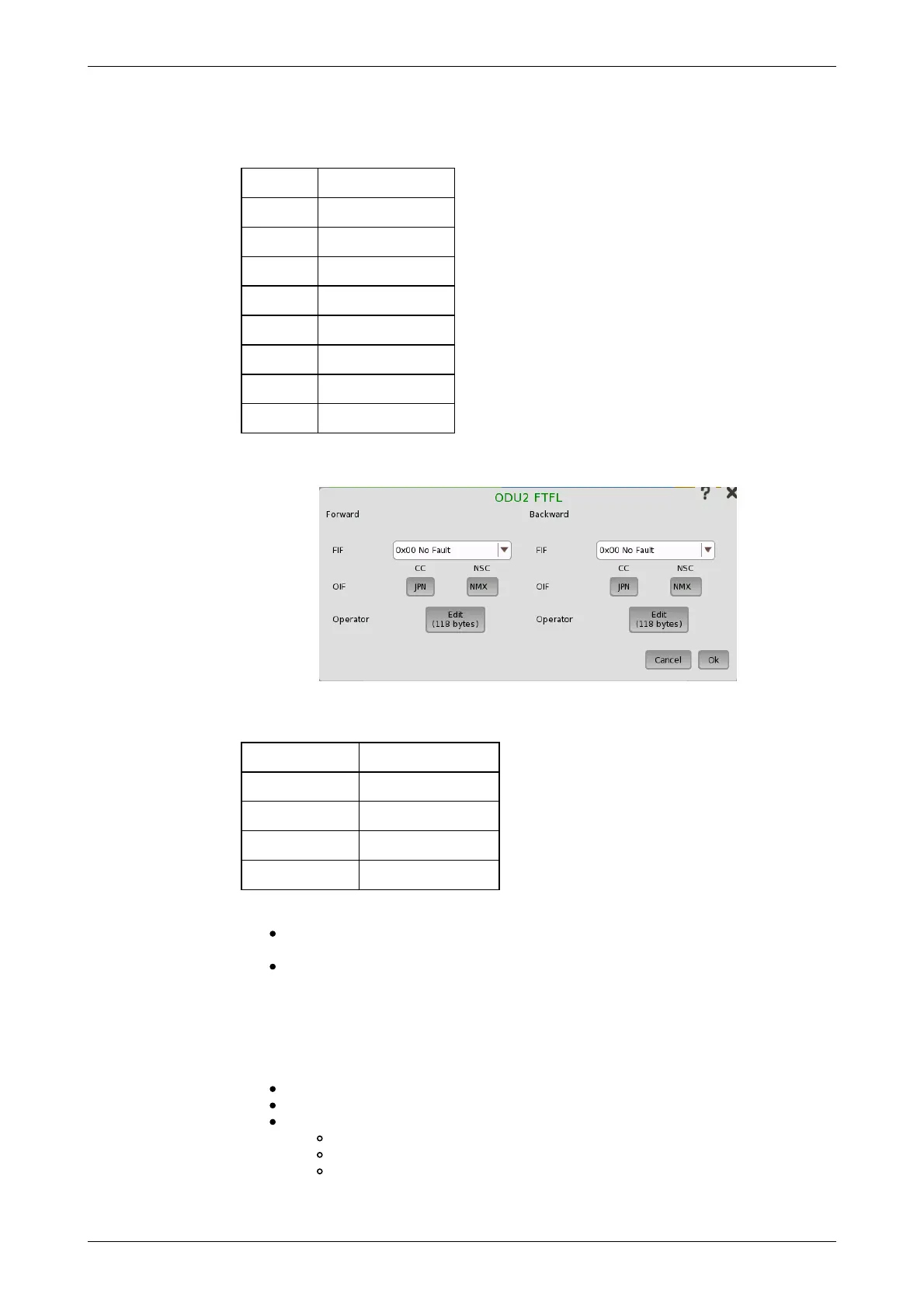

The FTFL message consists of two 128-byte fields. Launch the ODUk FTFL
dialog box to edit the fields.
Both messages (Forward and Backward) consist of the following parameters:
FIF (Fault indication field)
Byte Fault indication
0x00 No Fault
0x01 Signal Fail
0x02 Signal Degrade
0x03 to 0xFF Reserved
OIF (Operator identifier field)
CC Country code is a three-character ISO 3166 geographic/political
countrycode (G/PCC).
NSC National segment code is a 1-6 character ITU carrier code (ICC).
Operator (Operator-specific field)
This field is available for operator use. Touching the button launches the
Pattern Editor.
PM consists of the following parameters:
TTI byte (Trail Trace Identifier)
BIP-8 byte (Bit Interleaved Parity level 8 code)
3rd byte:
Bits 1-4: BIP violations (BEI)
Bit 5: Signal fail status (BDI)
Bits 6-8: Status (STAT)
