5-3
Chapter 5. Screens

For 3 loops

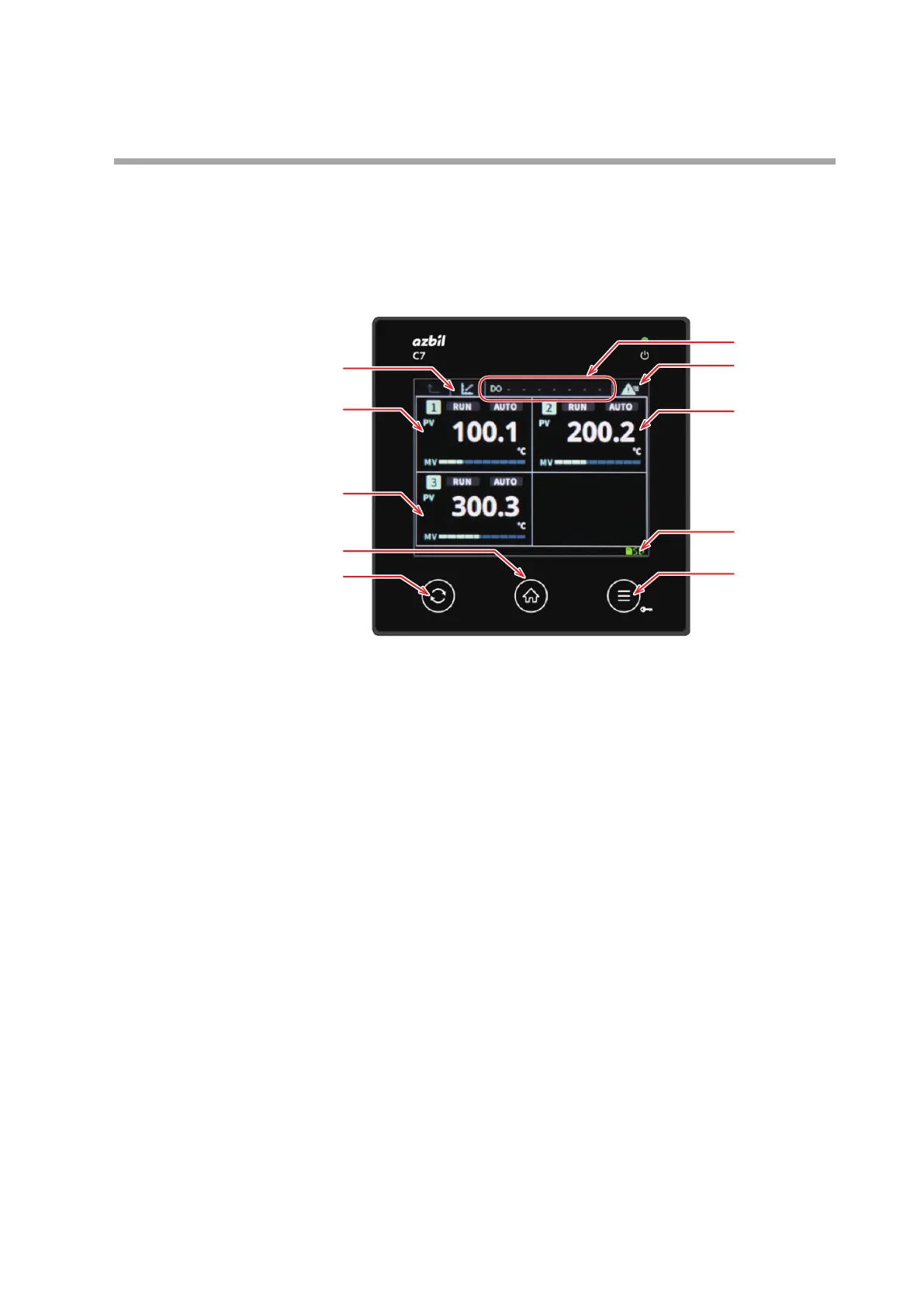

The Home screen is a multi-loop monitor screen, separated into four loop displays
in the four quarters of the screen.
Touching the display area of any loop shows the 1-loop monitor screen for that
loop.
(6)
(5)
(4)
(1)
(3)
(8)
(7)
(2)
(10)
(9)
(1) to (3) Separate monitor displays for loops 1 to 3
The PV (numeric value), MV (bar graph), RUN/READY mode, and AUTO/
MANUAL mode is shown for loops 1 to 3.
If auto tuning is started, the AT progress graph is displayed instead of the MV.
The LSP/RSP mode is not displayed.
When the area of any loop is touched, the display changes to the 1-loop monitor
screen for that loop.
(4)Graph icon
Touching this icon displays the graph screen.
(5) DO display
Displays the statuses of the DO1 to 7 terminals.
A green number shows ON status, a gray number shows OFF status, and "-"
indicates the DI function.
Touching this portion of the screen displays the DI/DO monitor screen.
(6) Alarm 1 icon
The light blue icon shows that there are no alarms.
Touching this icon displays the block alarm screen.
(7) Home button
This button is disabled on the Home screen.
