configure SkyView to support any installations that are not already supported in
the preconfigured downloadable resources.

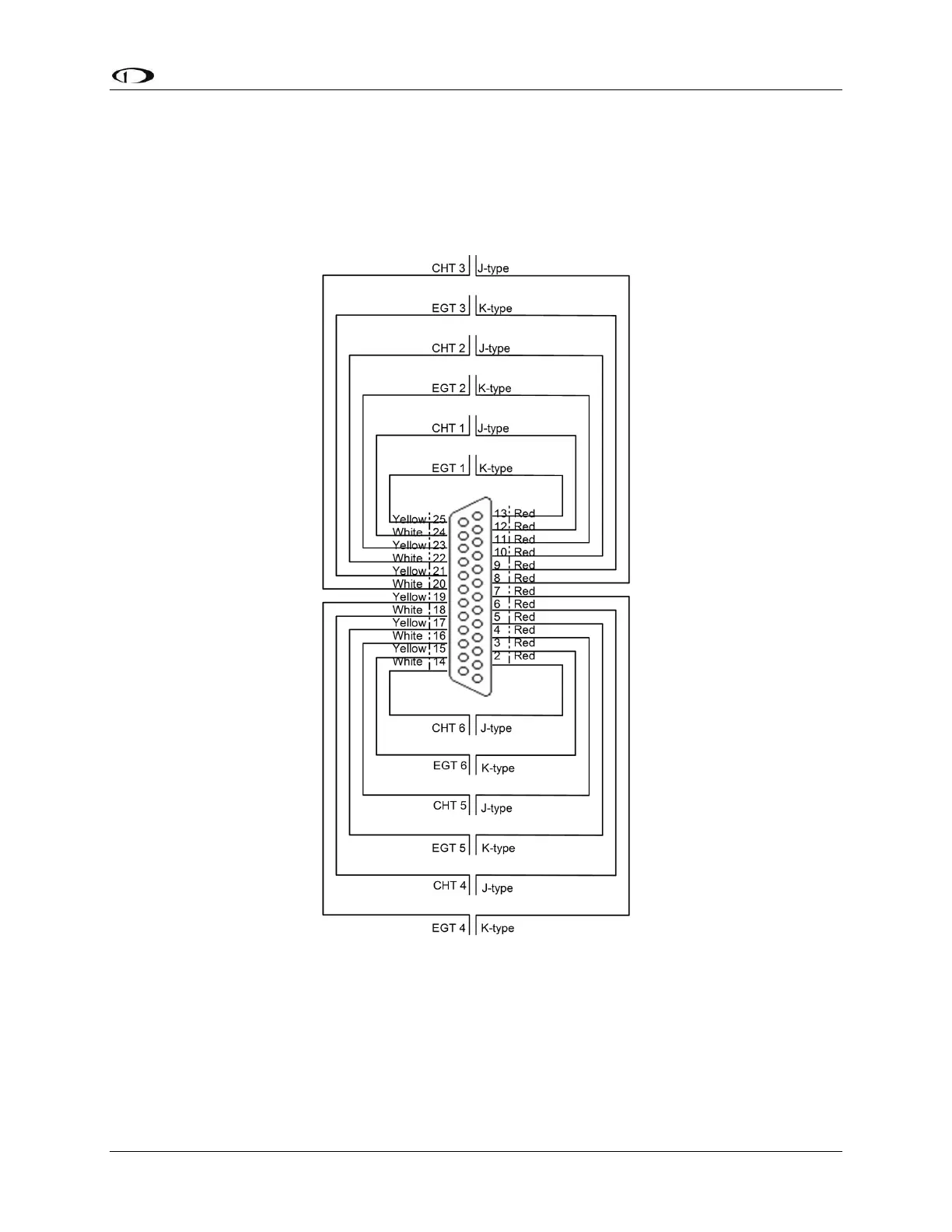

Figure 60 is a pin insertion view (rear) of the D25M connector on the Thermocouple Wire
Harness.
Figure 60 – Thermocouple Wire Harness D25M Pin Insertion View (Rear)
Sensors Powered by the SV-EMS-220/221
Some sensors use a 5V (pin 18; white/red wire) or 12V (pin 15; red wire) power supply provided
by the SV-EMS-220/221 module. These outputs are designed to handle a limited amount of
current. The typical Lycoming/Continental/Rotax/Jabiru installations as described in the rest of
