Ericsson ECN330 User Manual

Introduction to the ECN330-switch
51553-KDU 137 365 Uen D 2006-06-16
2 Introduction to the ECN330-switch
2.1 Overview
The Ericsson ECN330-switch is an Ethernet Layer 3 switch that contains 24
100BASE-TX ports, and 3 1000BASE-T ports, two of which are combo ports —
1000BASE-T RJ45 ports with associated Small Form Factor Pluggable (SFP)
transceiver slots that operate as an alternate media connection.
The ECN330-switch is used as second level aggregation switch in the EDA
network.
As well as its Power-over-Ethernet capabilities, the ECN330-switch provides
comprehensive network management features, such as Spanning Tree
Protocol, multicast switching, virtual LANs, IP routing, and Layer 2/3/4 CoS
services that provide reliability and consistent performance for network traffic.
Figure 1 shows the front and rear panels of the ECN330.

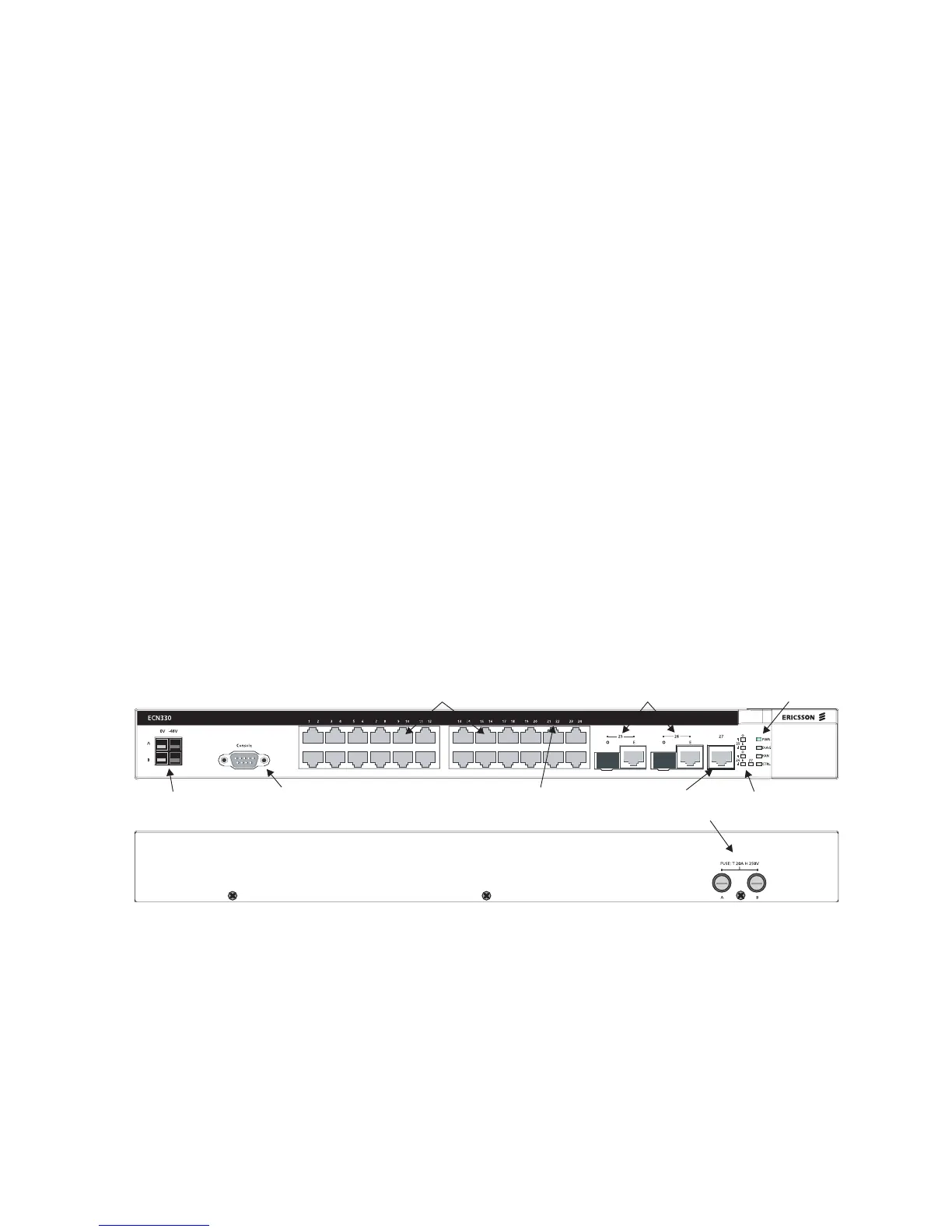

Figure 1 ECN330 Front and Rear Panels
DC Power Connectors
Port Status Indicators
100BASE-TX Ports
System Indicators
Console Port
1000BASE-T/SFP Combo Ports
1000BASE-T PortPort Status Indicators
Power Supply Fuses
Front Panel
Rear Panel

Ericsson ECN330 Specifications

General

Brand	Ericsson
Model	ECN330
Category	Network Router
Language	English
