Configuring the ECN330-switch
1671553-KDU 137 365 Uen D 2006-06-16
6.6.2.1 Specifying the Mask Type
Use the ACL Mask Configuration page to edit the mask for the Ingress IP ACL,
Egress IP ACL, Ingress MAC ACL or Egress MAC ACL.
Web – Click Security, ACL, ACL Mask Configuration. Click Edit for one of the
basic mask types to open the configuration page.

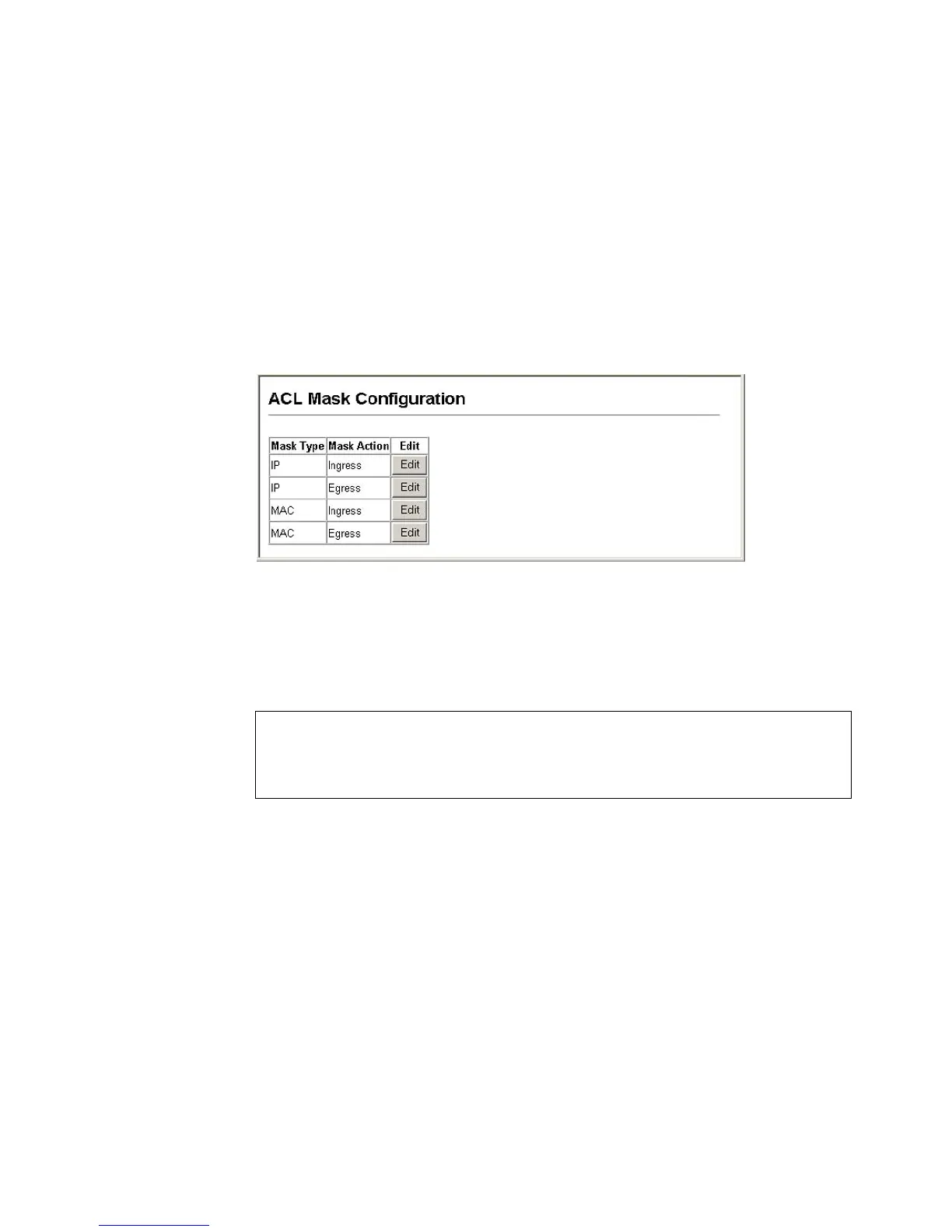

Figure 59 Choosing ACL Mask Types
CLI – This example creates an IP ingress mask, and then adds two rules. Each
rule is checked in order of precedence to look for a match in the ACL entries.
The first entry matching a mask is applied to the inbound packet.
Console(config)#access-list ip mask-precedence in
Console(config-ip-mask-acl)#mask host any
Console(config-ip-mask-acl)#mask 255.255.255.0 any
Console(config-ip-mask-acl)#
