criteria, the default is to drop the packet. If there is no match criteria for
that type of packet in the VLAN map, the default is to forward the packet.
• If the action is to drop matching packets, first define the access map,
including configuring any access control list (ACL) containing the
required match criteria before binding the map to a VLAN, or all packets
could be dropped.
Command Attributes
• IP – Sets the access map to match packets against an IP ACL.
• MAC – Sets the access map to match packets against a MAC ACL.
• Action – Drops or forwards the packet when the specified conditions
are matched.
Web – Click Security, VLAN ACL, Configuration. Enter a name for a new access
map in the Name field, and click Add to open the configuration page for the new
access map. Select an IP or MAC ACL from the scroll-down lists, set the Action
to Drop or Forward, and then click Add.

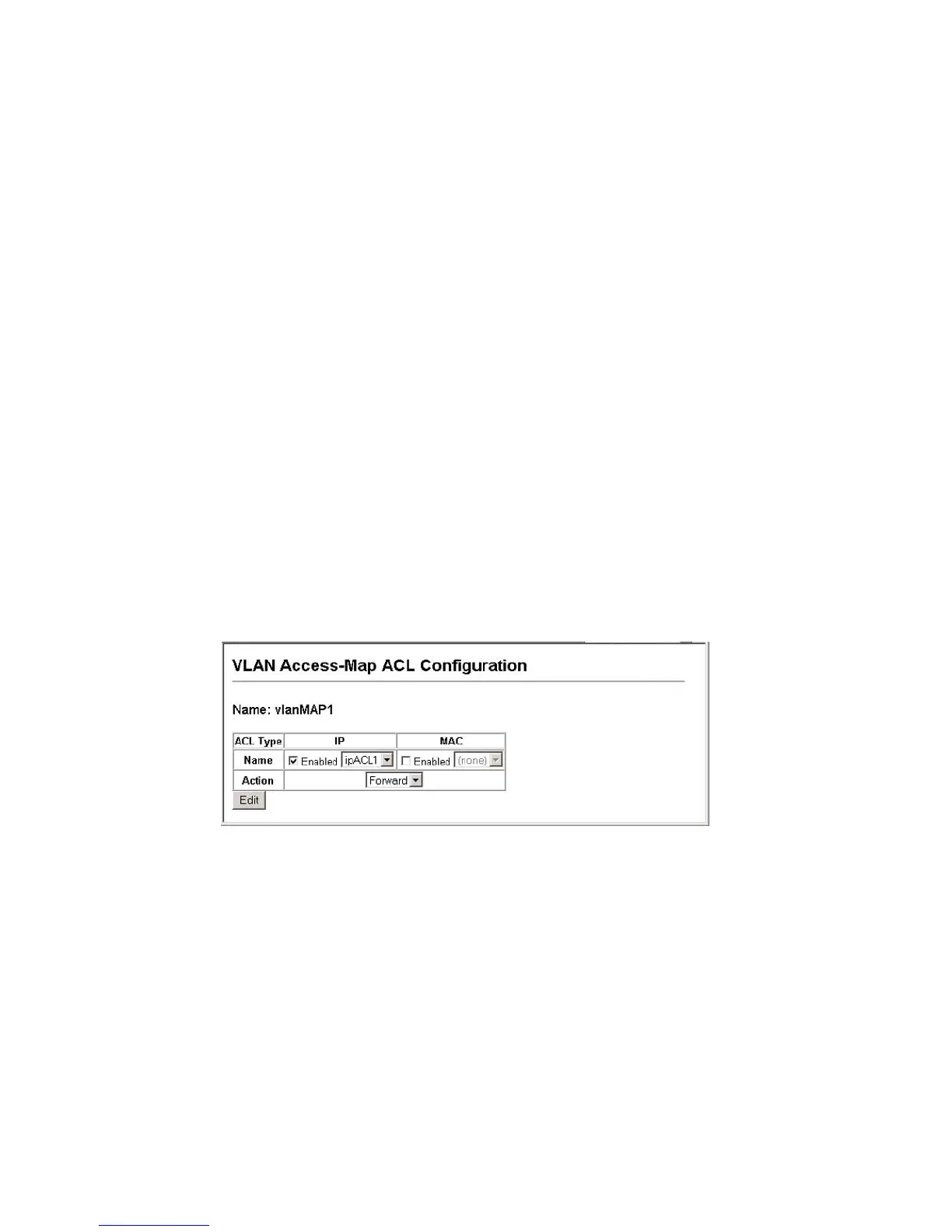

Figure 64 Configuring a VLAN Access Map
