Configuring the ECN330-switch
2851553-KDU 137 365 Uen D 2006-06-16
• New – Specifies the name and numeric identifier for a new VLAN group.
(The VLAN name is only used for management on this system; it is not
added to the VLAN tag.)
• VLAN ID – ID of configured VLAN (1-4094, no leading zeroes).
• VLAN Name – Name of the VLAN (1 to 32 characters).
• Status (Web) – Enables or disables the specified VLAN.
• Enable: VLAN is operational.
• Disable: VLAN is suspended; that is, does not pass packets.
• State (CLI) – Enables or disables the specified VLAN.
• Active: VLAN is operational.
• Suspend: VLAN is suspended; that is, does not pass packets.
• Add – Adds a new VLAN group to the current list.
• Remove – Removes a VLAN group from the current list. If any port is
assigned to this group as untagged, it will be reassigned to VLAN group
1 as untagged.
Web – Click VLAN, 802.1Q VLAN, Static List. To create a new VLAN, enter the
VLAN ID and VLAN name, mark the Enable checkbox to activate the VLAN, and
then click Add.

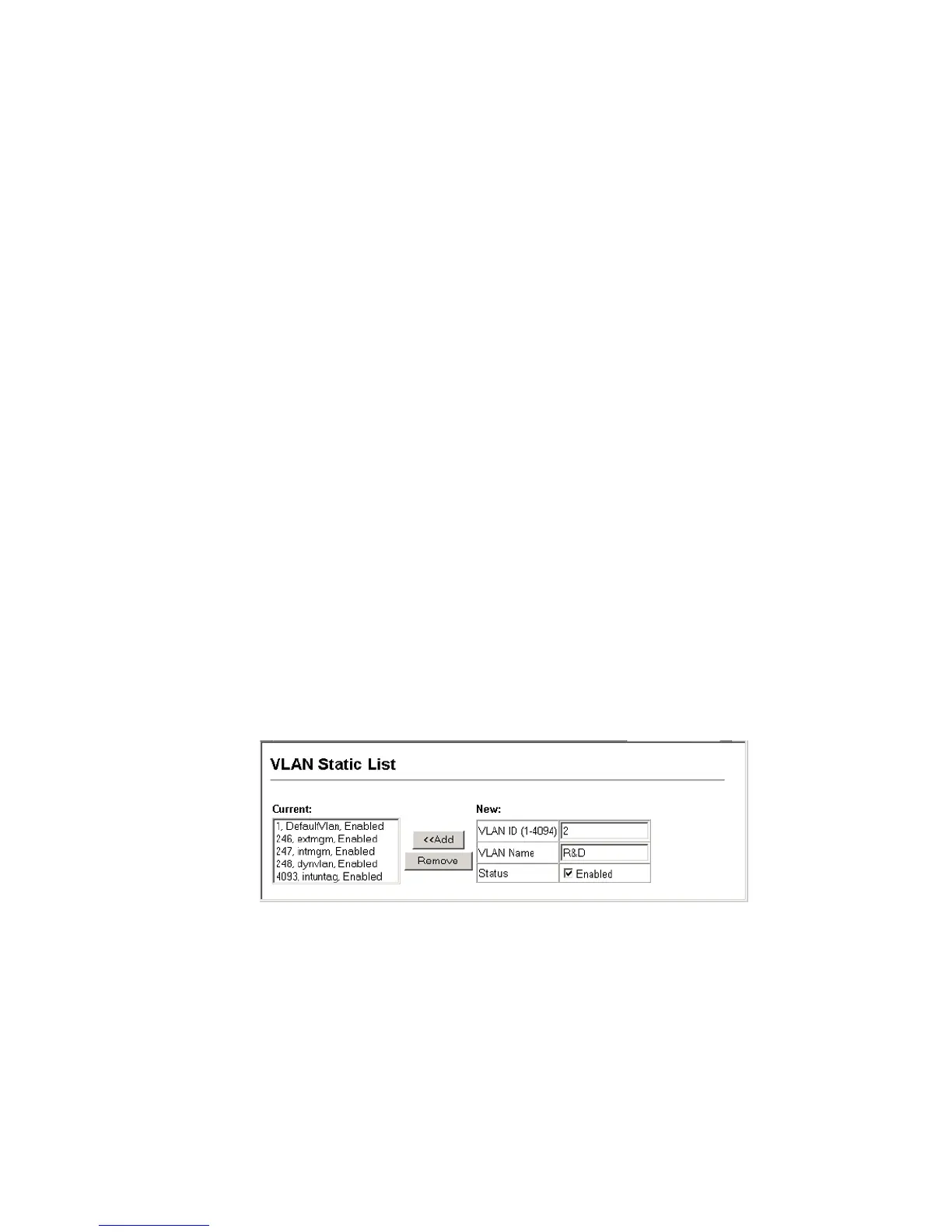

Figure 113 VLAN Static List - Creating VLANs
