Configuring the ECN330-switch
290 1553-KDU 137 365 Uen D 2006-06-16
• Non-Member – VLANs for which the selected interface is not a tagged
member.
Web – Open VLAN, 802.1Q VLAN, Static Membership by Port. Select an
interface from the scroll-down box (Port or Trunk). Click Query to display
membership information for the interface. Select a VLAN ID, and then click Add
to add the interface as a tagged member, or click Remove to remove the
interface. After configuring VLAN membership for each interface, click Apply.

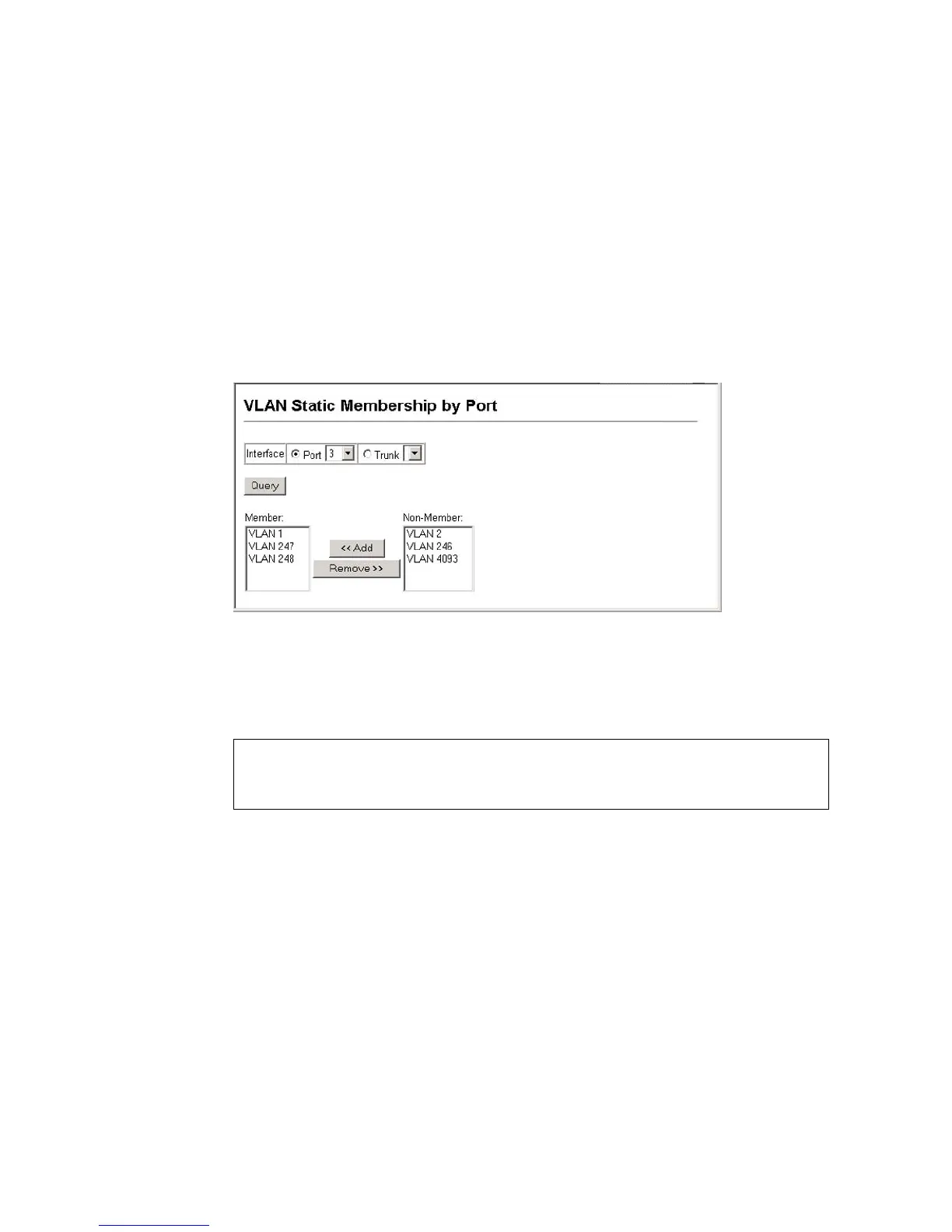

Figure 115 VLAN Static Membership
CLI – This example adds Port 3 to VLAN 1 as a tagged port, and removes Port 3
from VLAN 2.
6.12.1.10 Configuring VLAN Behavior for Interfaces
VLAN behavior can be configured for specific interfaces, including the default
VLAN identifier (PVID), accepted frame types, ingress filtering, GVRP status,
and GARP timers.
Command Usage
• GVRP – GARP VLAN Registration Protocol defines a way for switches
to exchange VLAN information in order to automatically register VLAN
members on interfaces across the network.
Console(config)#interface ethernet 1/3
Console(config-if)#switchport allowed vlan add 1 tagged
Console(config-if)#switchport allowed vlan remove 2
