Configuring the ECN330-switch
396 1553-KDU 137 365 Uen D 2006-06-16
• Error IP TTL Packets – Number of VRRP packets received by the
virtual router with IP TTL (Time-To-Live) not equal to 255.
• Received Priority 0 Packets – Number of VRRP packets received by
the virtual router with priority set to 0.
• Error Packet Length Packets – Number of packets received with a
packet length less than the length of the VRRP header.
• Invalid Type Packets – Number of VRRP packets received by the
virtual router with an invalid value in the “type” field.
• Error Address List Packets – Number of packets received for which
the address list does not match the locally configured list for the virtual
router.
• Invalid Authentication Type Packets – Number of packets received
with an unknown authentication type.
• Mismatch Authentication Type Packets – Number of packets
received with “Auth Type” not equal to the locally configured
authentication method.
• Sent Priority 0 Packets – Number of VRRP packets sent by the virtual
router with priority set to 0.
Web – Click IP, VRRP, Group Statistics. Select the VLAN and virtual router
group.

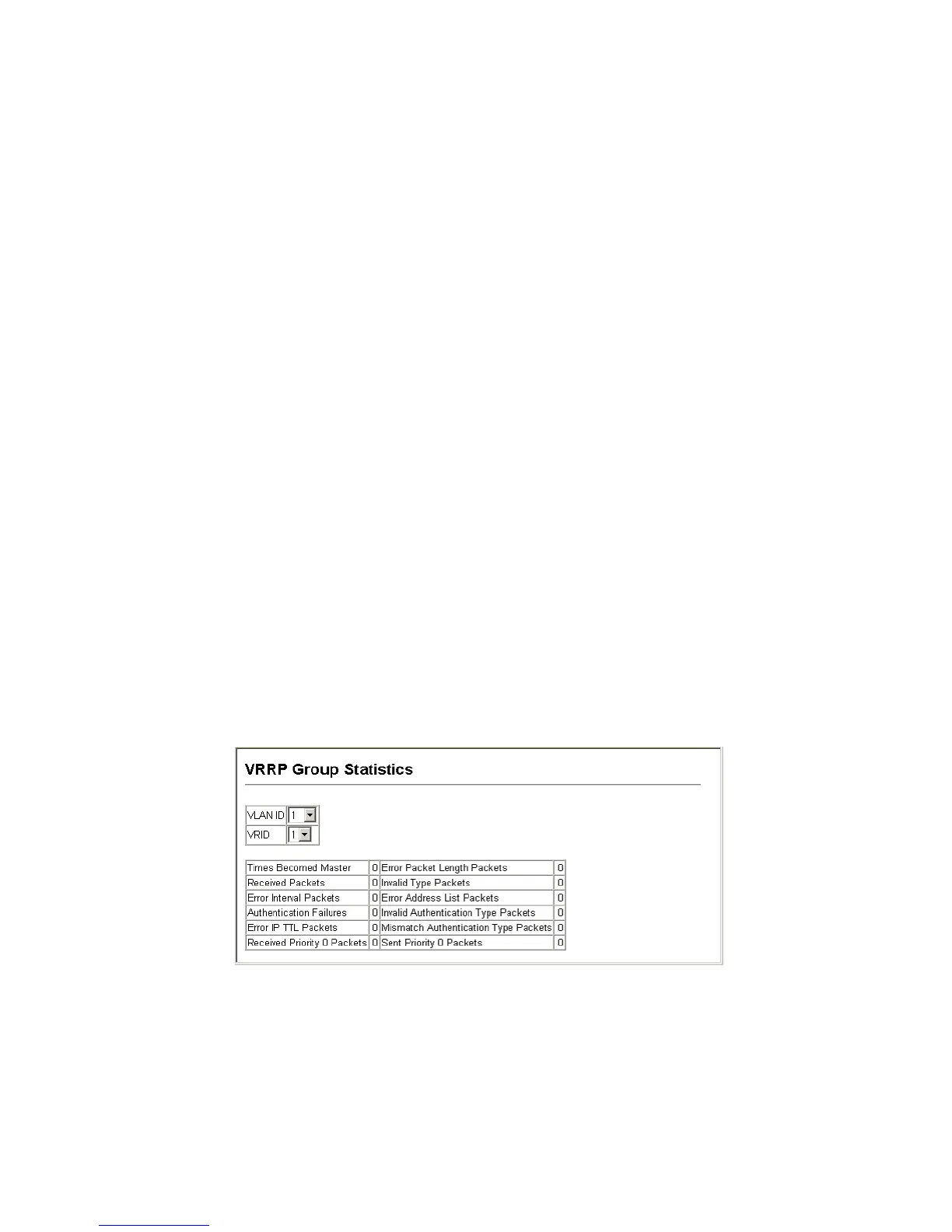

Figure 171 VRRP Group Statistics
