Configuring the ECN330-switch
4551553-KDU 137 365 Uen D 2006-06-16
Web - Click Routing Protocol, OSPF, Virtual Link Configuration. To create a new
virtual link, specify the Area ID and Neighbor Router ID, configure the link
attributes, and click Add. To modify the settings for an existing link, click the
Detail button for the required entry, modify the link settings, and click Set.

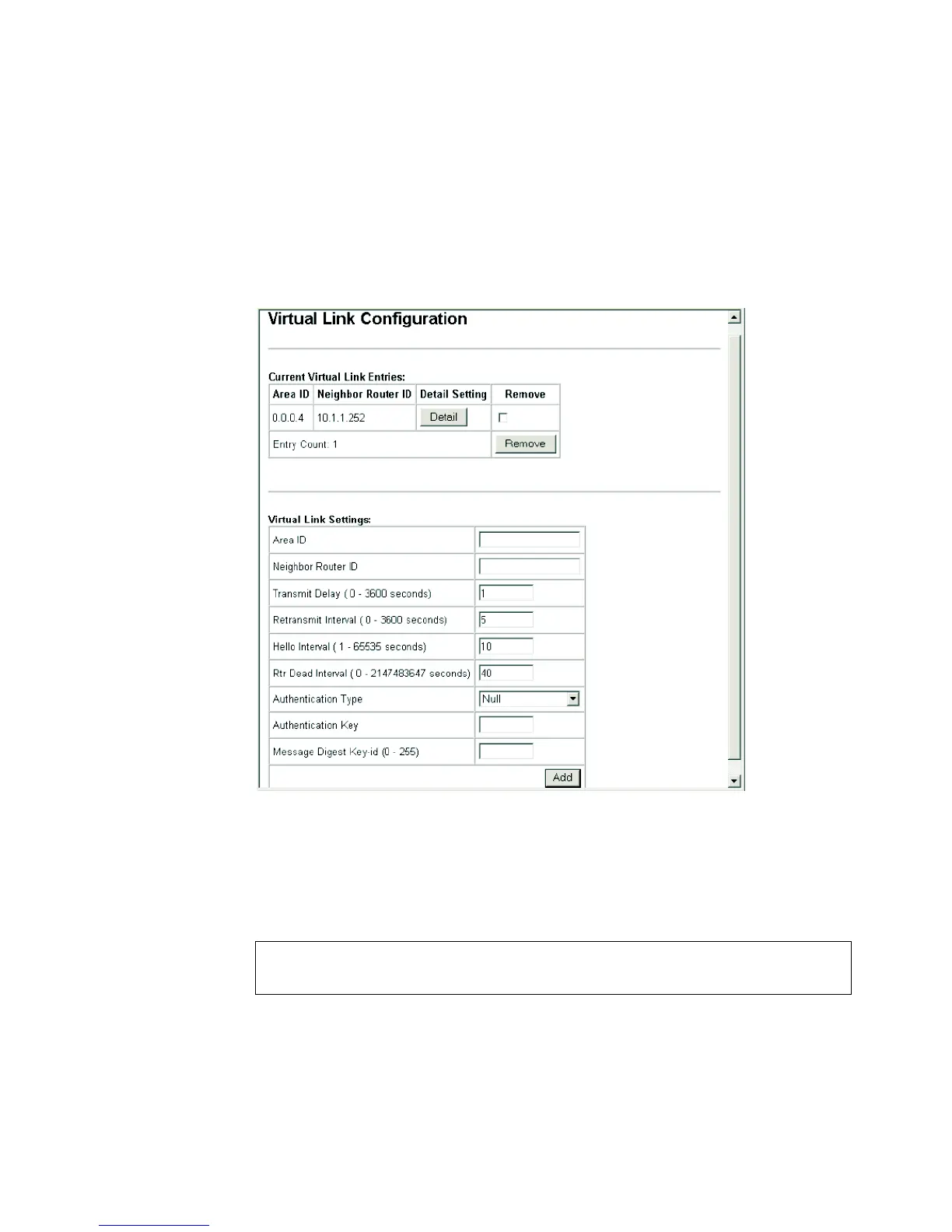

Figure 205 OSPF Virtual Link Configuration
CLI - This example configures a virtual link from the ABR adjacent to area
0.0.0.4, through a transit area to the neighbor router 10.1.1.252 at the other end
of the link which is adjacent to the backbone.
Console(config-router)#area 0.0.0.0 virtual-link 10.1.1.252
Console(config-router)#
