Configuring the ECN330-switch
4571553-KDU 137 365 Uen D 2006-06-16
• Area ID – Area to which the specified address or range is assigned. An
OSPF area identifies a group of routers that share common routing
information. (The area ID must be in the form of an IP address.)
Note: This router supports up to 16 total areas (either normal transit areas,
stubs, or NSSAs).
Web - Click Routing Protocol, OSPF, Network Area Address Configuration.
Configure a backbone area that is contiguous with all the other areas in the
network, configure an area for all of the other OSPF interfaces, then click Apply.

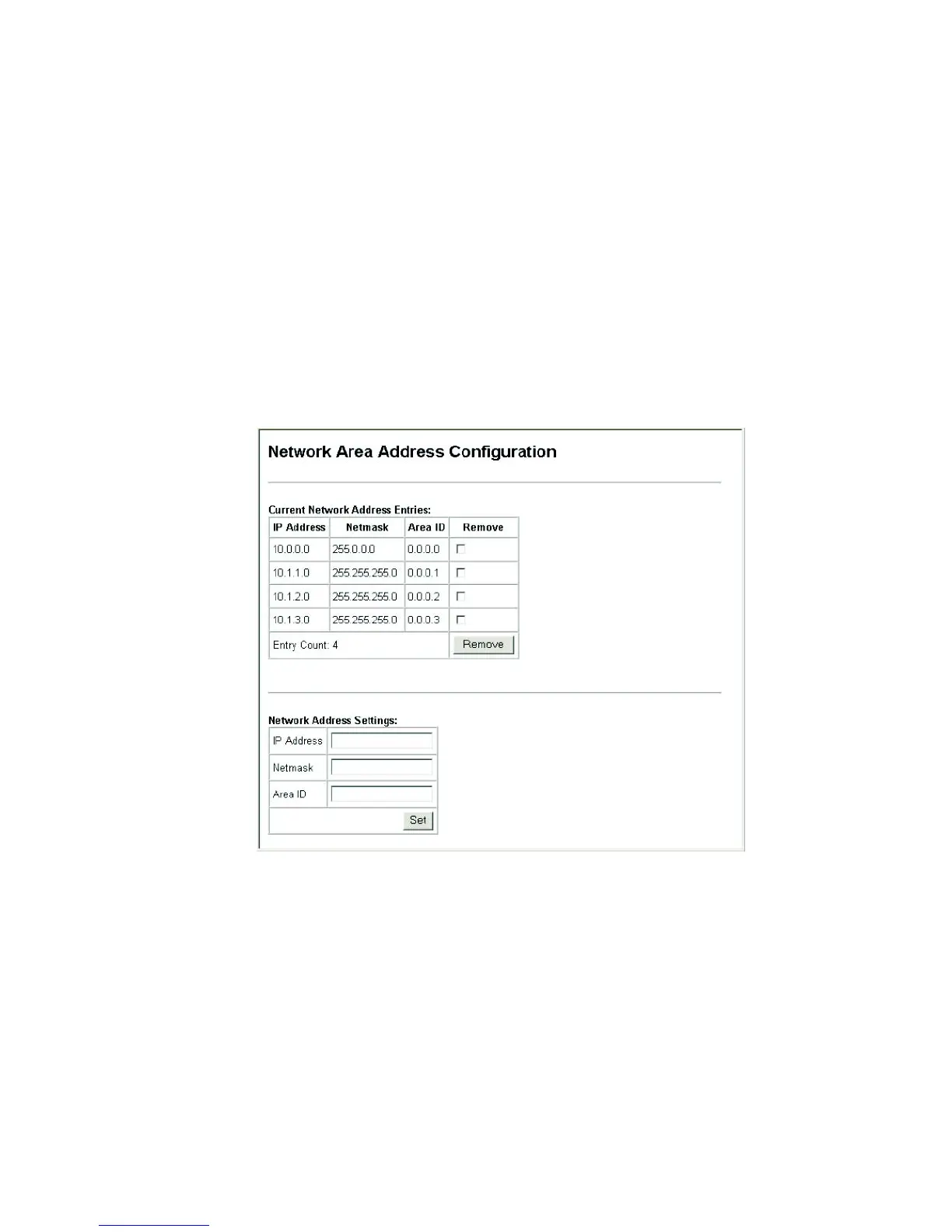

Figure 206 OSPF Network Area Address Configuration
