Configuring the ECN330-switch
4631553-KDU 137 365 Uen D 2006-06-16
Web - Click Routing Protocol, OSPF, NSSA Settings. Create a new NSSA or
modify the routing behavior for an existing NSSA, and click Apply.

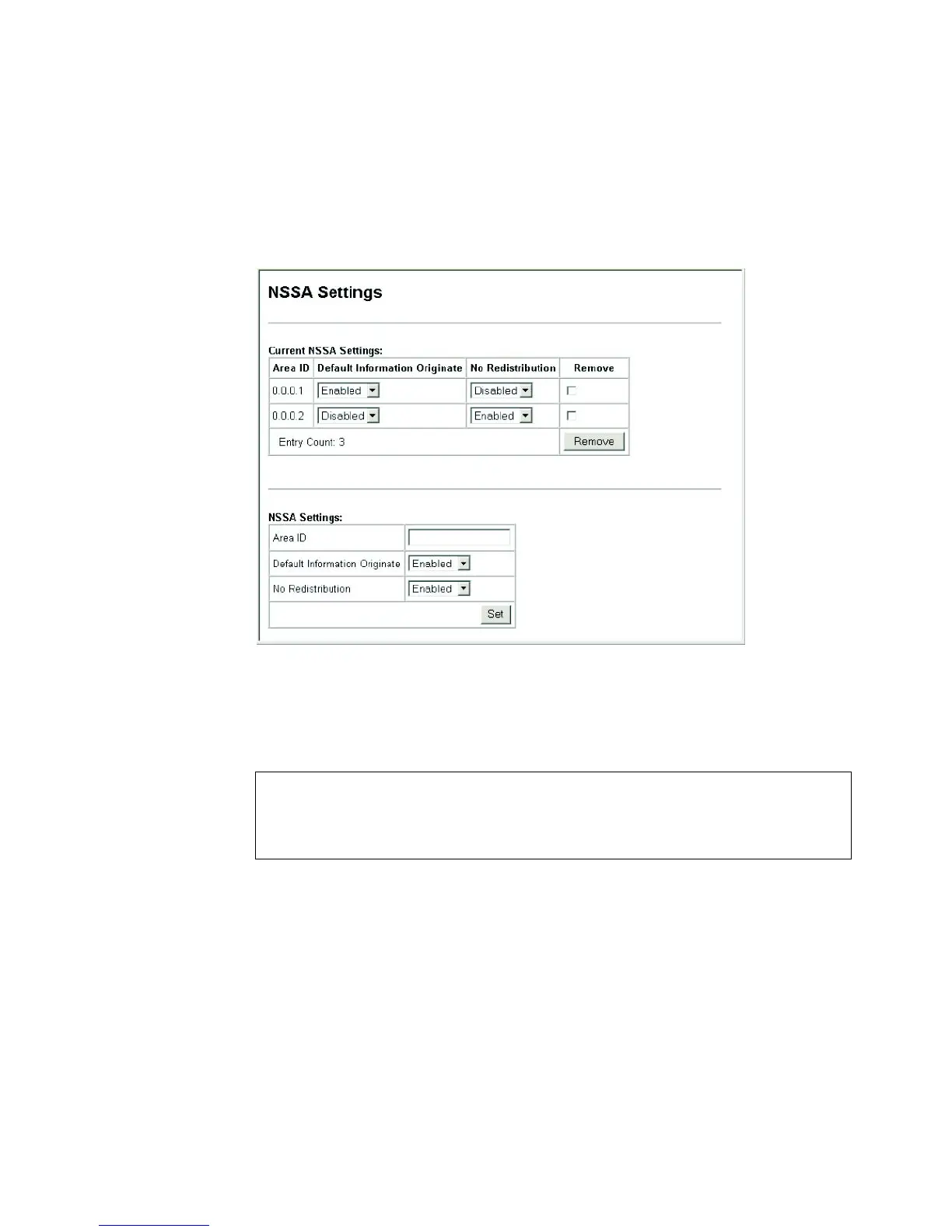

Figure 210 OSPF NSSA Settings
CLI - This example configures area 0.0.0.1 as a stub and sets the cost for the
default summary route to 10.
6.20.10.10 Displaying Link State Database Information
OSPF routers advertise routes using Link State Advertisements (LSAs). The full
collection of LSAs collected by a router interface from the attached area is
known as a link state database. Routers that are connected to multiple
interfaces will have a separate database for each area. Each router in the same
area should have an identical database describing the topology for that area,
and the shortest path to external destinations.
Console(config-router)#area 0.0.0.1 nssa
default-information- originate
Console(config-router)#area 0.0.0.2 nssa no-redistribution
Console(config-router)#
