No outputs from SDI OUT1/2, 3/4, or COMPOSITE OUT1/2.
Clicking block (1) on the Video block diagram when the FA-95CO option is installed opens the

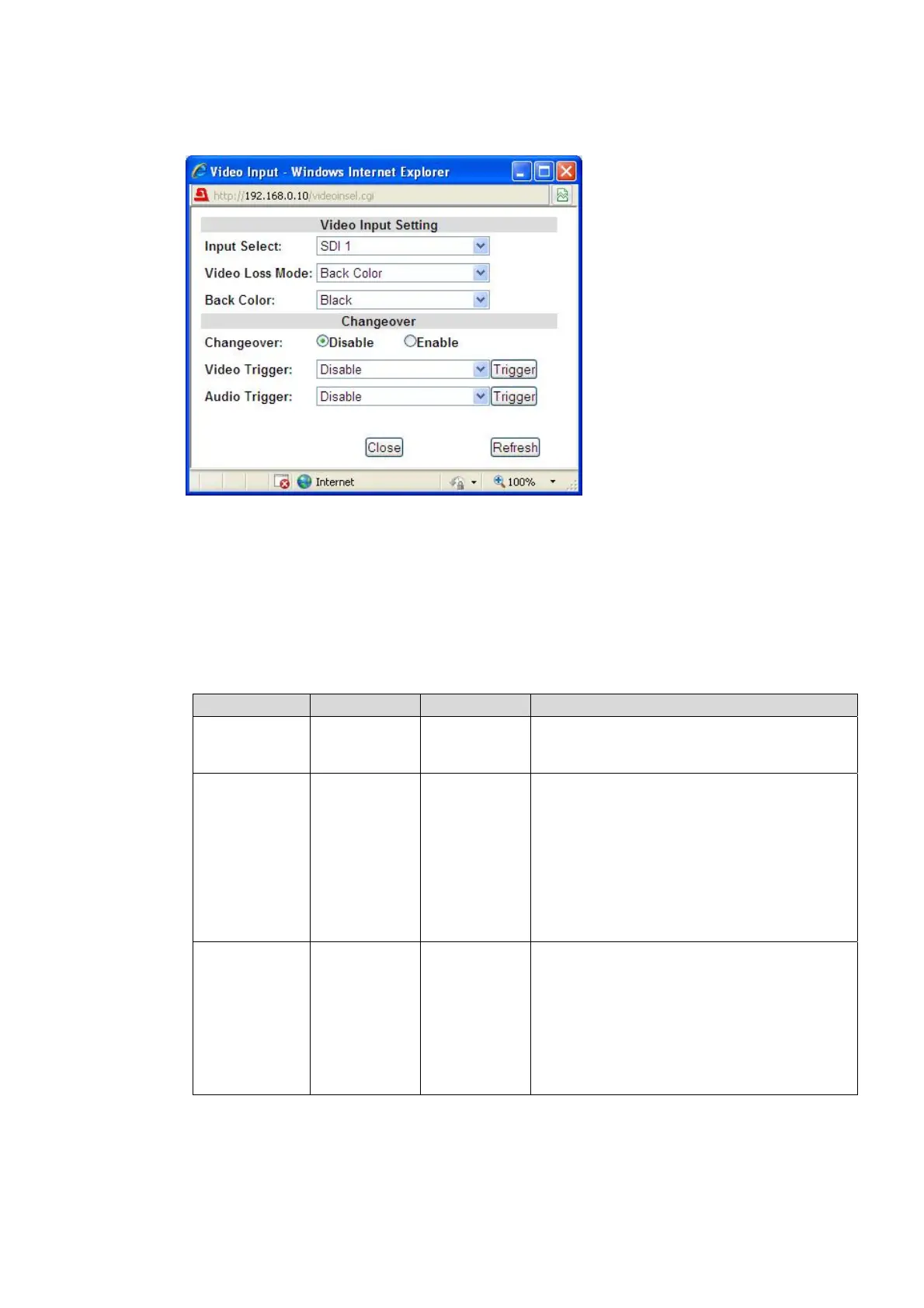

Video Input Setting dialog box as shown below.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
 Video Input Setting
If Changeover is disabled, settings are the same as described in the previous page.
If Changeover is enabled, the Input Select setting cannot be changed.
To change the input selection, disable Changeover.
 Changeover
Parameter Default Setting range Description
Changeover Disable
Disable
Enable
Disables or enables changeover.
* Changeover cannot be enabled unless Input
Select is set to SDI 1.
Video Trigger Disable
Disable
Enable
Selects changeover trigger mode for below 4
video triggers:
SDI Error Trigger
Format Error Trigger
CRC Error Trigger
Black Video Trigger
Disable: Disables auto changeover by the
video trigger.
Enable: Performs a changeover if any video
trigger is activated.
Audio Trigger Disable
Disable
Enable
Selects changeover trigger mode for below 3
audio triggers:
Audio Loss Trigger
Audio Error Trigger
Silence Error Trigger
Disable: Disables auto changeover by the
audio trigger.
Enable: Performs a changeover if any audio
trigger is activated.
