9-3-7. Audio Master Settings

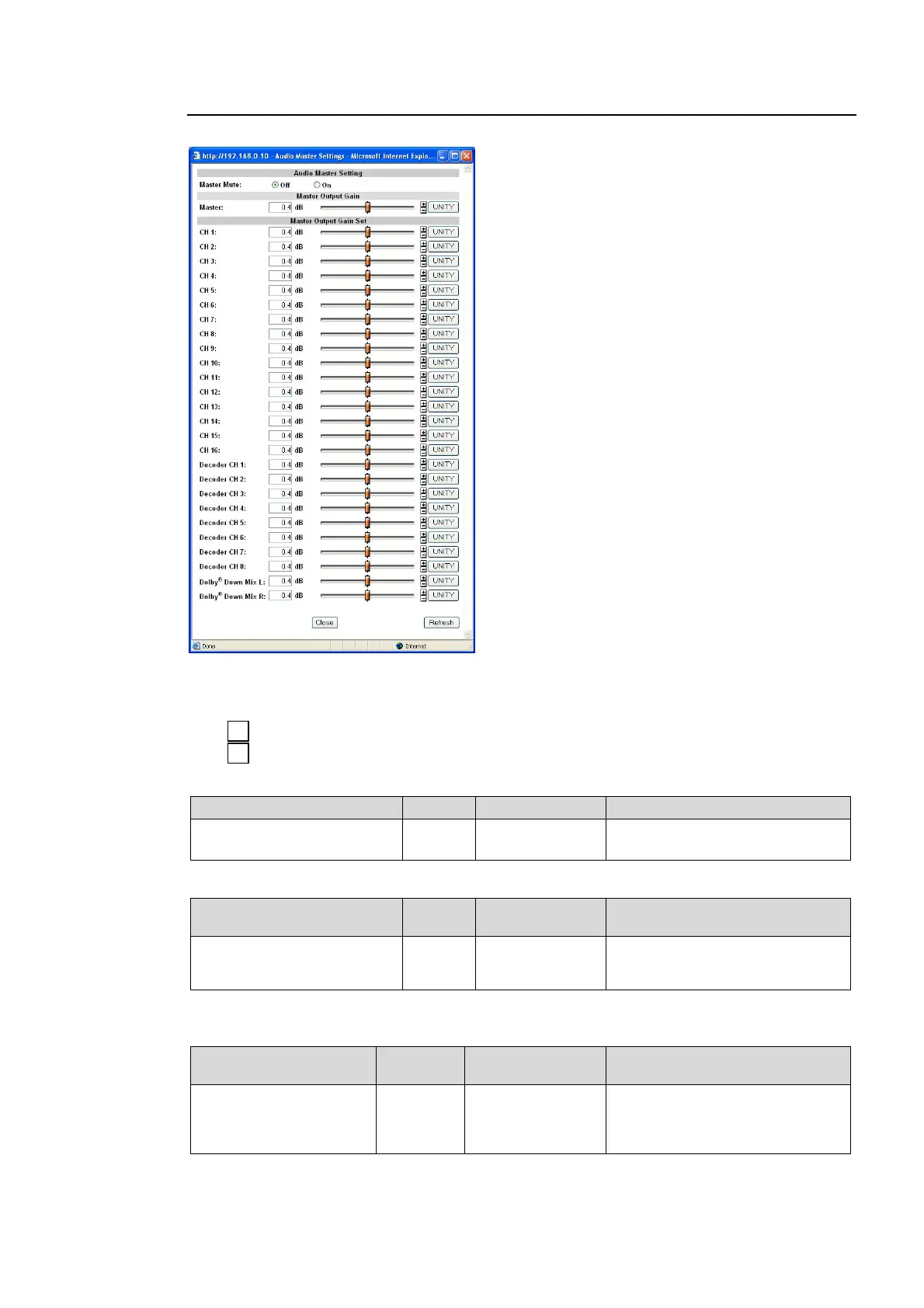

Clicking block (7) on the audio block diagram opens the Audio Master Setting dialog box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
 Audio Master Settings
Parameter Default Setting range Description
Master Mute Off
Off
On
ON: Mutes all audio channels that
will be internally processed.
 Master Output Gain
Parameter Default
Setting range
(Steps)
Description
Master 0.0dB
-20.0 - +20.0 dB
(0.1 dB)
Sets the offset to the audio gain
for all audio channels CH1
through 16.
* Master Mute is not effective on NON-PCM outputs. NON-PCM output signals pass through.
 Audio Output Gain Set (Settings)
Parameter Default
Setting range
(Steps)
Description
CH1-CH16
Decoder CH1-CH8
*2
Dolby Down Mix L/R
*2
0.0dB
-20.0 - +20.0 dB
*1
(0.1 dB)
Sets audio gain for the Dolby
decoder and CH1 through CH16
that are selected under Source
Select.
*1 The total value of Master and individual channel cannot exceed the setting range. The
setting value will stop at the end of the range.
*2 Selectable only if FA-95D-D option is installed.
+
-
