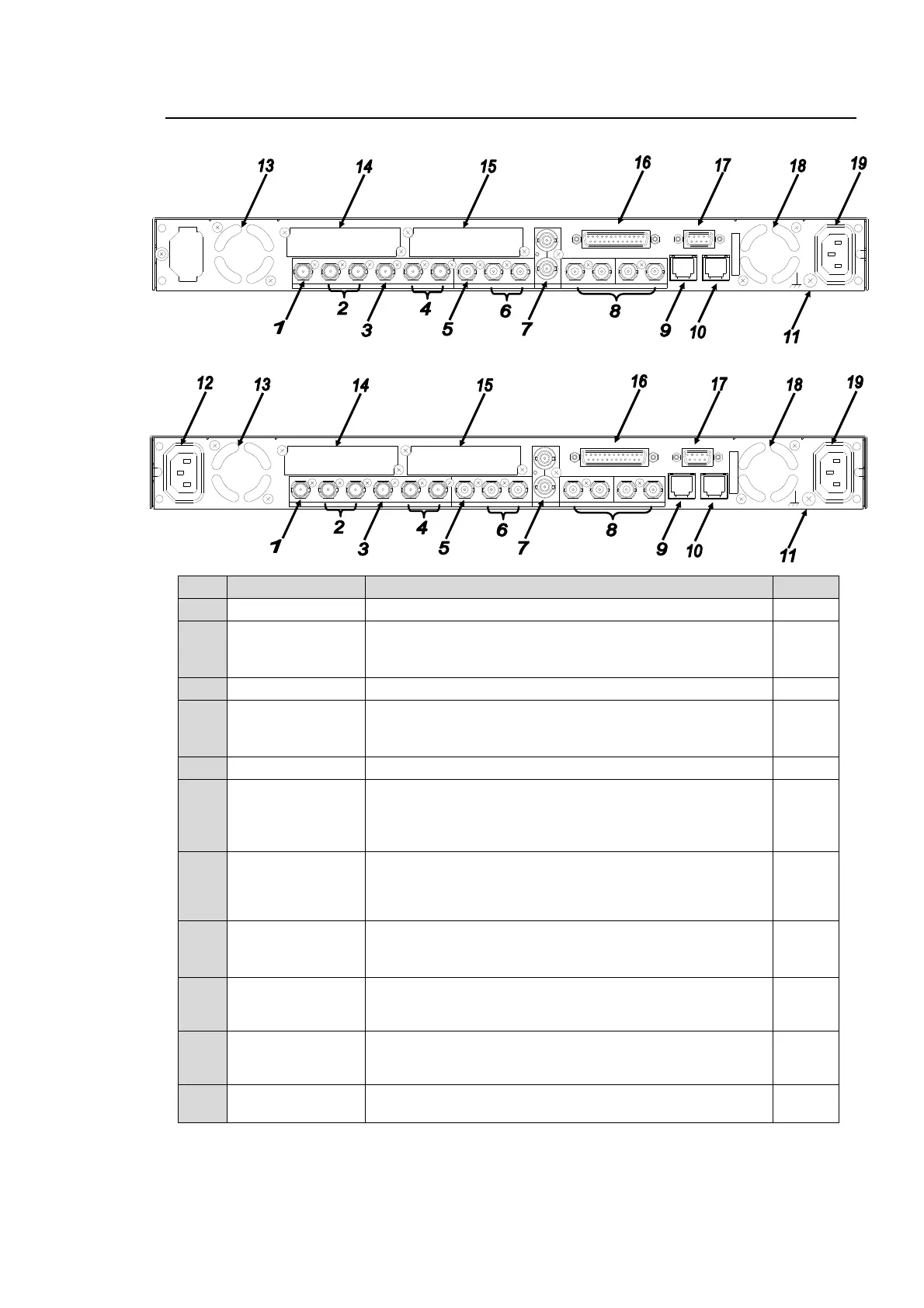

2-2. Rear Panel
FA-9500
FA-9500 with the FA-95PS option installed
No Name Description Ref.
1 SDI IN 1 Used for HD/SD-SDI video input 1. 5-7
2 SDI OUT 1-2
Used for HD/SD-SDI video output 1.
The input signal in SDI IN 1 is output from SDI OUT1
when BY-PASS is enabled or the unit is turned off.
3 SDI IN 2 Used for HD/SD-SDI video input 2. 5-7
4 SDI OUT 3-4
Used for HD/SD-SDI video output 2.
The input signal in SDI IN 2 is output from SDI OUT3
when BY-PASS is enabled or the unit is turned off.
5 COMPOSITE IN Used for analog composite video input. 5-7
6
COMPOSITE
OUT 1-2
Used for analog composite video output.
The input signal in COMPOSITE IN is output from
COMPOSITE OUT1 when BY-PASS is enabled or the
unit is turned off.
7 GENLOCK IN
Used for reference signal input (black burst or tri-level
sync) to synchronize the system. The bottom connector is
for a loop through. It must be terminated at 75 ohm when
not in use.
8
DIGITAL AUDIO
IO
1/2 - 7/8
Used for digital audio inputs and outputs. Select whether
to use for input or output as in section 6-2-5 “AES I/O
SETUP”.
6-2-5
9 LAN1
A 1000/100BASE-TX/10BASE-T Ethernet LAN port.
Used to connect an external remote control unit or to
transfer data to an external device. RJ-45
10 LAN2
A 1000/100BASE-TX/10BASE-T Ethernet LAN port.
Used to connect an external remote control unit or to
transfer data to an external device. RJ-45 (For future use)
11 Ground Terminal
Used to ground the unit to protect operators against static
electricity and electrical shock.
