167
9-3-2. AES Audio Input Settings

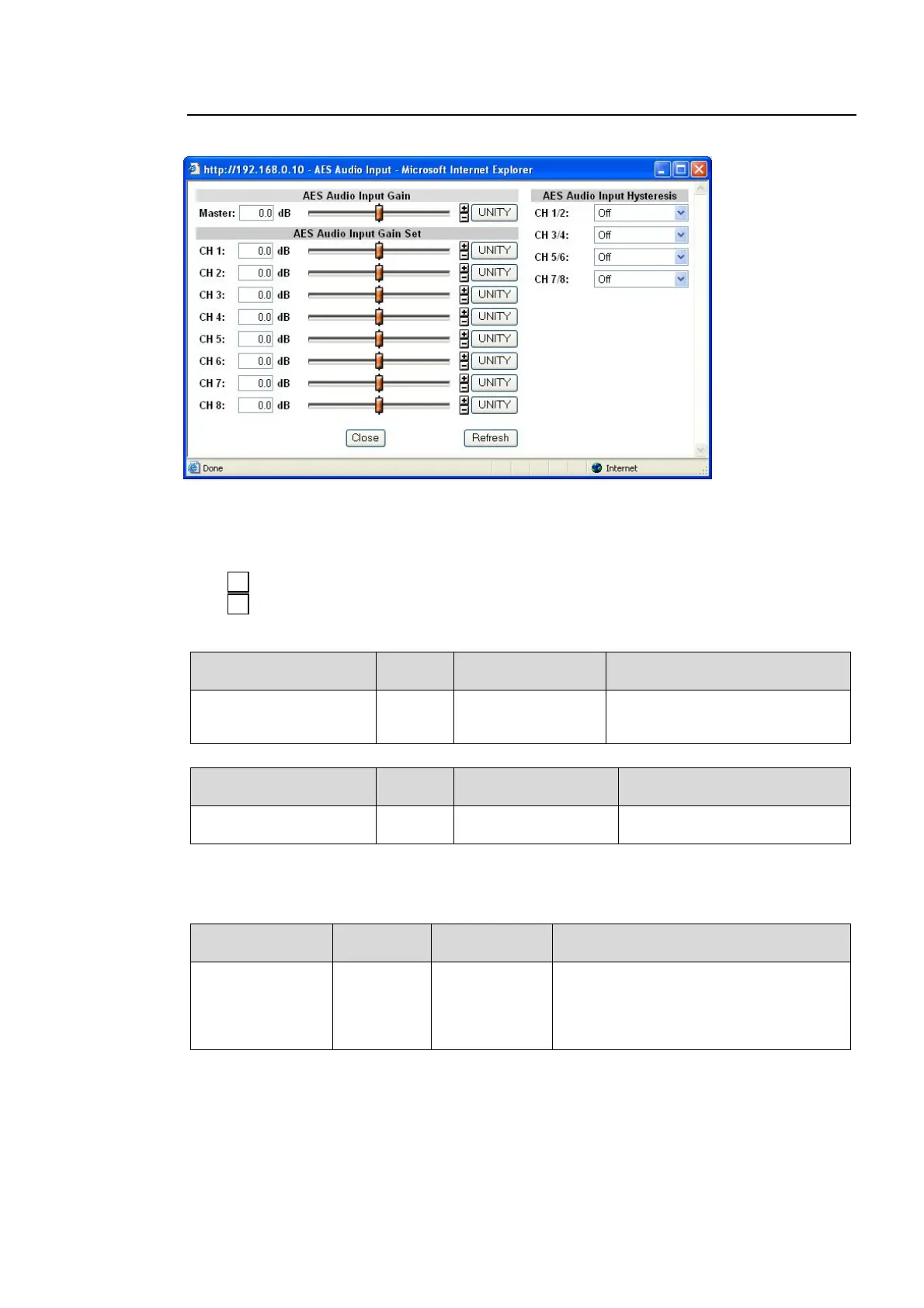

Clicking block (2) on the audio block diagram opens the AES Audio Input dialog box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
AES Audio Input Gain
Parameter Default
Setting range
(Steps)
Description
Master 0.0dB
-20.0 - +20.0 dB
(0.1 dB)
Sets the offset to the input gain for
all channels CH1 to 8 of AES
inputs.
AES Audio Input Gain Set (Settings)
Parameter Default
Setting range
(Steps)
Description
CH1 - CH8 0.0 dB
-20.0 - +20.0 dB
*1
(0.1 dB)
Sets the input gain for the
individual AES channel
*1 The total value of Master and individual channel cannot exceed the setting range. The
setting value will stop at the end of the range.
AES Audio Input Hysteresis
Parameter Default
Setting range
(Steps)
Description
CH1/2 – CH7/8 Off
Off
Group A
Group B
Synchronizes the AES input signals in
group A or B per group.
This setting is effective when using AES
audio signals to output multi-channel
audio signals such as surround sound.
The channel pair with the smallest channel numbers within a group is used as the reference
pair and other channel pairs are synchronized to it. If there is no audio signal in the channel
pair, the next channel pair will be the reference. Audio signals with a phase difference relative
to the reference within ±0.25 of a sample period can be synchronized.
+
-
