9
3-3. To Embed AES Input Signals on SDI Signals
The following describes how to embed 4 channel AES signals on SDI signals in SDI OUT1 – 4.
Settings that need to be checked:
Select SOURCE SEL 1/2 and set SOURCE SET to AES1/2 as described in section 6-5-1
“SOURCE/SRC SEL”.
Also, select SOURCE SEL 3/4, set SOURCE SET to AES3/4 and set SRC OP/BY to AUTO.
NOTE
Provide audio settings, if necessary, as described in section 6-2 “AES AUDIO Settings
(AES AUDIO)”.
AC100 - 240V 50/60 Hz IN 1
FAN2
SER. NO.
LAN2LAN1
REMOTE
DIGITAL AUDIO IN / OUT
7 / 85 / 63 / 41 / 2
ANALOG AUDIO
GENLOCK IN
COMPOSITE
OUT2OUT1IN
B
OUT4OUT3IN 2OUT2OUT1
SDI
IN1
A
FAN1
AC100 - 240V 50/60 Hz IN2

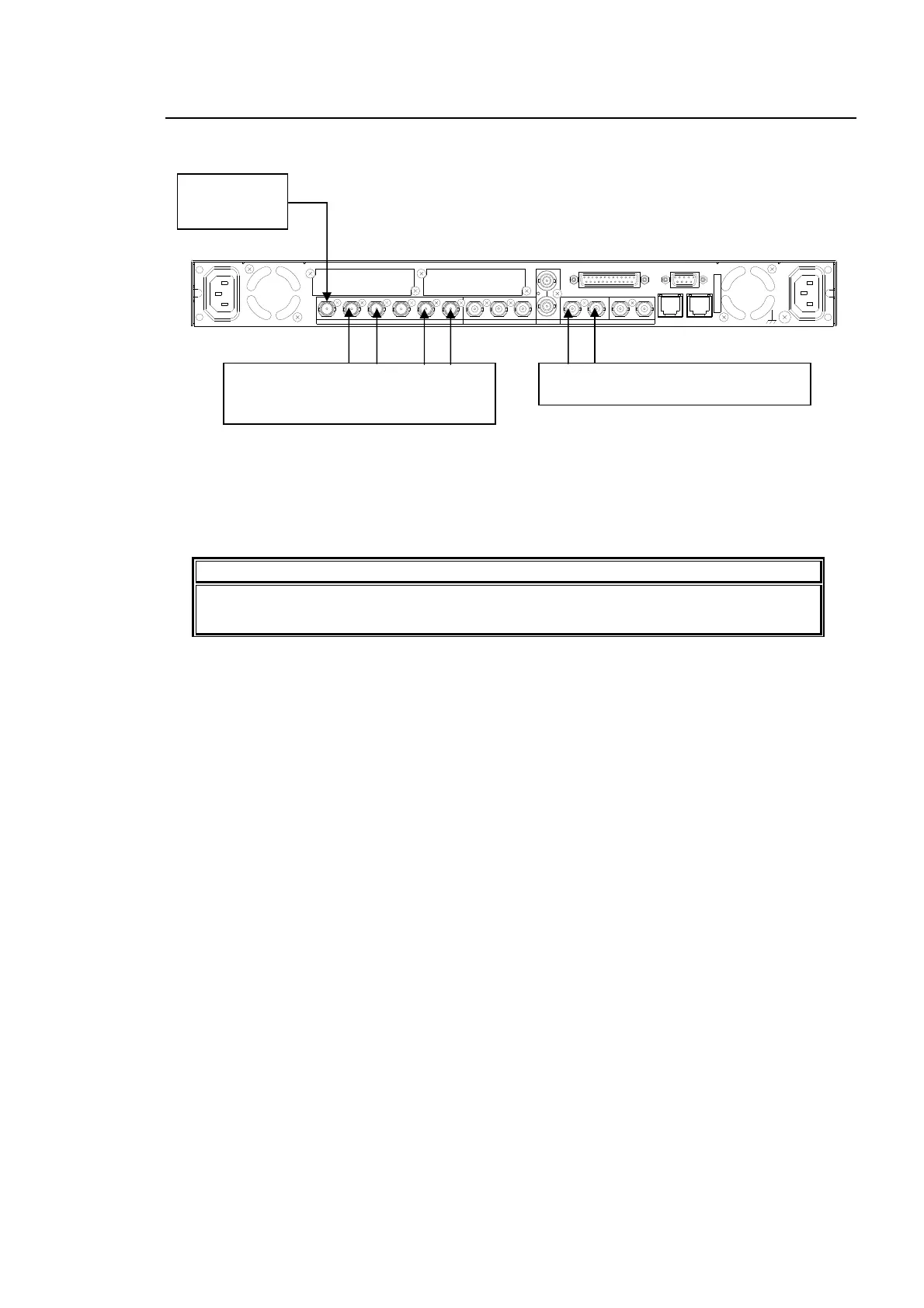

Input an HD/
SD-SDI signal
to SDI IN１.
Input 2-channel AES signals to DIGITAL
AUDIO IO１/2, and IO3/4.
The AES signals are embedded to
AUDIO CH 1 through 4 of output signals
from SDI OUT1 – 4.
To Next Page
