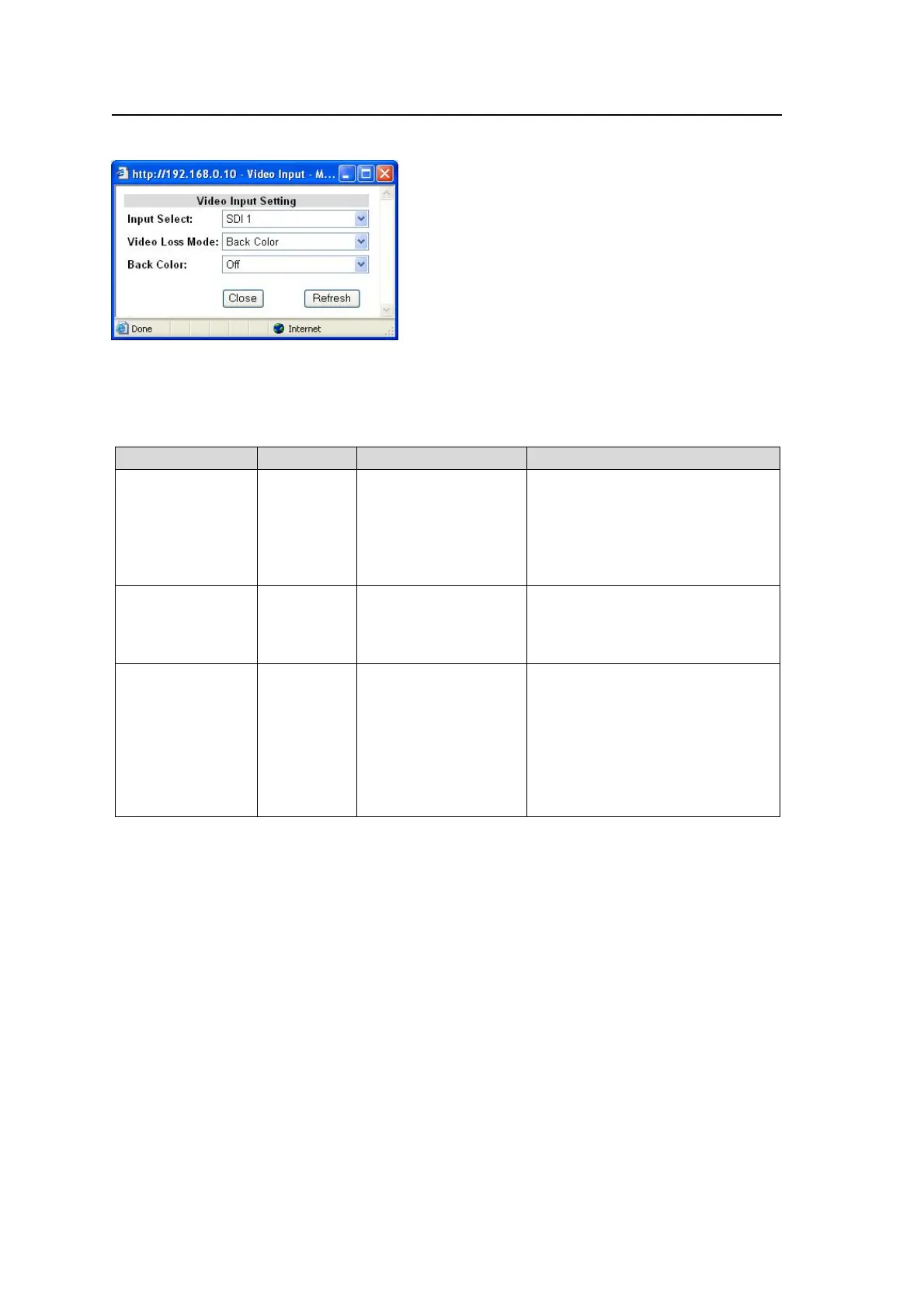

9-2-1. Input Select
Clicking block (1) on the Video block diagram opens the Video Input setting dialog box.
Select setting values for parameters in the respective pull-down menus.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
 Video Input Setting
Parameter Default Setting range Description
Input Select SDI1
SDI1
SDI2
Composite
YPbPr SMPTE
*2
YPbPr BETACAM
*2
RGB
*2
Y/C
*2
Selects an input signal.
Video Loss Mode Back Color
Back Color
Auto Freeze
*1
Color Bar
Output Disable
Selects an operation for the time
the signal input selected under
Input Select is lost.
Back Color Black
Off
Black
Blue
Red
Magenta
Green
Cyan
Yellow
Select a background color.
*1 If Synchro Mode under FS Mode in section 9-4-1 “Video System” is set to Line, AVDL, or
Input Lock, the selected Auto Freeze functions the same as Back Color. In such case, the
“Auto Freeze” display will be grayed out.
*2 Selectable only if FA-95AIO option is installed.
<Video Loss Mode>
Video Loss Mode allows you to select what to output when the input signal selected under
Input Select is lost.
 Back Color
Displays a screen in a color selected under Back Color.
 Auto Freeze
Freezes the last image before loss of signal.
Freezes progressive signals such as 720p in frame freeze mode and other signals in field
freeze mode.
 Color Bar
Outputs SMPTE color bars.
 Output Disable
