3-5. Connecting a Computer

The FA-9500 can be controlled from a computer through a Web browser.

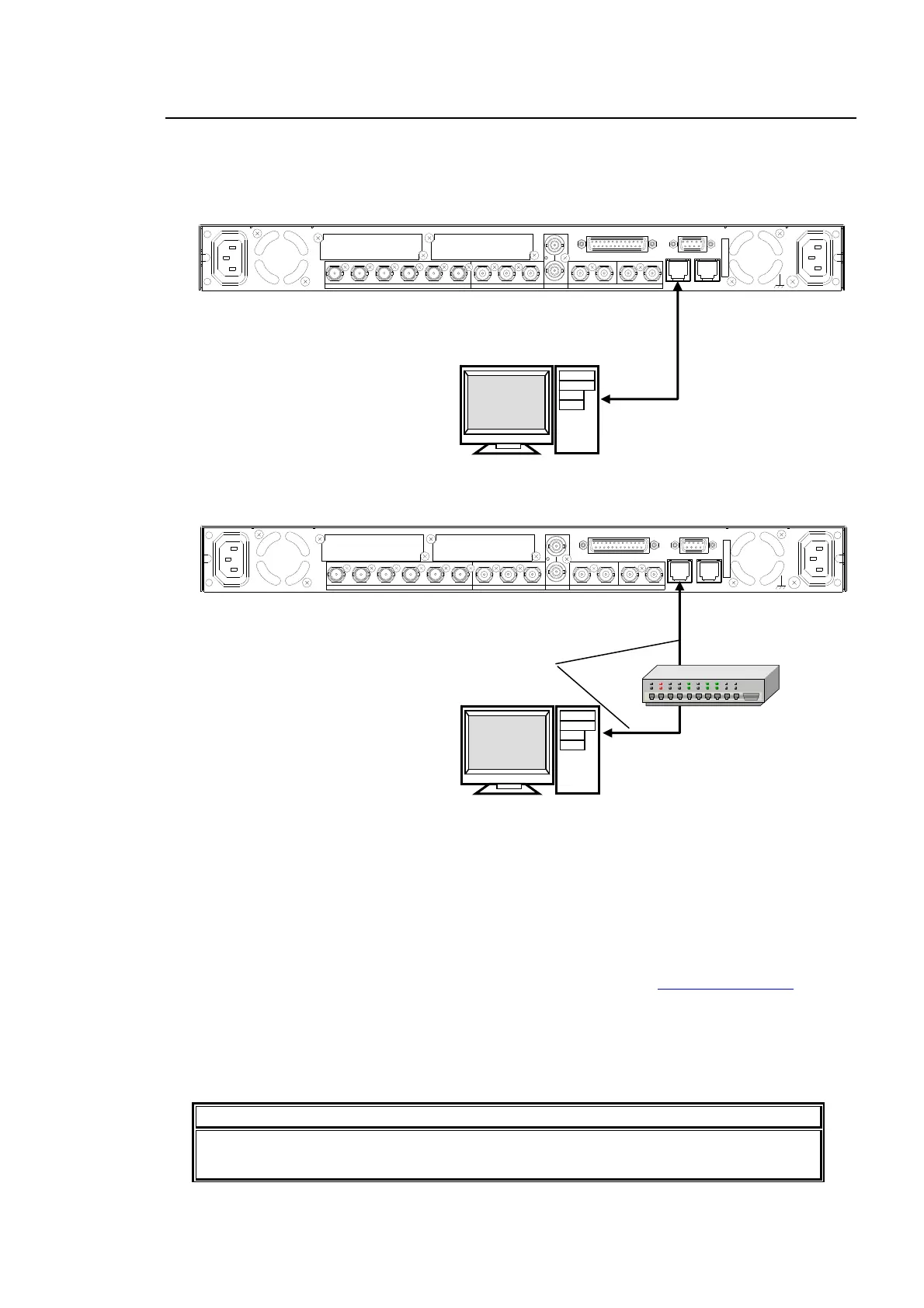

Connect a computer to the FA-9500 as shown below.

 Connection using a crossover LAN cable.

 Connection using a hub

The FA-9500 network settings must be adjusted for your network after purchase.

 The FA-9500’s LAN1 IP address is set to 192.168.0.10 at the factory.

 Set the IPaddress and subnet mask of the computer.

IP address: 192.168.0.1 to 192.168.0.254 (except 192.168.0.10)

Subnet mask: 255.255.255.0

In Windows, open the Local Area Connection Properties dialog box, and open the Internet

Protocol (TCP/IP) Properties window. The settings must be made in the window. See the

user’s manual of your computer for details.

 Start a web browser on your computer, and enter the address as http://192.168.0.10

 Enter the default user name (fa9500), and the default password (foranetwork).

 The FA-9500 control window appears on the web browser window.

 See section 9-8 “Network Settings” for details on changing the FA-9500’s IP address.

 See section 9 “Control via WEB Browser” for details on the FA-9500 web browser control

window.

NOTE

The FA-9500’s IP address can be checked on the front panel display. See section 7-4

“NETWORK INFO” for details.
