9-2-7. Converter2 (Up/Down/Cross)

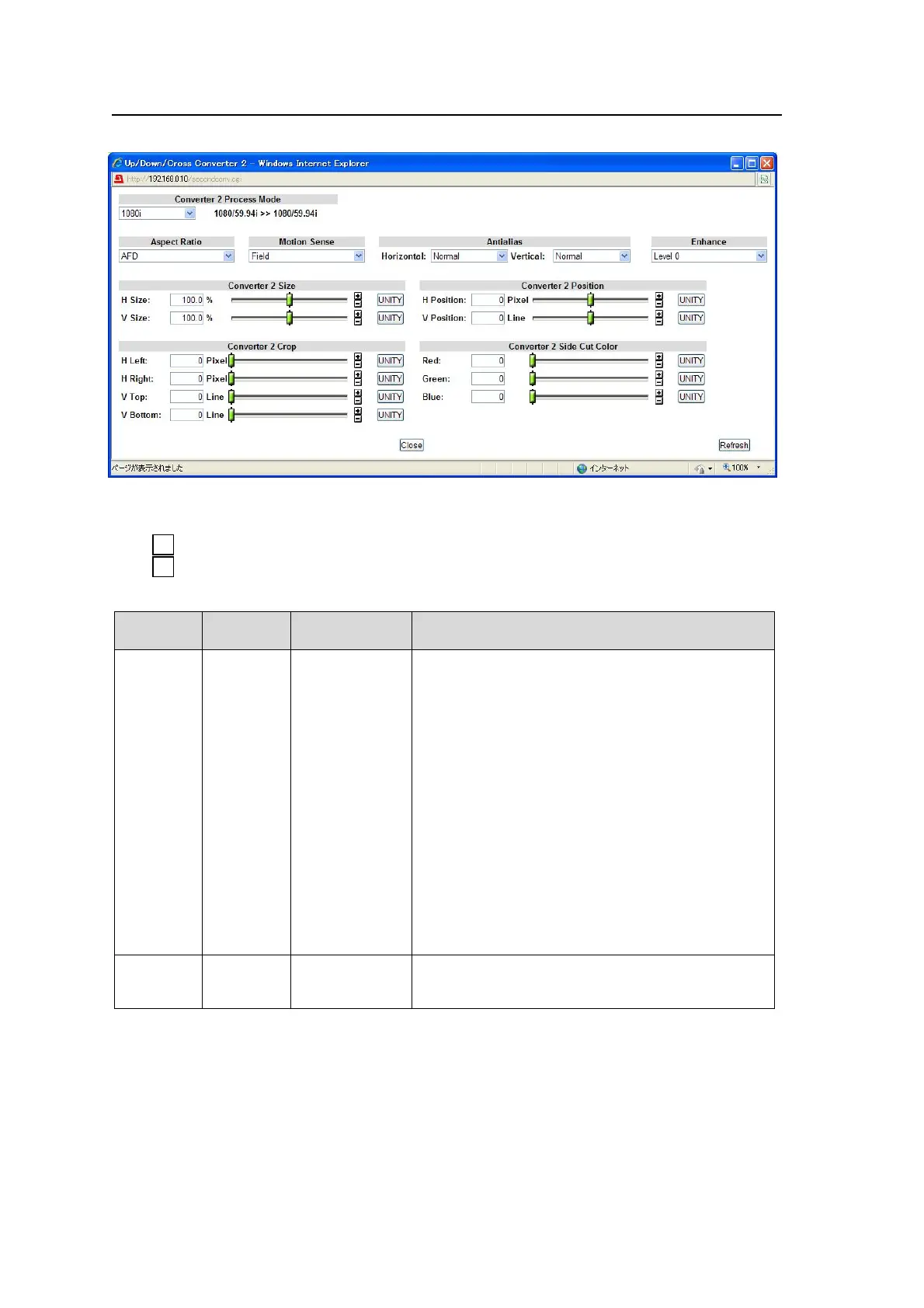

Clicking block (7) on the video block diagram opens the Converter2 setting dialog box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
Converter 2 Process Mode
Parameter Default
Setting range
(Steps)
Description
Mode BY-PASS
BY-PASS
SD
1080i/SD
720p/SD
1080PsF/SD
1080p(3G)/SD
Selects a mode for the Converter2 to convert the
input signal in CONV2.
BY-PASS: Outputs the signal without converting.
SD: Converts the input HD signal to a standard
definition format.
1080i/SD: Converts progressive scan signals to a
1080 interlaced video format. SD signals are output
without converting.
720p/SD: Converts interlaced signals to a 720
progressive video format. Converts interlaced
signals to a 720p progressive video format. SD
signals are output without converting.
1080PsF/SD: Converts interlaced signals to a
1080PsF progressive video format. SD signals are
output without converting.
1080p(3G)/SD: Converts interlaced signals to a
1080p(3G) progressive video format. SD signals
are output without converting.
- - -
Displays the format of the input signal to Converter
2 and the format the signal will be converted to in
Converter 2.
See section 5-4-2 “CONV2 Conversion Table” for the possible conversions performed by
Converter 2.
+
-
