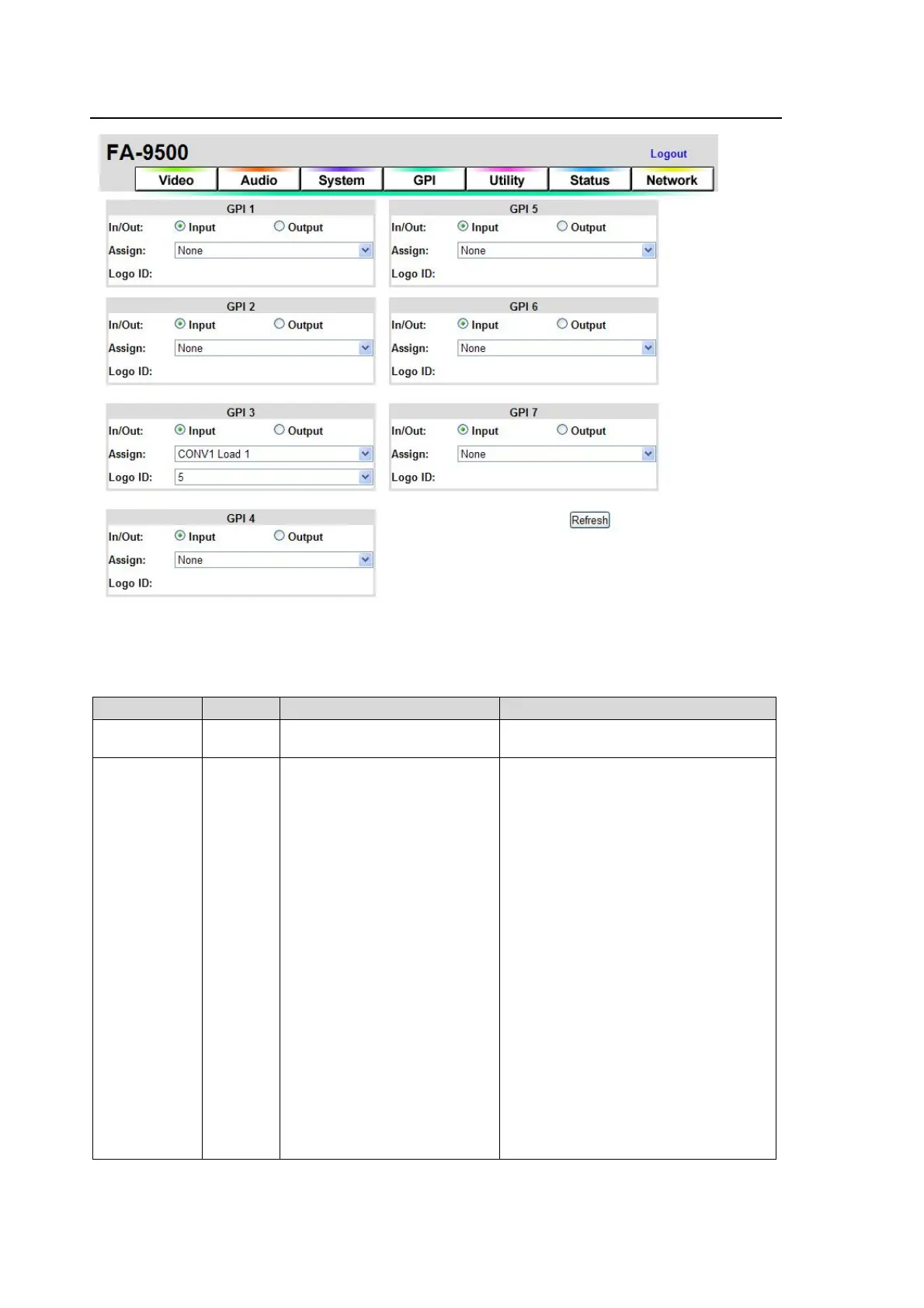

9-5. GPI
If the user name and password are not set in the USER SETTING page (see section 9-8-5), the
Logout is not shown.
Click Refresh to update the settings.
Parameter Default Setting range(Steps) Description
In/Out
*1
Input
Input
Output
Selects whether to use GPI pins 1
through 7 each for input or tally output.
Assign
*2
None
In case Input/Output is set to
Input
None
BY-PASS
*2
Freeze
*2
*6
Full Color Bar
*2
75% Color Bar
*2
SMPTE Color Bar
*2
Ramp
*2
Input SDI1
*2
*4
*7
Input SDI2
*2
*4*7
Input Composite
*2
*7
Input YPbPr SMPTE
*9
Input YPbPr BETACAM
*9
Input RGB
*9
Input Y/C
*9
Default
Event1 - 100
*2
Changeover Enable
*5
Changeover Disable
*5
CONV1 Keyer
CONV2 Keyer
CONV1 Load 1 - 7
CONV2 Load 1 - 7
Assigns a function to GPI pins 1
through 7 according to the selection
under In/Out.
