FOR-A FA-9500 User Manual

259
20-1. AFD Codes
 AFD 4:3 code
WSS name
FA-9500-specified name
(VI, S2016)

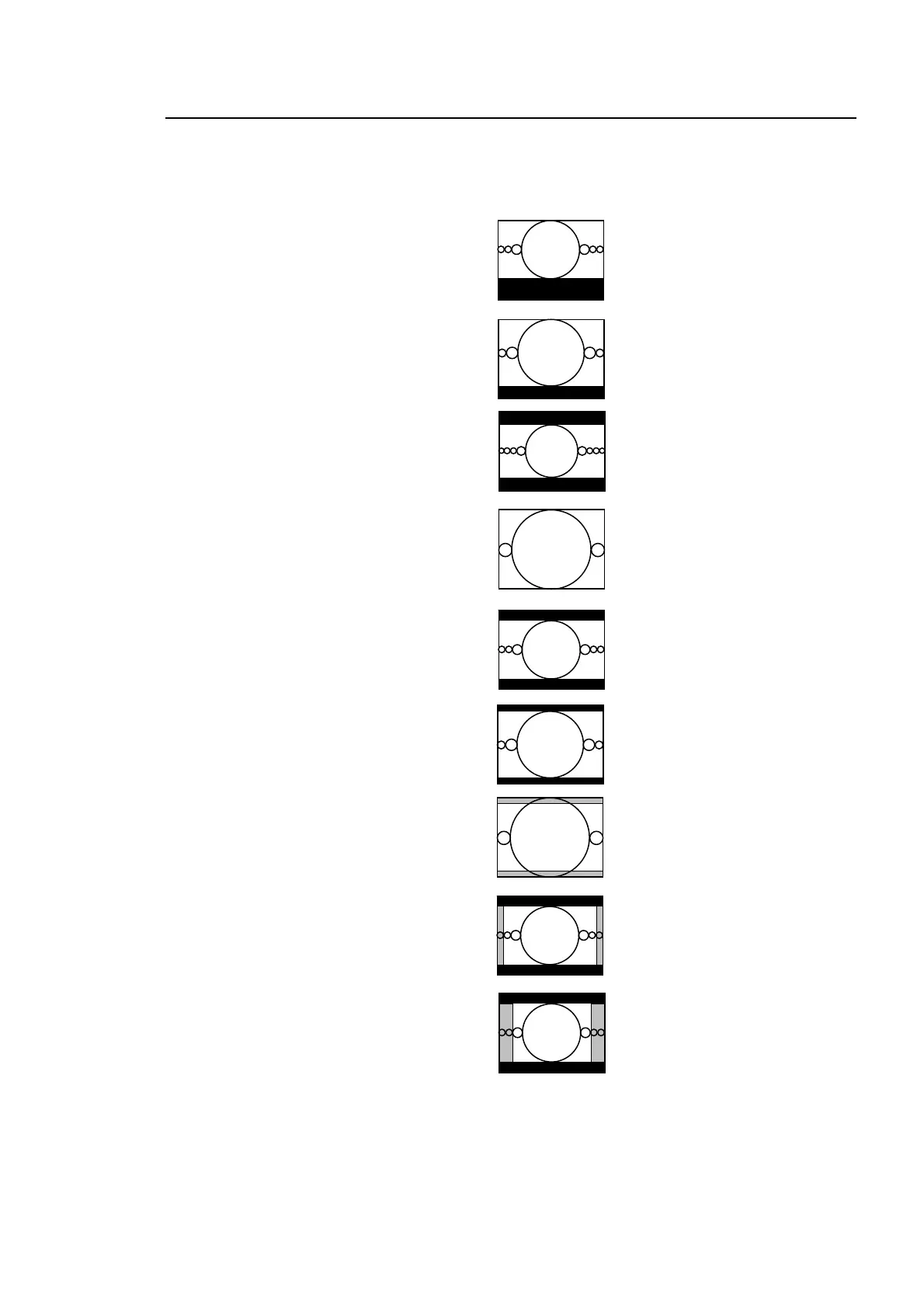

illustration in a 4:3
coded frame
Description
BOX 16:9 TOP
4:3 L 16:9 T
Image with a 16:9 aspect ratio
as a letterbox on top of a 4:3
coded frame.
BOX 14:9 TOP
4:3 L 14:9 T
Image with a 14:9 aspect ratio
as a letterbox on top of a 4:3
coded frame.
BOX 16:9 CTR
4:3 L> 16:9
Image with an aspect ratio
greater than 16:9 as a
vertically centered letterbox in
a 4:3 coded frame.
F 4:3
4:3 F 4:3
Image is full frame, with an
aspect ratio the same as that
of the 4:3 coded frame.
BOX 16:9 CTR
4:3L16:9PRTD
Image with a 16:9 aspect ratio
as a vertically centered
letterbox in a 4:3 coded
frame.
BOX 14:9 CTR
4:3 L 14:9
Image with a 14:9 aspect ratio
as a vertically centered
letterbox in a 4:3 coded
frame.
F 14:9 CTR PRTD
4:3 F ALT14:9
Image with a 4:3 aspect ratio
and with an alternative 14:9
center in a 4:3 coded frame.
None
4:3 L ALT 14:9
Image with a 16:9 aspect ratio
and alternative 14:9 center as
a vertically centered letterbox
in a 4:3 coded frame.
None
4:3 L ALT 4:3
Image with a 16:9 aspect ratio
and alternative 4:3 center as
a vertically centered letterbox
in a 4:3 coded frame.
