9-3-3. Analog Input Gain/Level

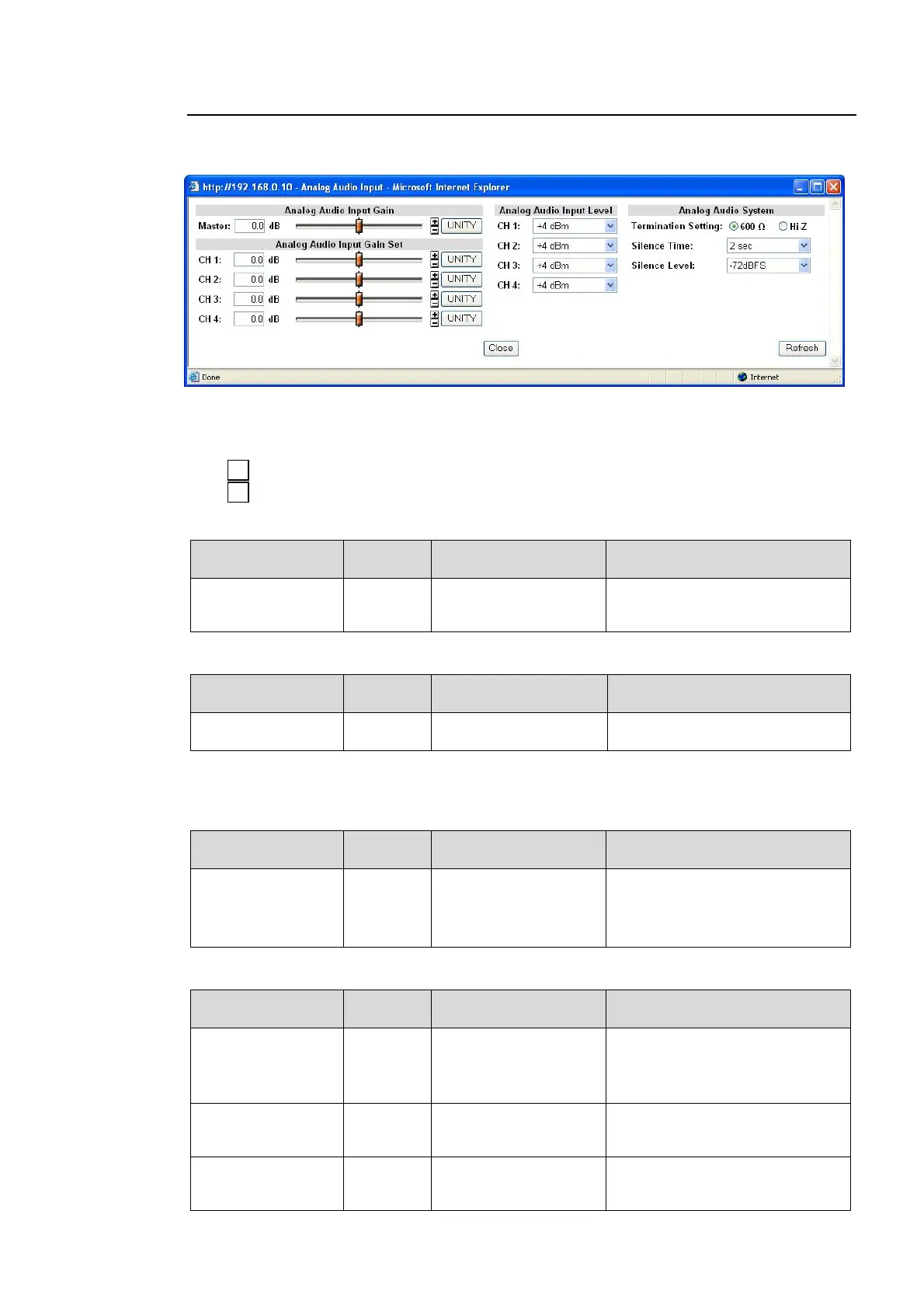

Clicking block (3) on the audio block diagram opens the Analog Audio Input Gain/Level dialog
box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
Analog Audio Input Gain
Parameter Default
Setting range
(Steps)
Description
Master 0.0dB
-20.0 - +20.0 dB
(0.1 dB)
Sets the offset to the input gain for
all analog audio channels CH1 to
CH4.
Analog Audio Input Gain Set (Settings)
Parameter Default
Setting range
(Steps)
Description
CH1 – CH4 0.0 dB
-20.0 - +20.0 dB
*1
(0.1 dB)
Sets the input gain for the
individual Analog Audio channel.
*1 The total value of Master and indivual channel cannot exceed the setting range. The
setting value will stop at the end of the range.
Analog Audio Input Level
Parameter Default
Setting range
(Steps)
Description
CH1-4 +4dBm
-10 dBm
0 dBm
+4 dBm
+8 dBm
Sets the signal level for the
individual Analog Audio channel.
Analog Audio System
Parameter Default
Setting range
(Steps)
Description
Termination Setting 600Ω
600Ω
Hi-Z
Selects how to terminate the
analog inputs 1/2 and 3/4.
600Ω: 600Ω termination
Hi-Z: High-impedance
Silence Time 2sec
1 – 10 sec
(1 sec)
Sets the duration to determine
whether the input analog audio is
silent.
Silence Level -72dBFS
-72 - -48 dBFS
(6dBFS)
Sets the audio level to determine
whether the input analog audio is
silent.
+
-
