9-2-6. Converter1

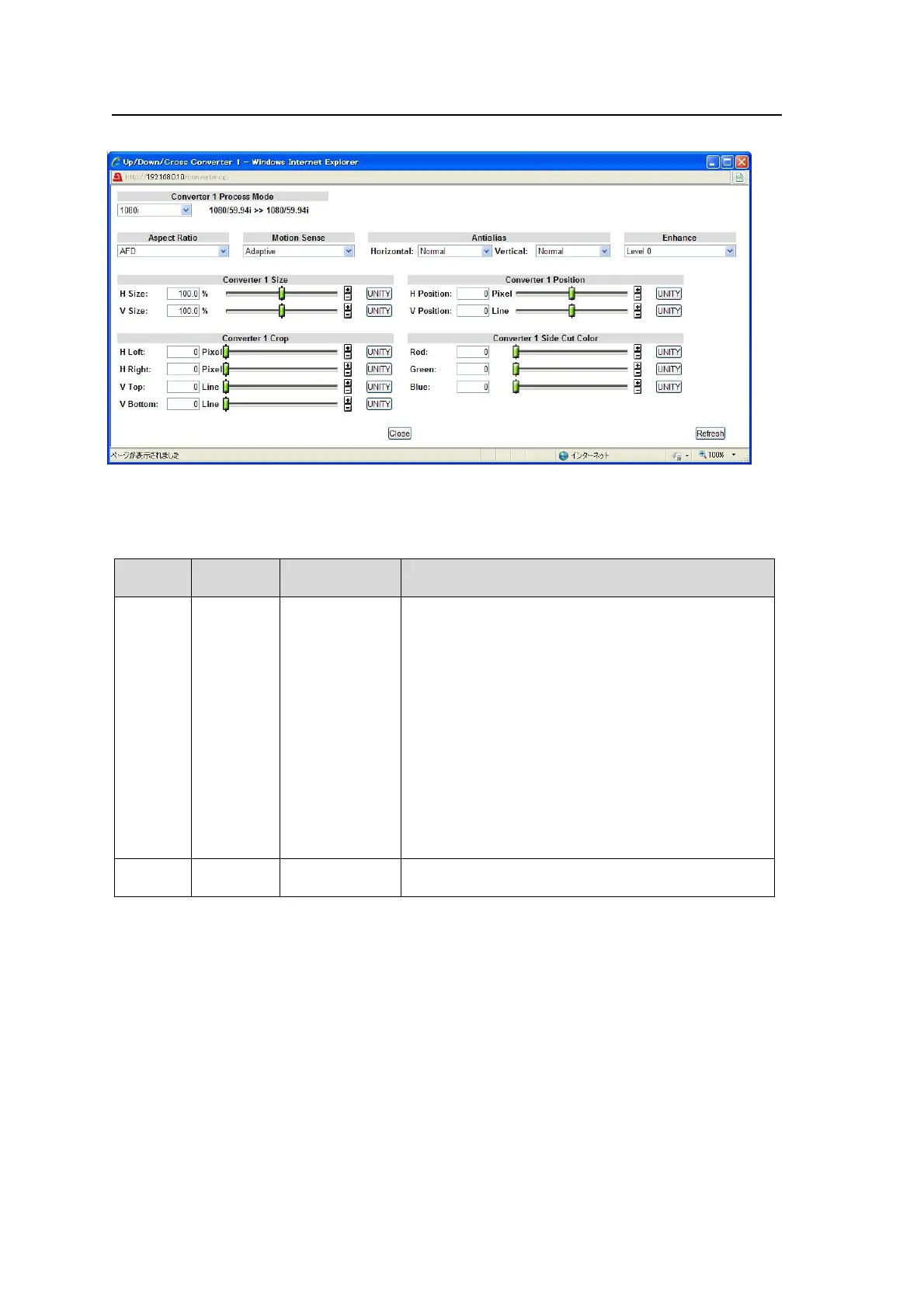

Clicking block (6) on the video block diagram opens the Converter1 setting dialog box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
Converter1 Process Mode
Paramet
er
Default
Setting range
(Steps)
Description
Mode BY-PASS
BY-PASS
SD
1080i
720p
1080PsF
1080p(3G)
Selects a mode for UP/DOWN Converter1 to convert
the input signal in the CONV1 connector.
BY-PASS: Outputs the signal without converting.
SD: Converts signals to a standard definition format.
1080i: Converts signals to a 1080i format.
720p: Converts CONV 1 input signals to a 720p
format.
1080PsF: Converts CONV 1 input signals to a
1080PsF format.
1080P(3G): Converts signals to a 3G-SDI 1080p
format.
Auto Mode: Displayed if Video Output Mode is set to
Auto in the 9-2-11 Output Select menu. The CONV1
mode cannot be manually changed. To change the
mode, set Video Output Mode to Fix.
- - -
Displays the format of the input signal to CONV1 and
the format the signal will be converted to in CONV1.
See section 5-3-2 “CONV1 Conversion Table” for details on conversions.
