FOR-A FA-9500 - AES Audio Output Settings

181
9-3-12. AES Audio Output Settings

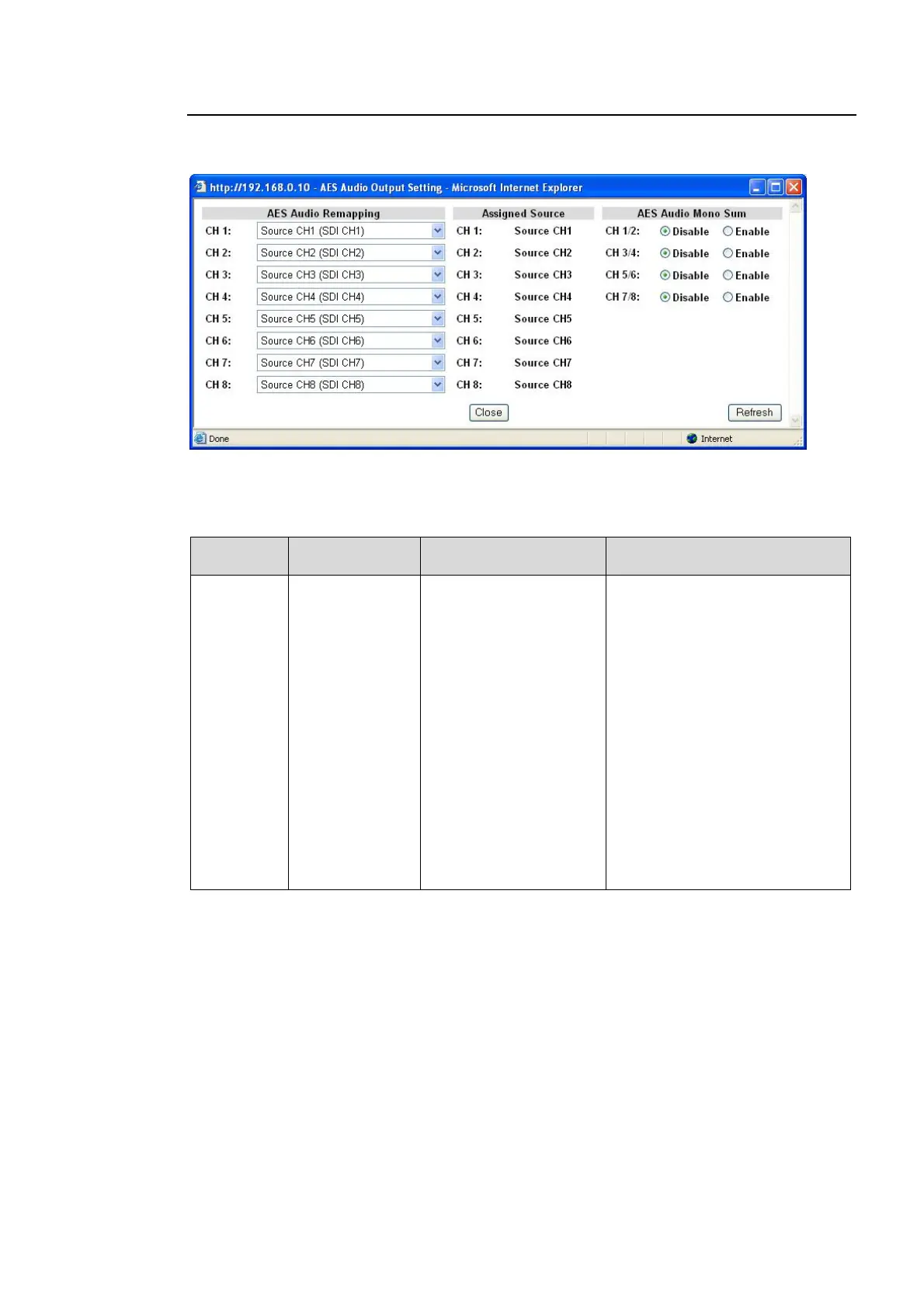

Clicking block (12) on the audio block diagram opens the AES Audio Output Setting dialog
box.
After completing the settings, click Close to close the dialog box.
Click Refresh to update the settings.
 AES Audio Remapping
Parameter Default
Setting range
(Steps)
Description
CH1-8
Source channel
of the same
channel number
with the
parameter
Source CH 1 – 16
*1
500Hz
1kHz
Silence
Down Mix-L
*2
DownMix-R
*2
Dolby Decoder 1- 8
*3 *6
Dolby Down Mix L
*4 *6
Dolby Down Mix R
*4 *6
Dolby Encoder 1 – 2
*5 *7
Selects source audio signals to
assign to the AES output
channels.
Source CH 1-16: Signals
assigned to SOURCE channels
500Hz/1kHz: Test signal
Silence: Mute signal
Down Mix-L/R: Downmixed
signal generated from SOURCE
channels.
Dolby Decoder 1-8: Dolby
decoded PCM signals
Dolby Down Mix L/R:
Downmixed signal generated
from Dolby decoded PCM
signals.
Dolby Encoder 1-2: Encoded
Dolby E signal of selected signals
of SOURCE channels.
*1 See section 9-3-4. “Source Select” for details on Source settings.
*2 See section 9-3-9. “5.1Ch Down Mix” for details on Down Mix settings.
*3 See section 9-3-14. “Dolby E/Digital Decoder” for details on Dolby Decoder settings.
*4 See section 9-3-14. “Dolby E/Digital Decoder” for details onDolby Down Mix settings.
*5 See section 9-3-16. “Dolby E Encoder” for details on Dolby Encoder settings.
*6 Shown only if FA-95D-D option is installed.
*7 Shown only if FA-95DE-E option is installed.
 Auto Channel Pairing for non-PCM Audio Inputs
The FA-9500 recognizes non-PCM audio input signals in L/R channel pair units, and adjusts
assignments according to the signal selected for the L channel.
Source channels that are assigned after such adjustments are shown as Assigned Sources.
L/R channel pairs are Source 1/2, Source 3/4......Source 15/16.
The channel assignments that are changed by the adjustment will be shown with “＊” as
“CH1:＊Source2”.
