9-4. SYSTEM Settings

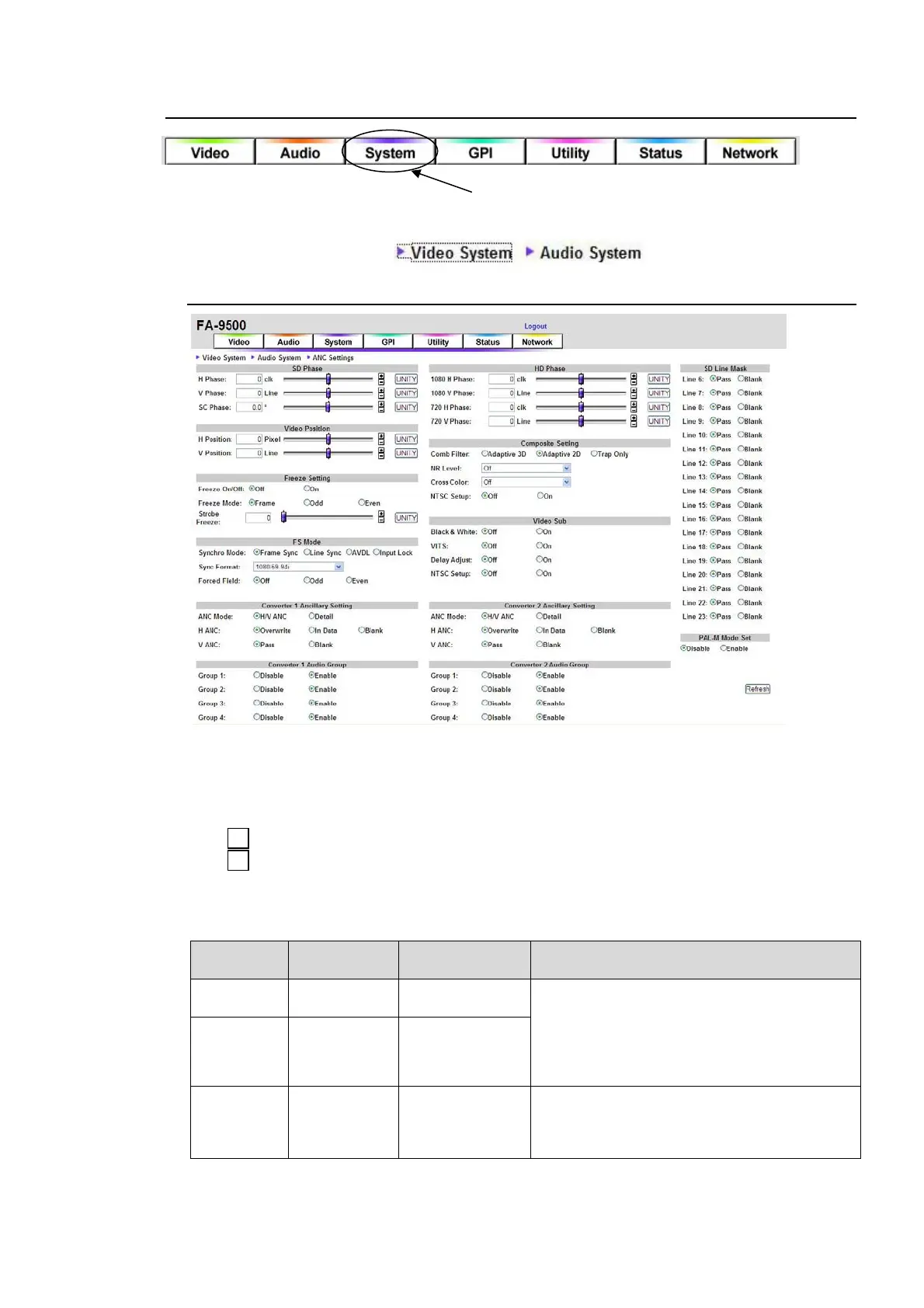

Click the System tab at the top of the page. The System setting window will be displayed.
The system setting window consists of Video System and Audio System pages.
Those pages are alternated by at the top of the page.
9-4-1. Video System
*1 NTSC Setup On/Off radio buttons will appear under Composite Setting if the FA-95AIO
option is not installed, and will appear under Video Sub if the option is installed.
Click Refresh to update the settings.
Click Unity to reset to the default settings.
Click to increase the value by the smallest steps.
Click to decrease the value by the smallest steps.
If the user name and password are not set in the USER SETTING page (see section 9-8-5),
the Logout is not shown.
 SD Phase
*1
Parameter Default
Setting range
(Steps)
Description
H Phase 0 clk
-864 - 864 clk
(1 clk)
Adjusts the horizontal and vertical phases of
the system referring to genlock signal. This
setting is applied to SD output signals.
V Phase
0 Line
*2
(Frame, Input)
1 Line
*2
(Line, AVDL)
-313 - 313 Lines
(1 Lines)
SC Phase 0° -179.8°- 180°
Adjusts the subcarrier phase of composite and
Y/C output signals referring to the B.B.
genlock signal.
Not adjustable with the tri-level genlock signal.
*1 These settings cannot be made if there is no reference signal input.
*2 The default value varies depending on the Synchro Mode setting as shown in the below table. The set
value will be reset to its relevant default value whenever the Synchro Mode setting is changed.
+
-
