4-2-1. Accessing Menus
Every press of the VIDEO/AUDIO button alternates the menu button assignments between
video menus and audio menus. The button indicators light up green when the buttons are
accessible to video menus that are indicated on the top row of each menu button. They light
up orange when they are accessible to audio menus that are indicated on the bottom row of
each menu button.
Pressing a menu button displays the corresponding menu on the menu display. Menus are
divided into categories. The single-arrow buttons allow you to move between menus if the
selected menu button has multiple menu pages in the category. The single-arrow button lights
up when there are more menus to be accessed in the direction. If the single-arrow button is
unlit, the direction is not accessible.
The double-arrow buttons allow you to go to the first menu of the menu button.

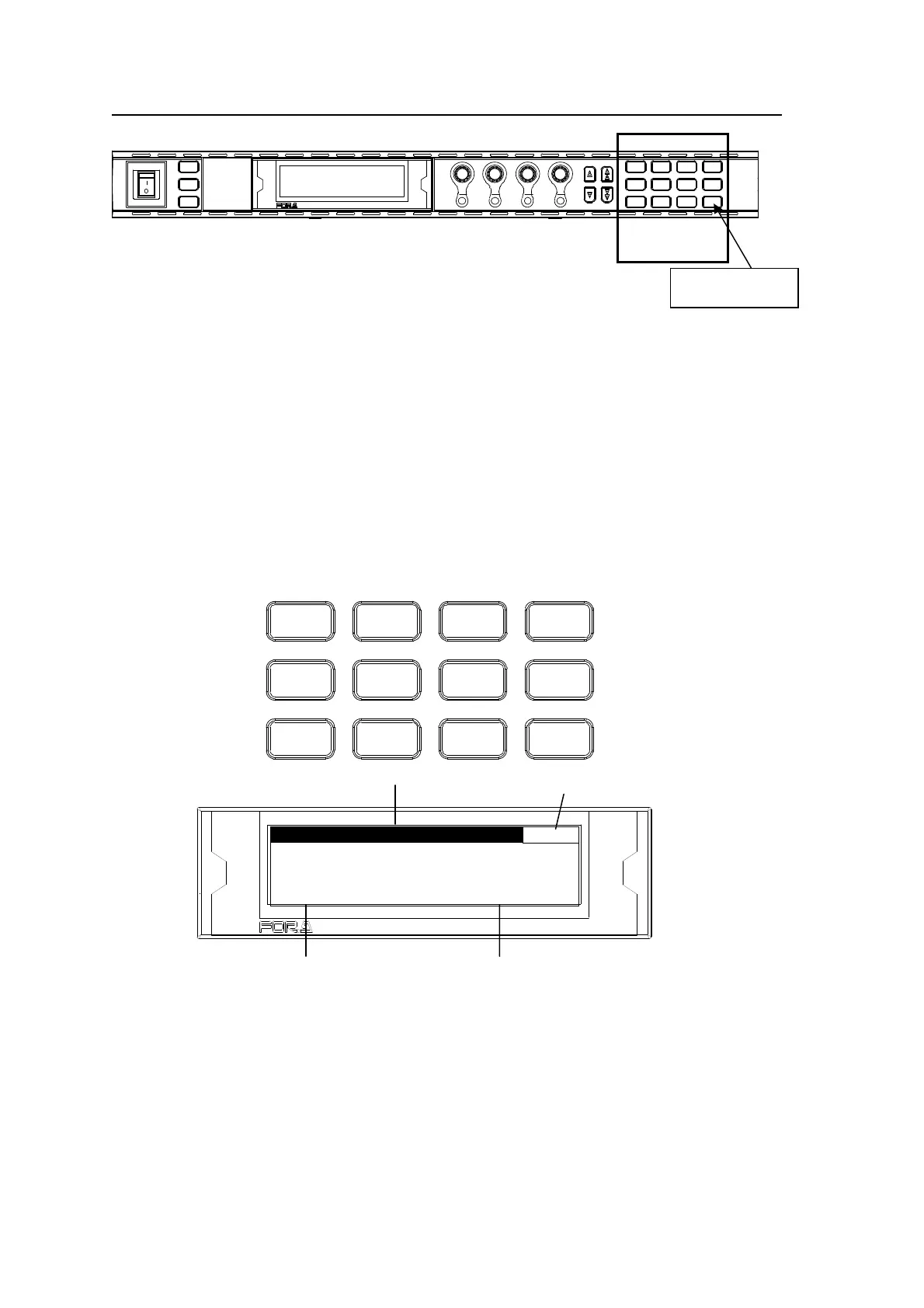

 Menu Buttons
VIDEO PROC AMP 1
VIDEO LEVEL : 100.0%
CHROMA LEVEL: 100.0%
SETUP/BLACK : 0.0%
HUE : 0.0°
In the example above, the PROCESS/SDI AUDIO button has been pressed, so that the
VIDEO PROC AMP menu is displayed.
