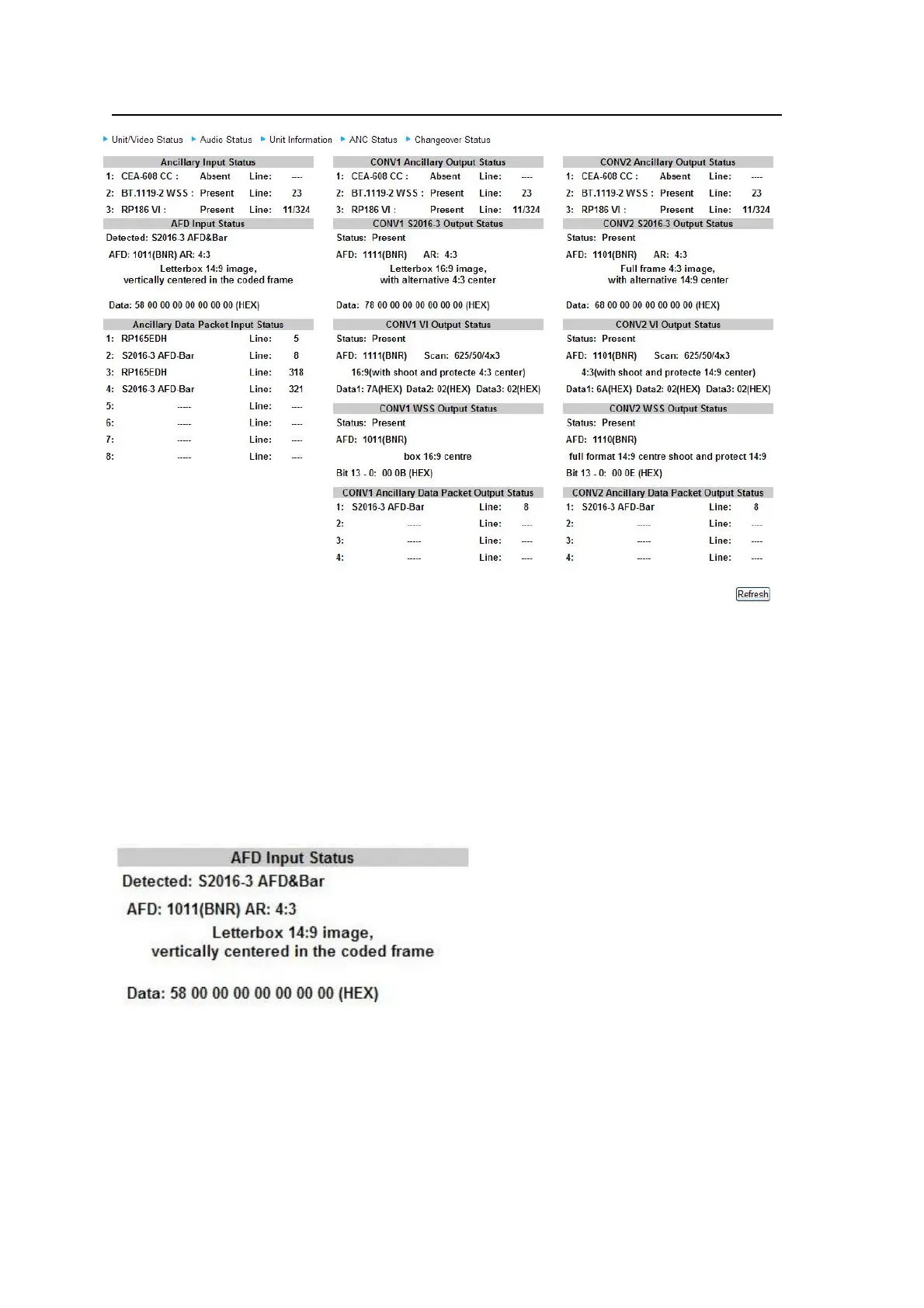

9-7-4. ANC Status
Click Refresh to update the settings.
Ancillary Input Stats
Displays the status of CEA608, WSS, and VI ancillary data detection.
The line number in which the ancillary data is in is displayed.
AFD Input Status
Displays the status of AFD detection in the input signal.
<When detecting AFD in input S2016-3 >
Detected: Displays as S2016-3 AFD& BAR.
AFD: Displays Active Format Description code in binary format.
AR: Didplays the aspect ratio as 4:3 or 16:9.
The detected AFD type is shown
Data: Displays the detected 8-byte data in hexadecimal format.
