FOR-A FA-9500 - Page 21

5

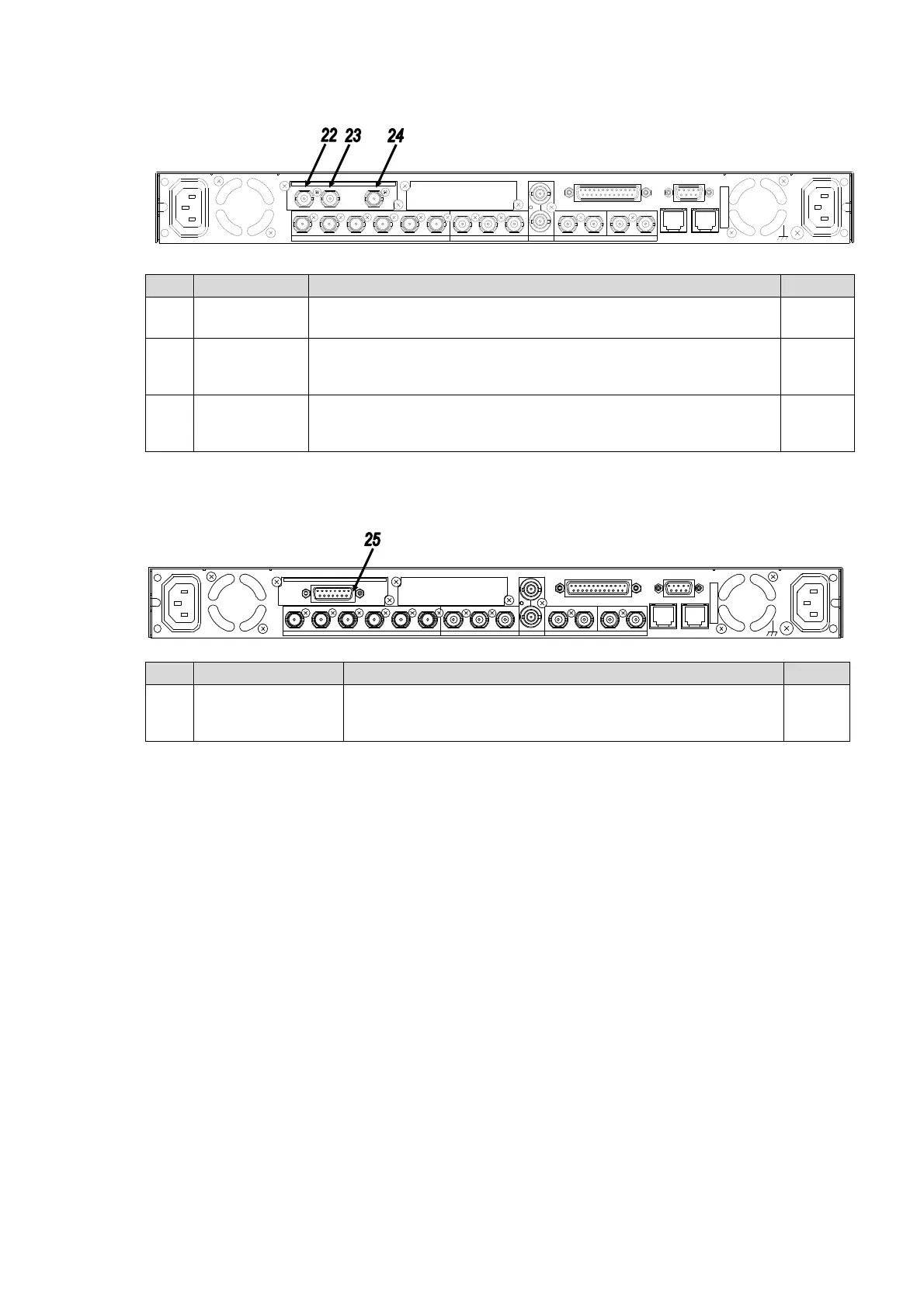

 FA-9500 with the FA-95D-D/DE-E options installed
No Name Description Ref.
22
Dolby E IN
(AUX IN)
Digital audio input connector on the FA-95D-D/DE-E option.
Used to input Dolby E and/or digital signals to the Dolby decoder.
6-9-2
23
Dolby E OUT
(AUX OUT)
Digital audio output connector on the FA-95D-D/DE-E option.
Used to output signals output from the Dolby decoder and/or Dolby
encoder.
6-9-1
24 REF IN
Reference signal input connector on the FA-95D-D/DE-E option.
Used to input reference signal (B.B. or tri-level sync) for the Dolby
decoder. 75 ohm terminated inside.
6-9-3
 FA-9500 with the FA-95AIO option installed
No Name Description Ref.
25
ANALOG
COMPONENT I/O
Analog component input/output connector on FA-95AIO
option.
Connect the supplied I/O cable.
16
AC100 - 240V 50/60 Hz IN 1
FAN2
SER. NO.
LAN2LAN1
REMOTE
DIGITAL AUDIO IN / OUT
7 / 85 / 63 / 41 / 2
ANALOG A UDIO
GENLOCK INCOMP OSITE
OUT2OUT1IN
B
OUT4OUT3IN 2OUT2OUT1
SDI
IN1
A
FAN1
AC100 - 240V 50/60 Hz IN2
OUTIN REF IN
Dolby E
AC100 - 240V 50/60 Hz IN 1
FAN2
SER . N O .
LAN2LAN1
REMOT E
D I GI T A L A U D I O I N / OU T
7 / 85 / 63 / 41 / 2
ANALOG AUDIO
GE NLOC K INCOMPOSITE
OUT2OU T1IN
B
OUT4OUT3IN2OUT2OU T1
SDI
IN1
A
FAN1
AC100 - 240V 50/60 Hz IN2
AN AL OG C O MPONEN T I/O
