124

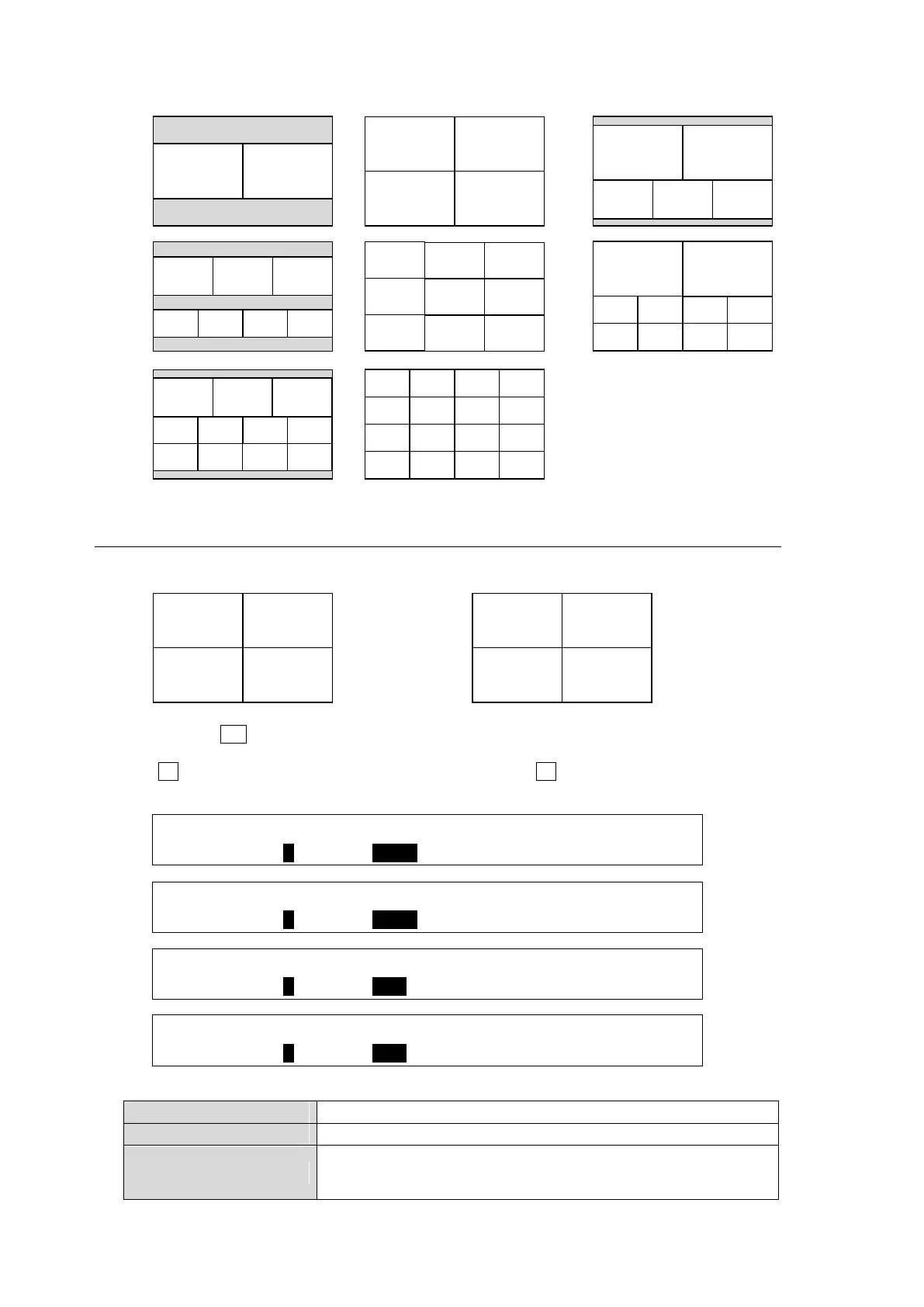

The available layout formats are 2, 4, 5, 7, 9, 10, 11 and 16-way as shown below.
13-3. Video Signal Mapping
Let's assign PGM, PVW, IN01 and IN02 video signals to the set quad screen as shown below.
(1) Double-press MV in the KEY/AUX bus block to display the [SETUP - OUTPUT - MV] menu.
(2) Go to PAGE 2.
(3) Turn F1 to select a screen number under SCREEN and F1 to select a video signal under
SIGNAL. Repeat this step for four video signals as shown below.
OUTPUT :SCREEN :SIGNAL : CHARA : : 2/7
MV : =1 : =IN01 : =SHORT: :
OUTPUT :SCREEN :SIGNAL : CHARA : : 2/7
MV : =2 : =IN02 : =SHORT: :
OUTPUT :SCREEN :SIGNAL : CHARA : : 2/7
MV : =3 : =PVW : =SHORT: :
OUTPUT :SCREEN :SIGNAL : CHARA : : 2/7
MV : =4 : =PGM : =SHORT: :
Available video signals
BLK(BLACK), STL1-STL2, STK1-STK2, CKFIL, CKKEY, MATT1,
MATT2, CLBR(Color bar), EFF1, EFF2, PGM, PVW, CLN,
AUX1-AUX8, CLOCK
